Airbag Control Module C2 - Black 13 Way

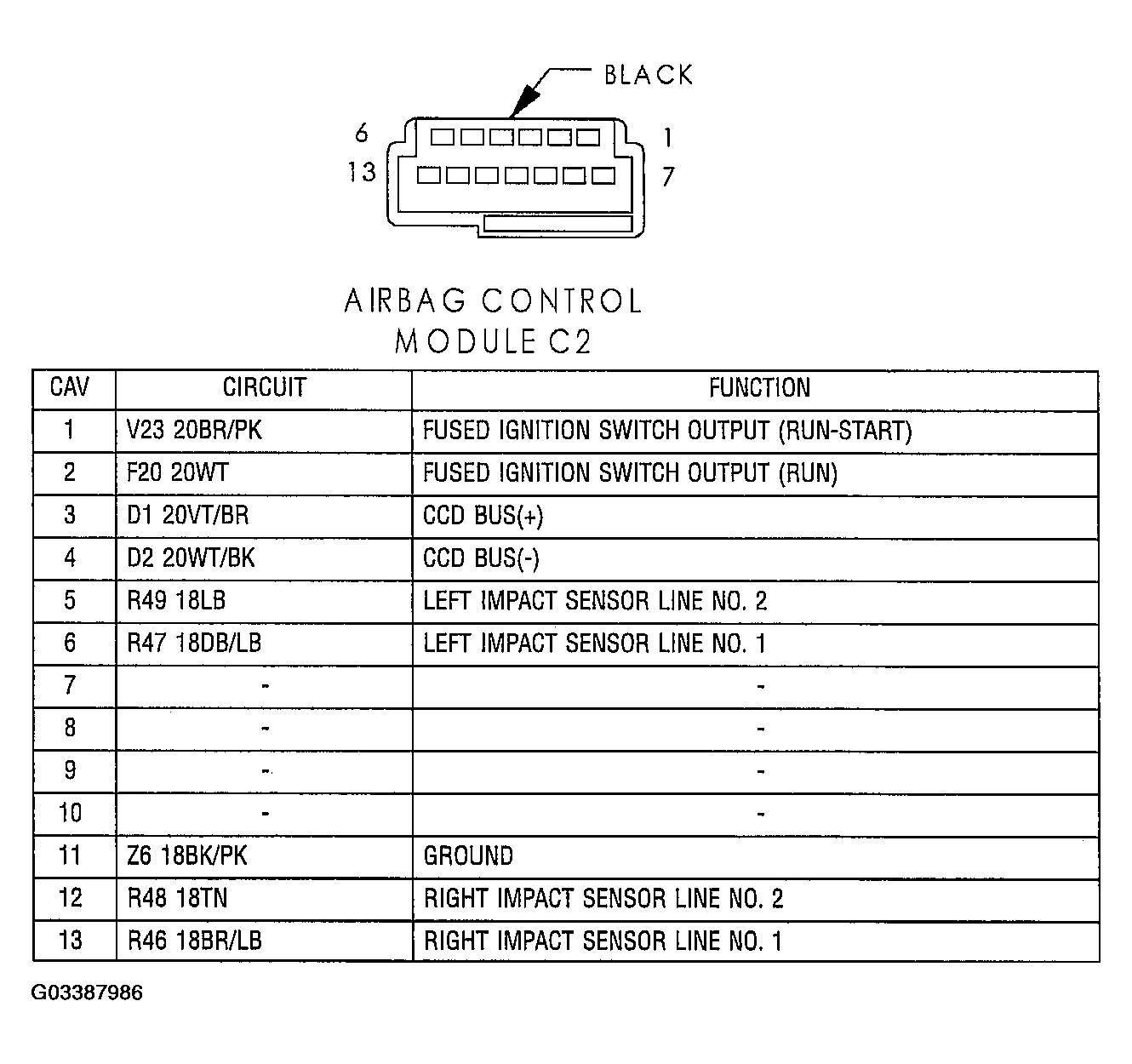

Fig 1: Identifying Airbag Control Module C2 Connector

G03387986

Courtesy of DAIMLERCHRYSLER CORP.
