Airbag Control Module C1 - Yellow 4 Way

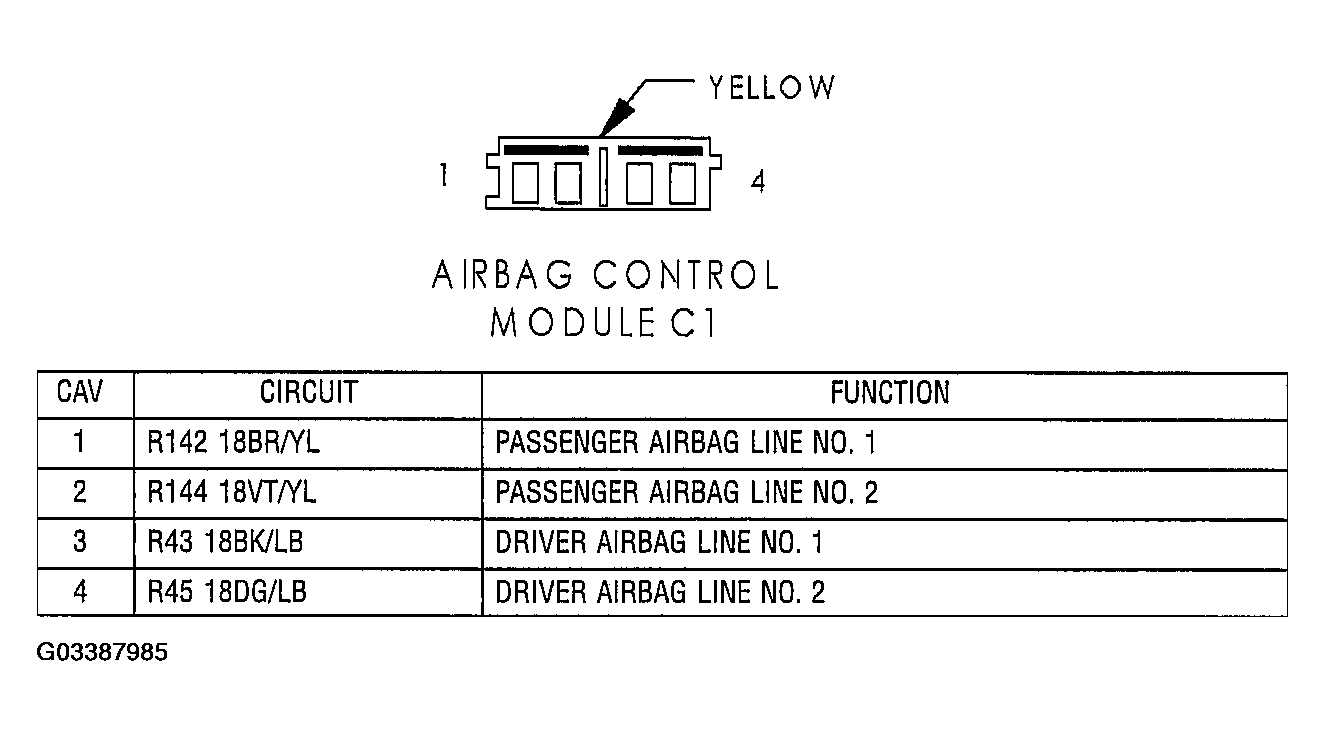

Fig 1: Identifying Airbag Control Module C1 Connector

G03387985

Courtesy of DAIMLERCHRYSLER CORP.
