Home >> Chrysler >> 2002 >> PT Cruiser Base, Standard >> Repair and Diagnosis >> Steering >> Rack & Pinion Power Steering System >> Column >> Specifications - Steering Column Fastener Torque

Specifications - Steering Column Fastener Torque

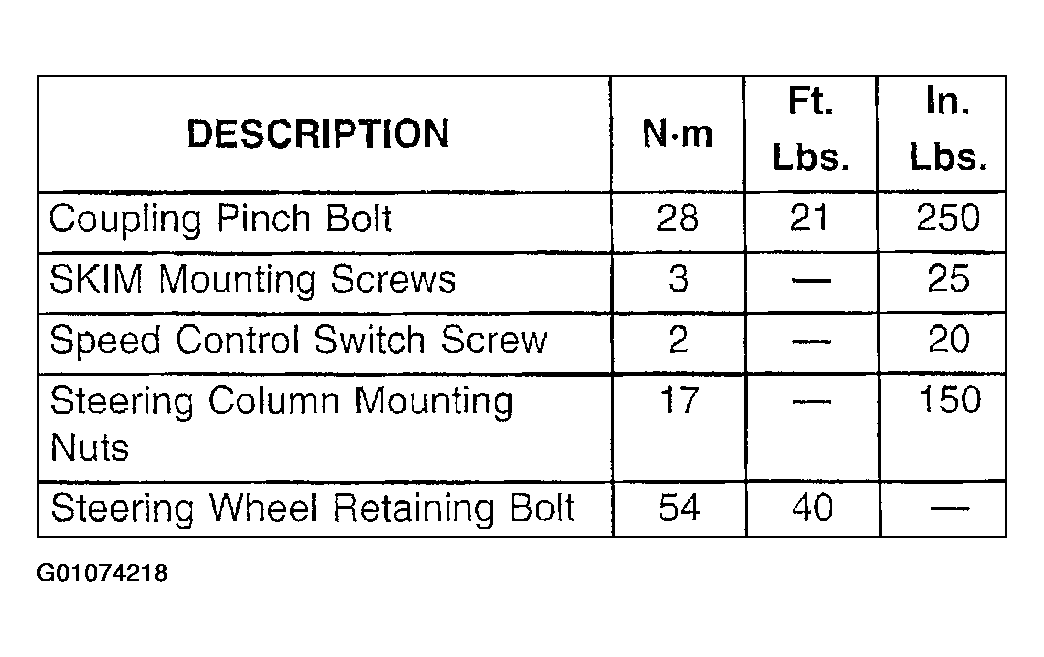

Fig 1: Steering Column Fastener Torque Specifications

G01074218

Courtesy of DAIMLERCHRYSLER CORP.
