Satellite Radio Receiver Connector End View

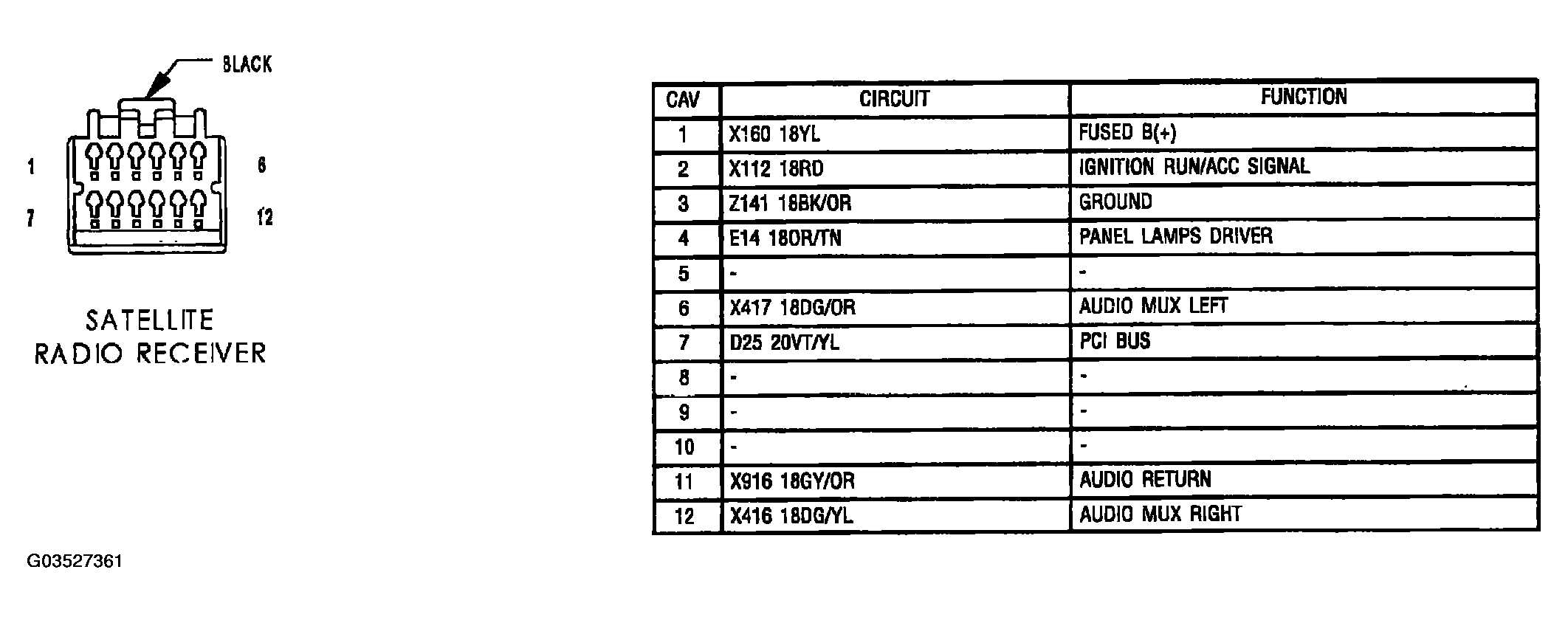

Fig 1: Satellite Radio Receiver Connector End View

G03527361

Courtesy of CHRYSLER GROUP, LLC
