Right Power Mirror Connector End View

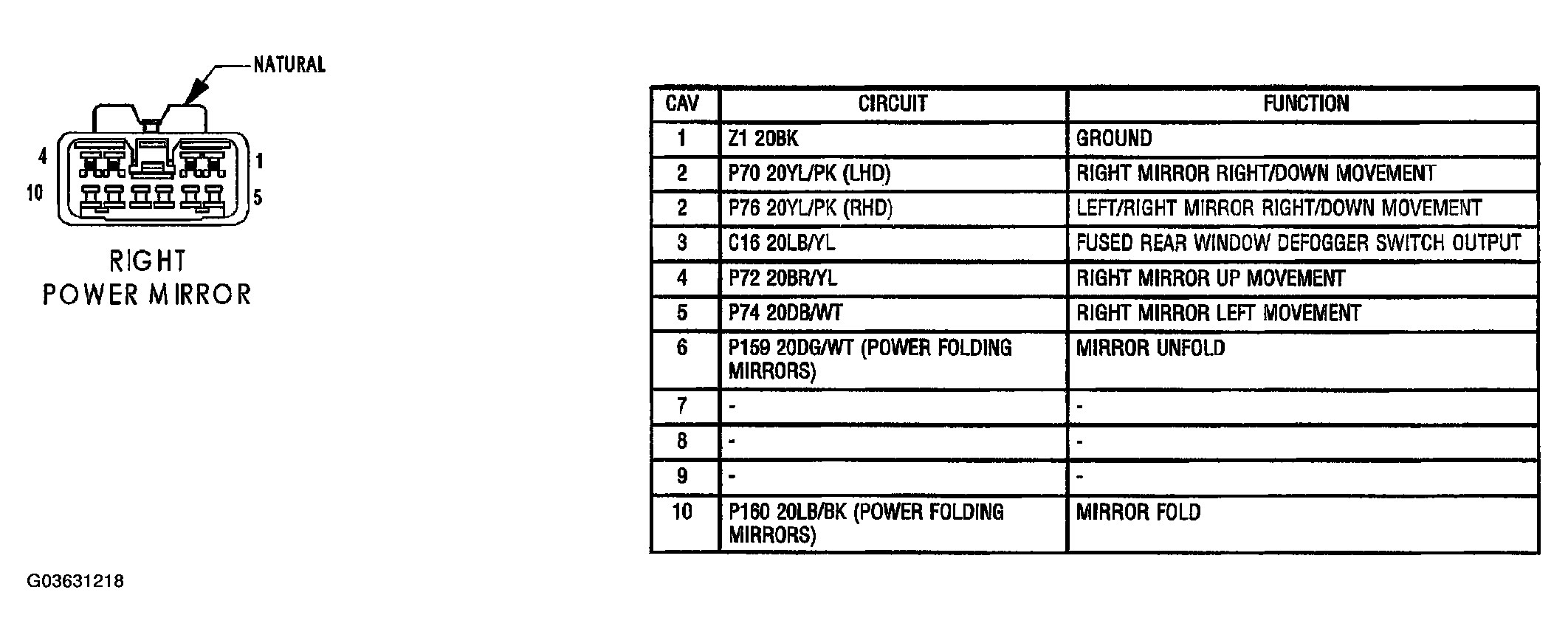

Fig 1: Right Power Mirror Connector End View

G03631218

Courtesy of CHRYSLER GROUP, LLC
