Rear Wiper Switch Connector End View

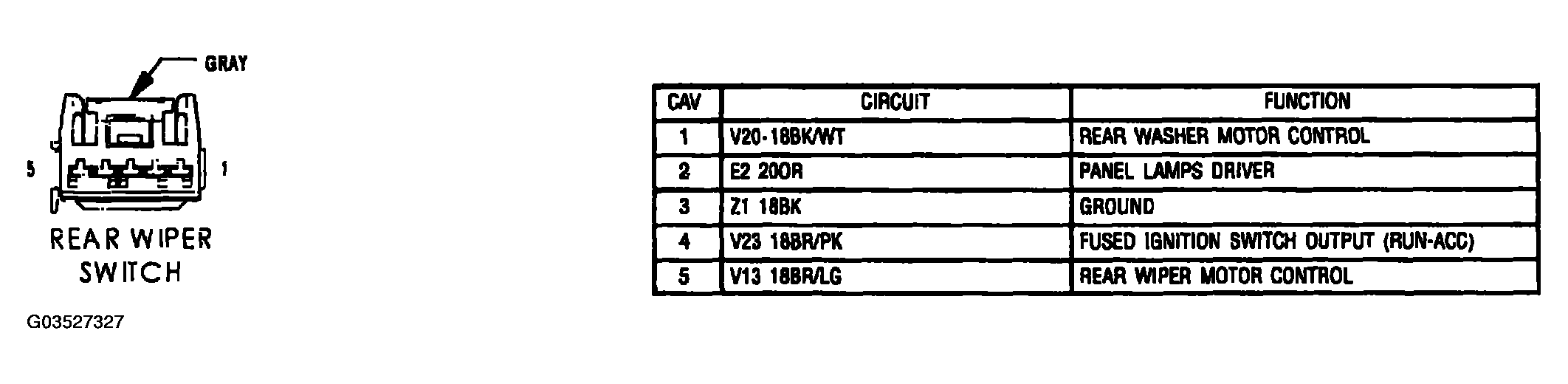

Fig 1: Rear Wiper Switch Connector End View

G03527327

Courtesy of CHRYSLER GROUP, LLC
