Rear View Mirror C1 Connector End View

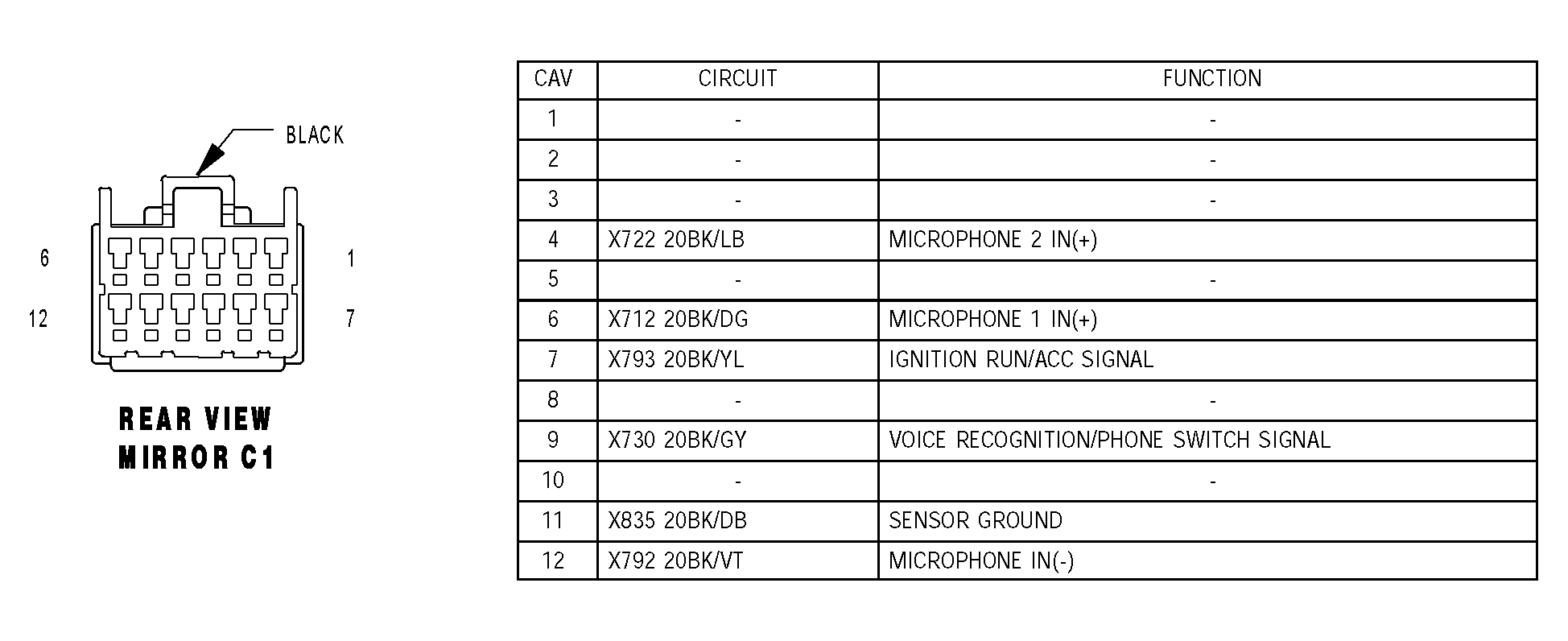

Fig 1: Rear View Mirror C1 Connector End View

G04549104

Courtesy of CHRYSLER GROUP, LLC
