ORC Airbag Control Module (Premium) Connector End View (C2)
ORC Airbag Control Module (Premium) Connector End View (C2)

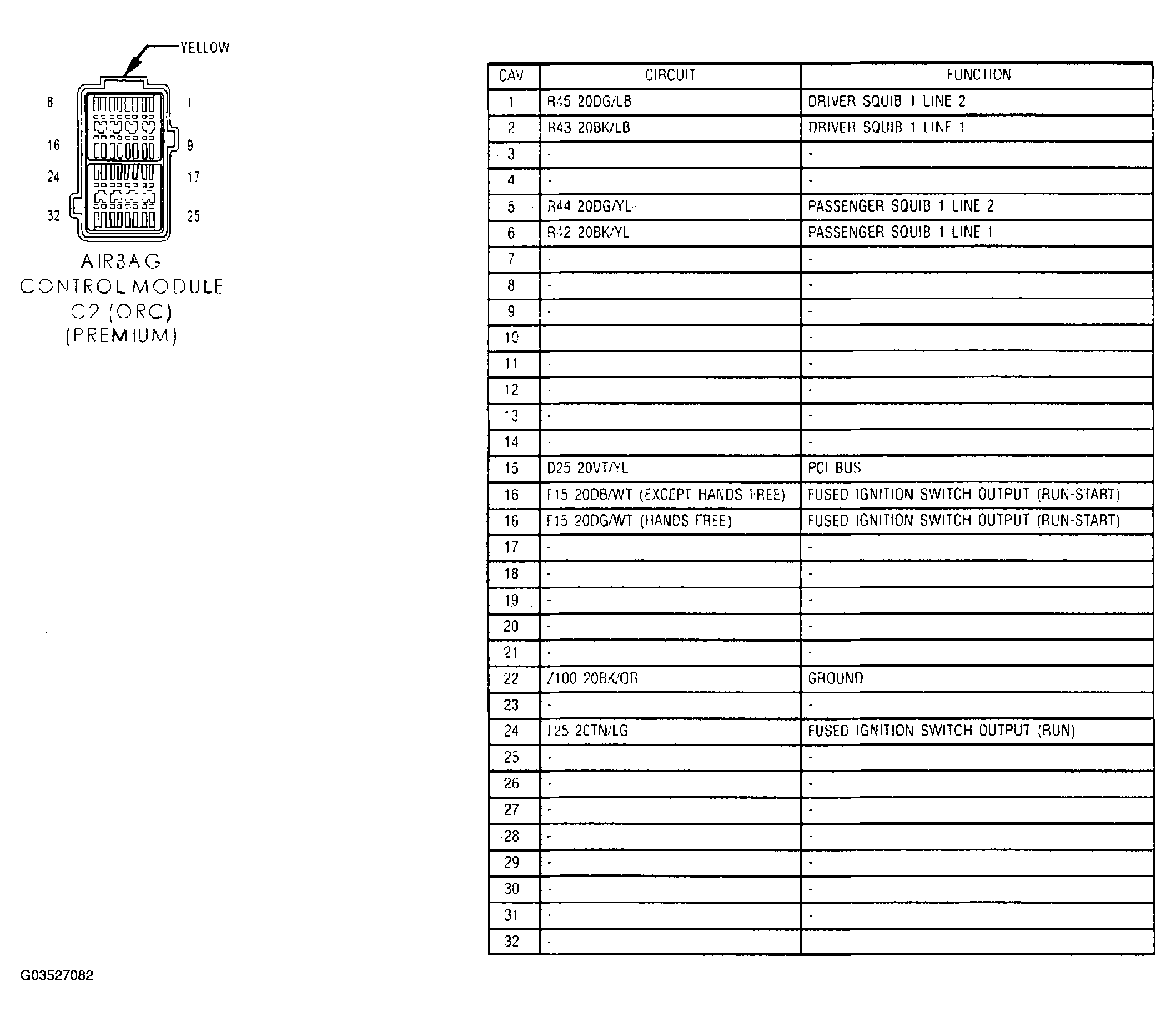

Fig 1: ORC Airbag Control Module (Premium) Connector End View (C2)
Courtesy of CHRYSLER GROUP, LLC
Courtesy of CHRYSLER GROUP, LLC
