Blower Motor Resistor Block Connector End View

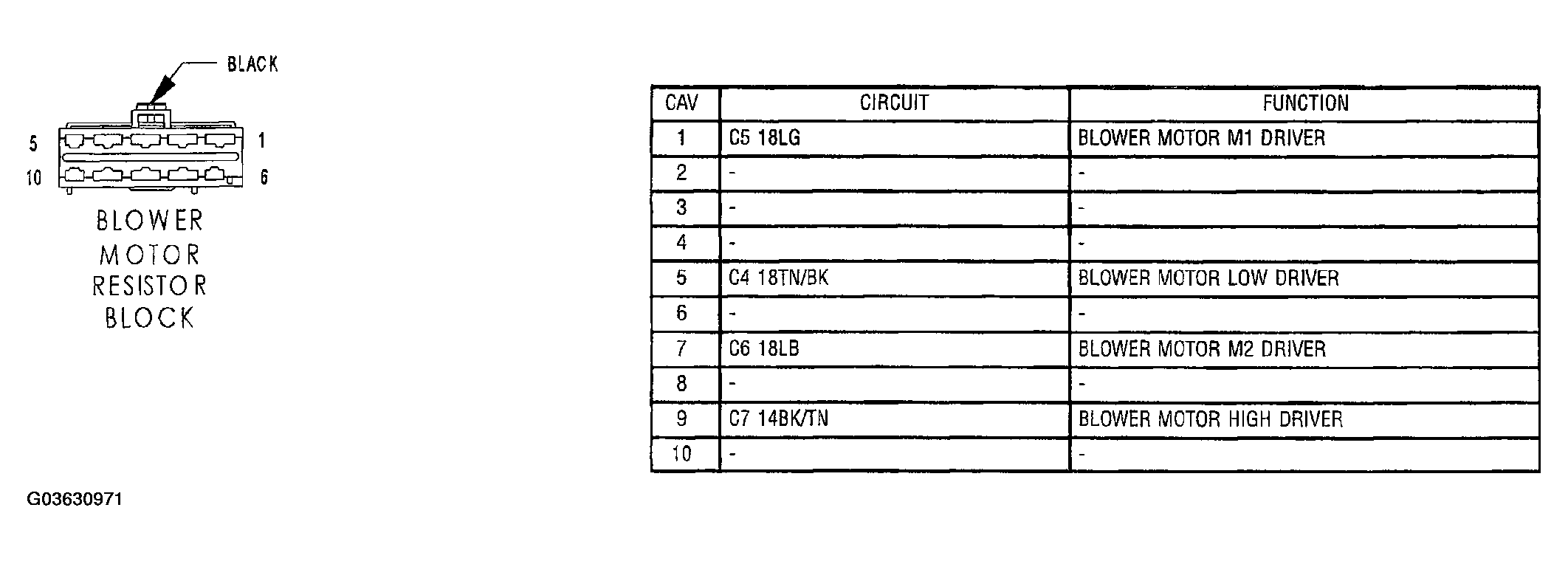

Fig 1: Blower Motor Resistor Block Connector End View

G03630971

Courtesy of CHRYSLER GROUP, LLC
