Coolant Recovery Container: Installation

  1. Install coolant recovery container and tighten fasteners to 4 N.m (35 INCH lbs). See Fig 2.
  2. To ensure proper vent hose routing, install vent hose clip on stud at dash panel. See Fig 2.
  3. Connect the MAP sensor connector.
  4. Position and install the power steering fluid reservoir bracket fasteners.
  5. Connect recovery hose to coolant outlet connector. See Fig 1.
  6. Fill container to proper level.

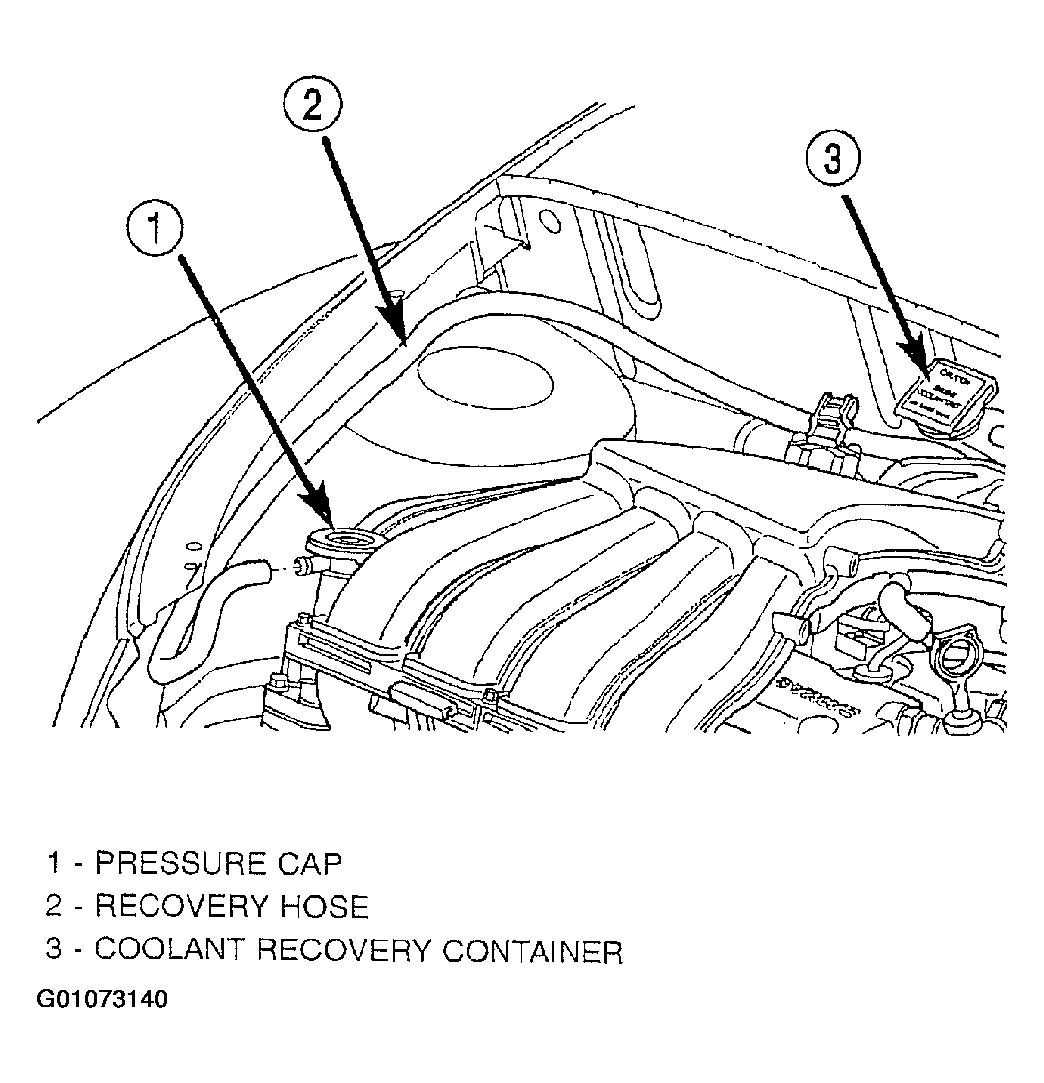

Fig 1: Installing Coolant Recovery System
G01073140Courtesy of DAIMLERCHRYSLER CORP.

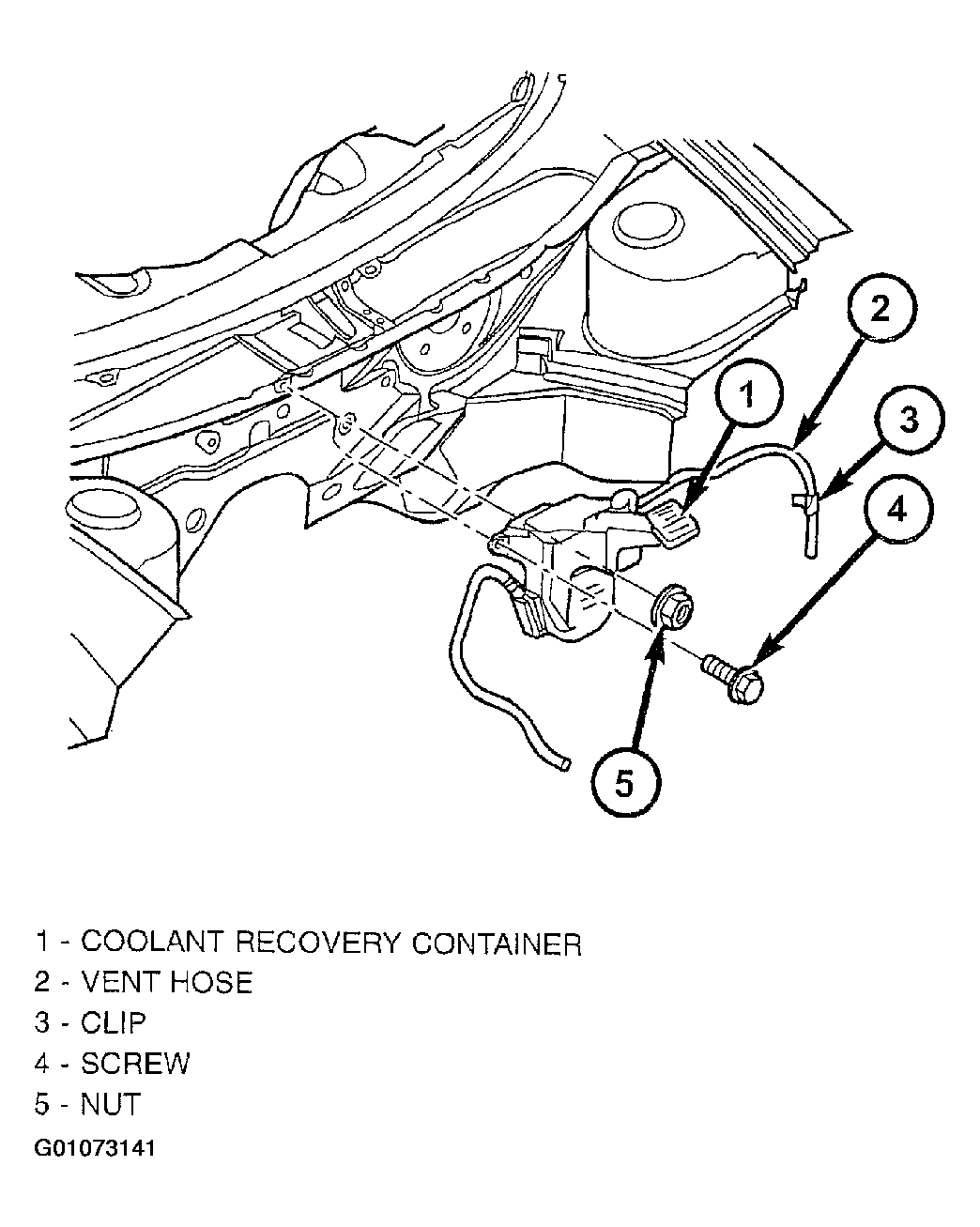

Fig 2: Installing Coolant Recovery Container
G01073141Courtesy of DAIMLERCHRYSLER CORP.
