Electronic Throttle Control Module (1.6L) Connector End View

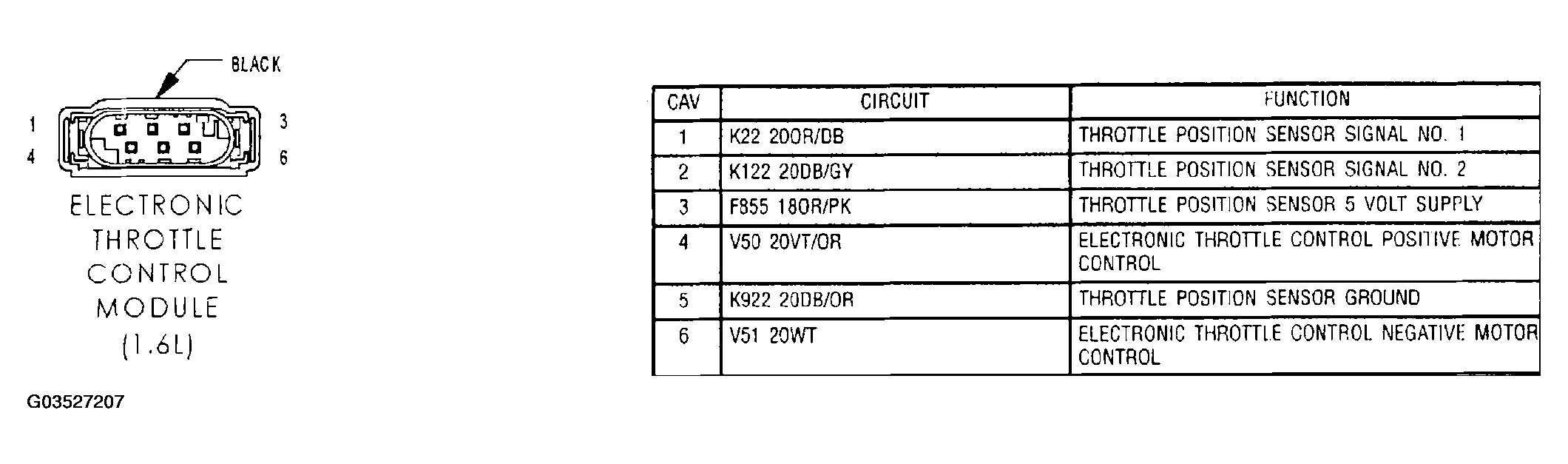

Fig 1: Electronic Throttle Control Module (1.6L) Connector End View

G03527207

Courtesy of CHRYSLER GROUP, LLC
