Transmission Range Sensor (EATX) Connector End View

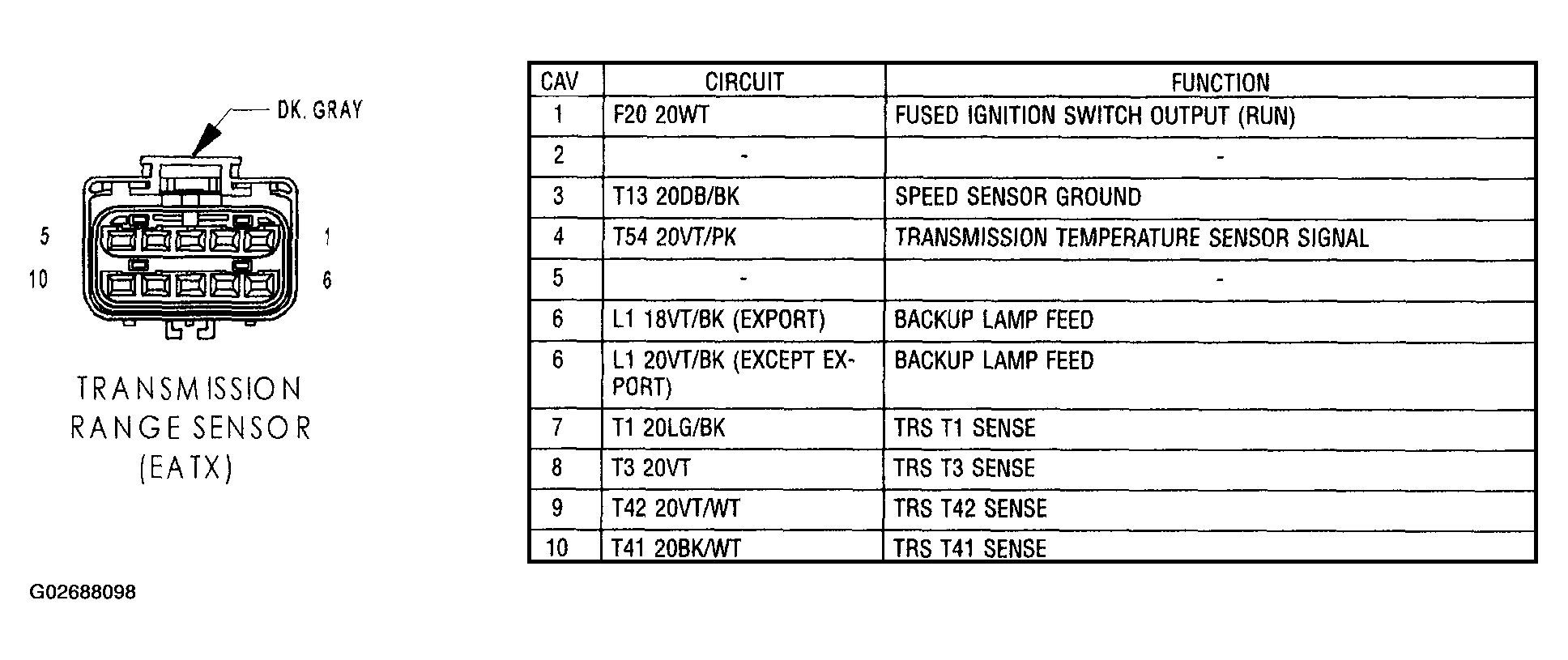

Fig 1: Transmission Range Sensor (EATX) Connector End View

G02688098

Courtesy of CHRYSLER GROUP, LLC
