Throttle Position Sensor (2.0L) Connector End View

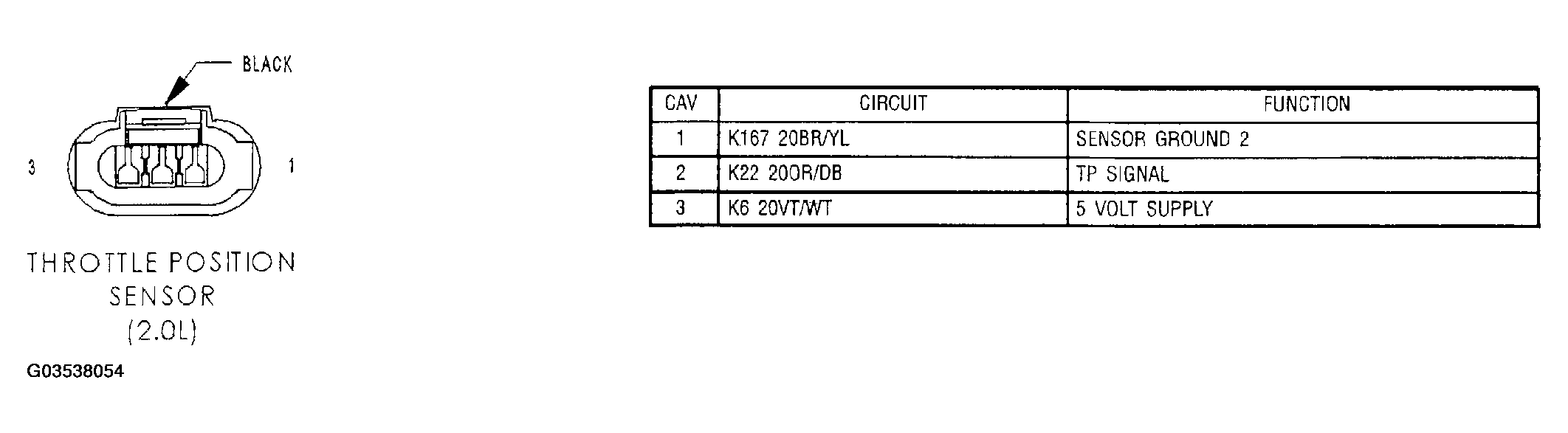

Fig 1: Throttle Position Sensor (2.0L) Connector End View

G03538054

Courtesy of CHRYSLER GROUP, LLC
