Right Rear Wheel Speed Sensor Connector End View

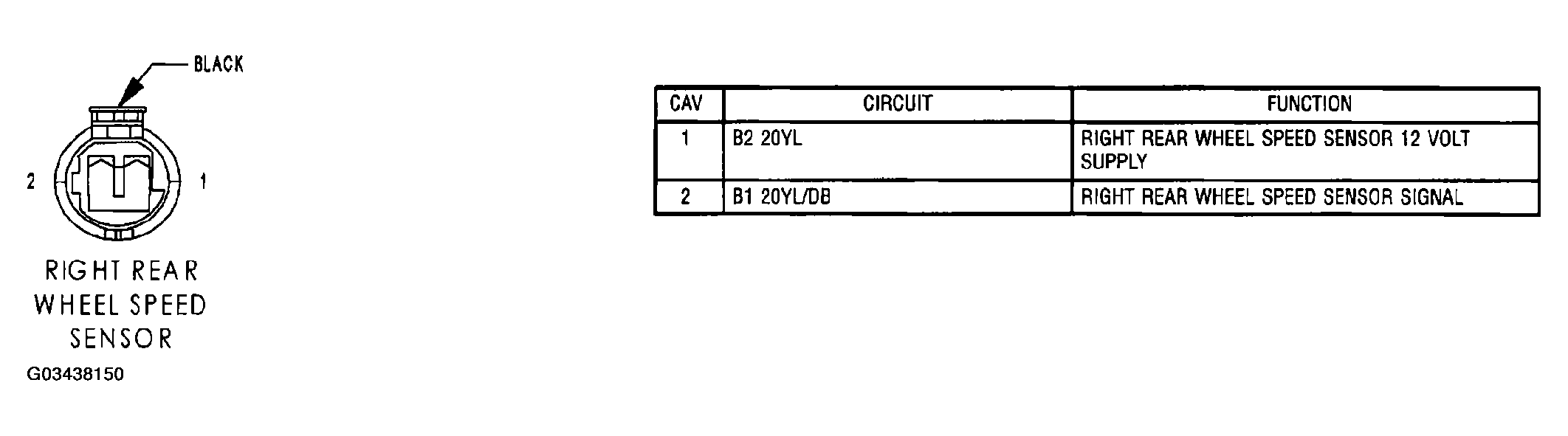

Fig 1: Right Rear Wheel Speed Sensor Connector End View

G03438150

Courtesy of CHRYSLER GROUP, LLC
