Right Door Lock Switch Connector End View

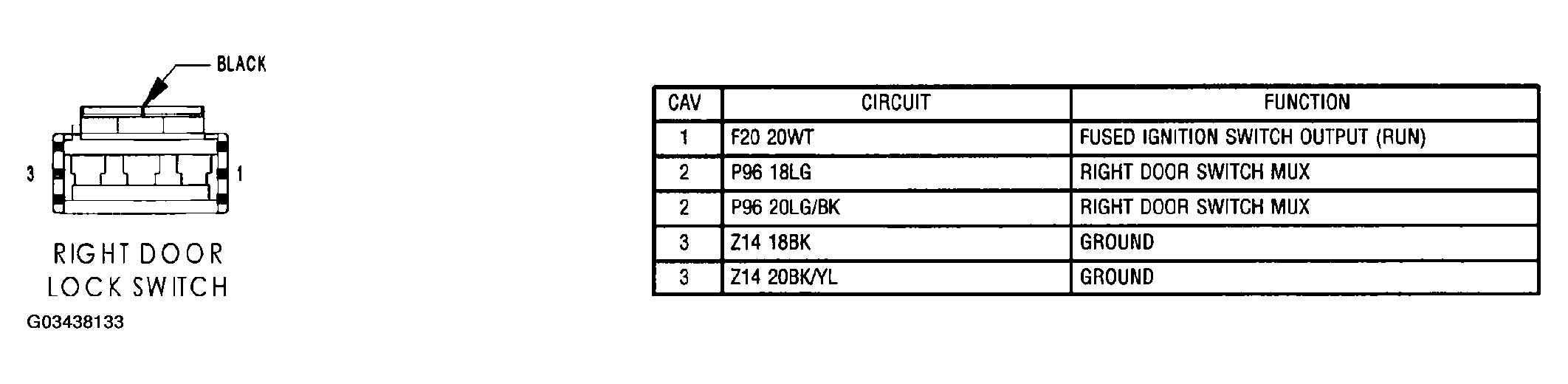

Fig 1: Right Door Lock Switch Connector End View

G03438133

Courtesy of CHRYSLER GROUP, LLC
