Instrument Cluster Connector End View

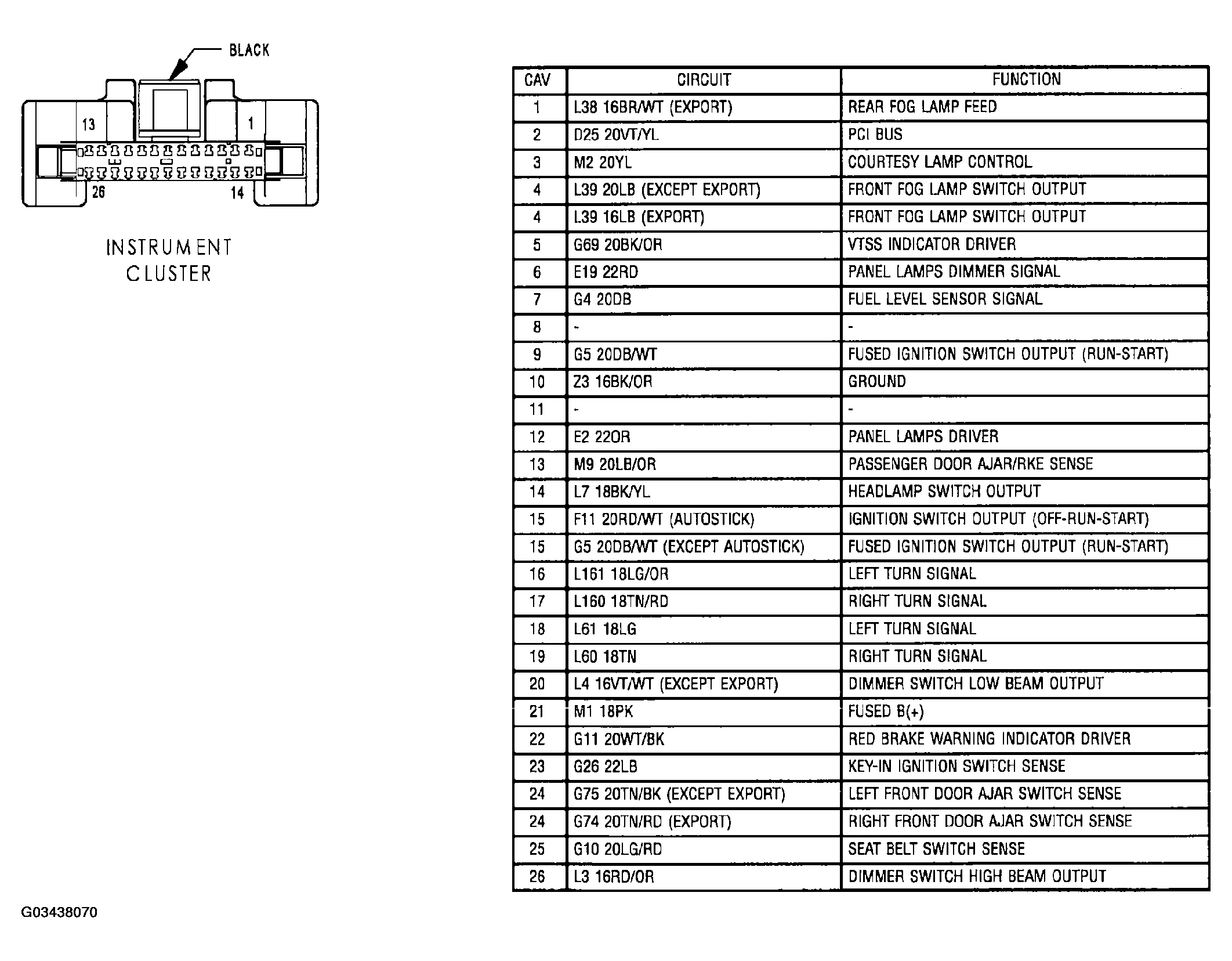

Fig 1: Instrument Cluster Connector End View

G03438070

Courtesy of CHRYSLER GROUP, LLC
