Inlet Air Temperature Sensor Connector End View

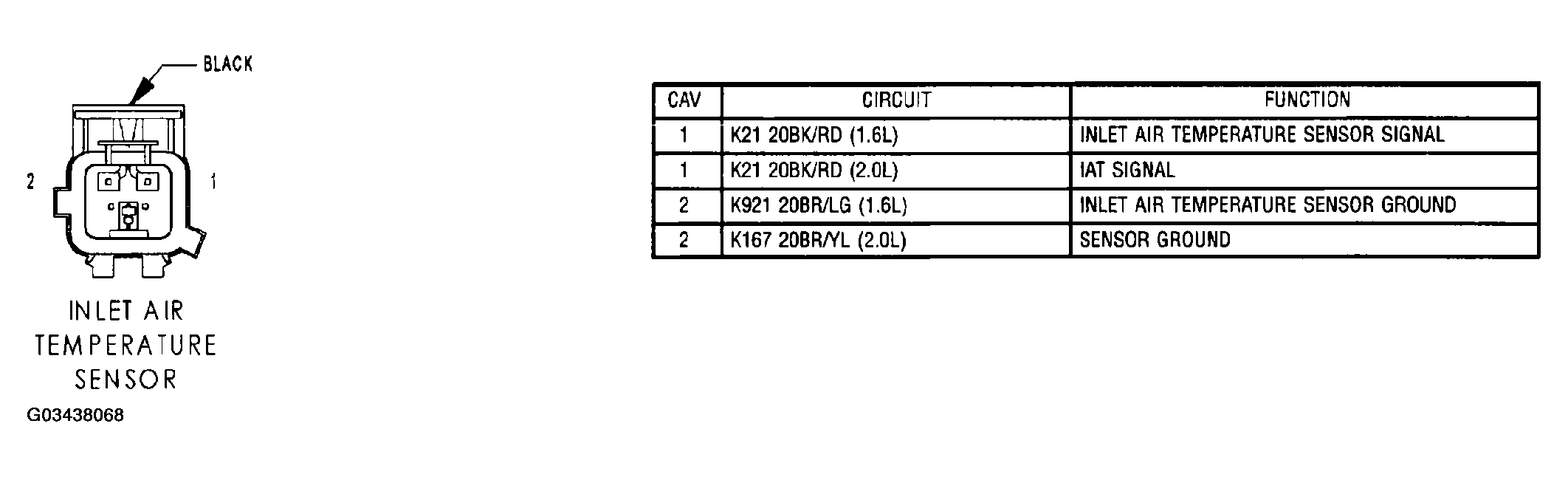

Fig 1: Inlet Air Temperature Sensor Connector End View

G03438068

Courtesy of CHRYSLER GROUP, LLC
