Engine Coolant Temperature Sensor (1.6L) Connector End View

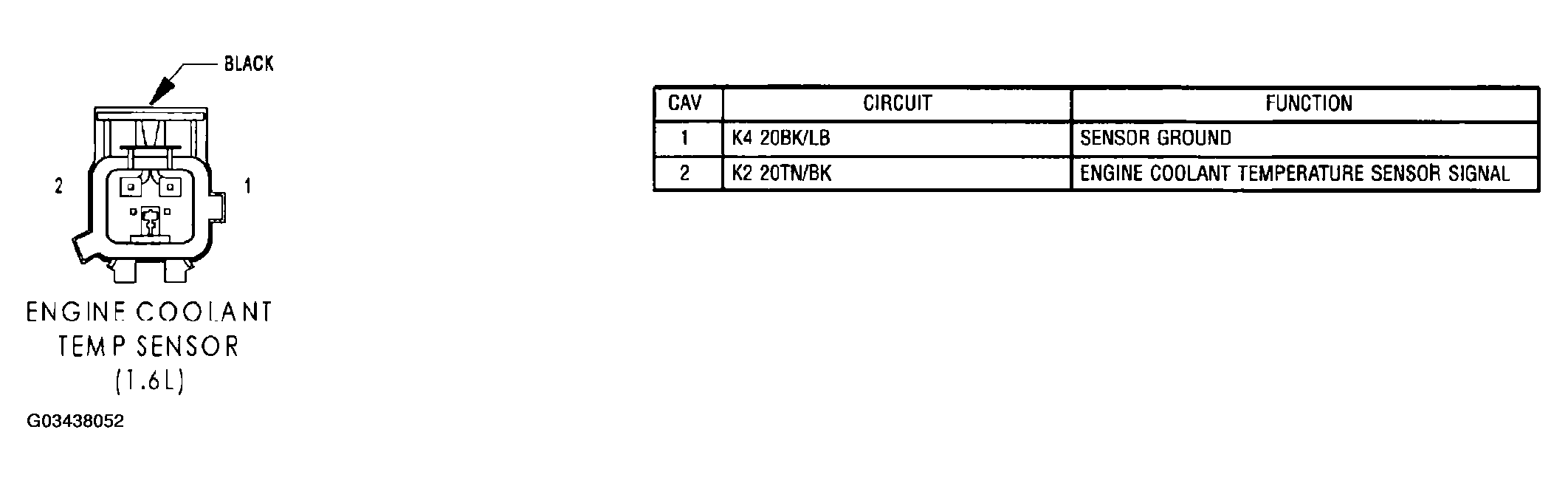

Fig 1: Engine Coolant Temperature Sensor (1.6L) Connector End View

G03438052

Courtesy of CHRYSLER GROUP, LLC
