Driver Power Window Switch Connector End View (C1)

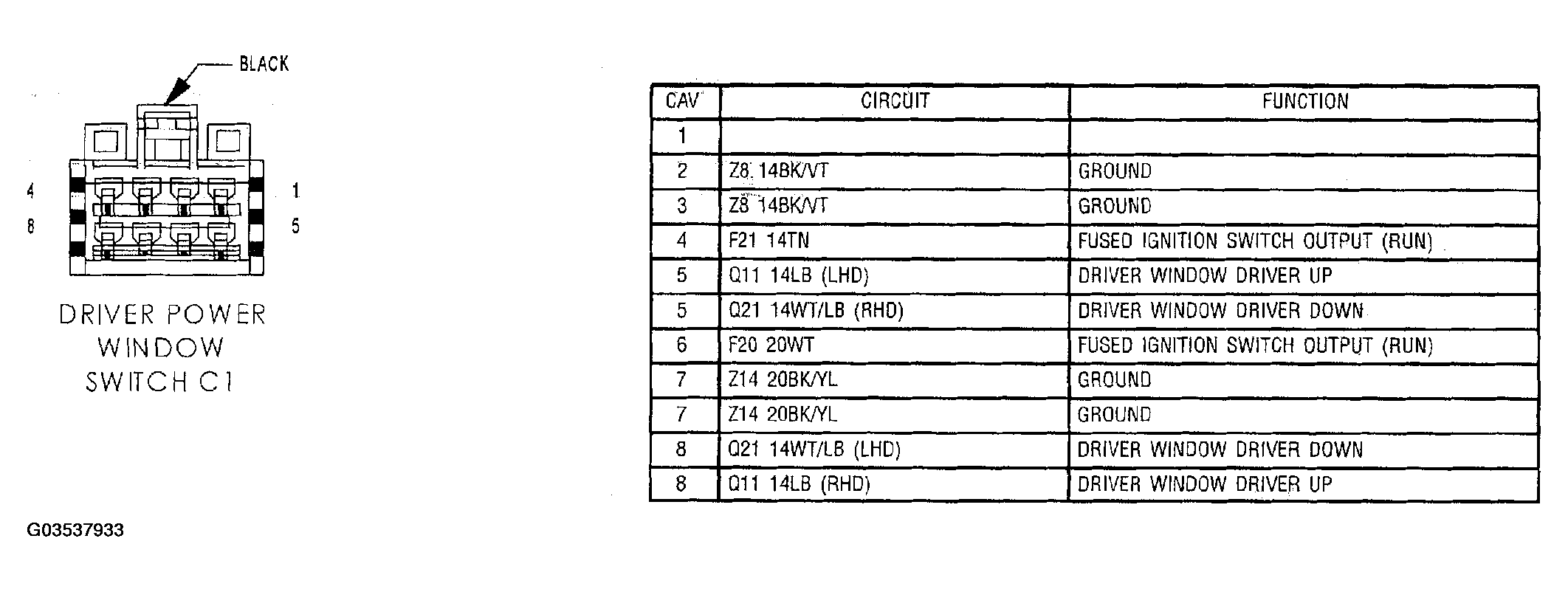

Fig 1: Driver Power Window Switch Connector End View (C1)

G03537933

Courtesy of CHRYSLER GROUP, LLC
