1/2 HO2S Connector End View

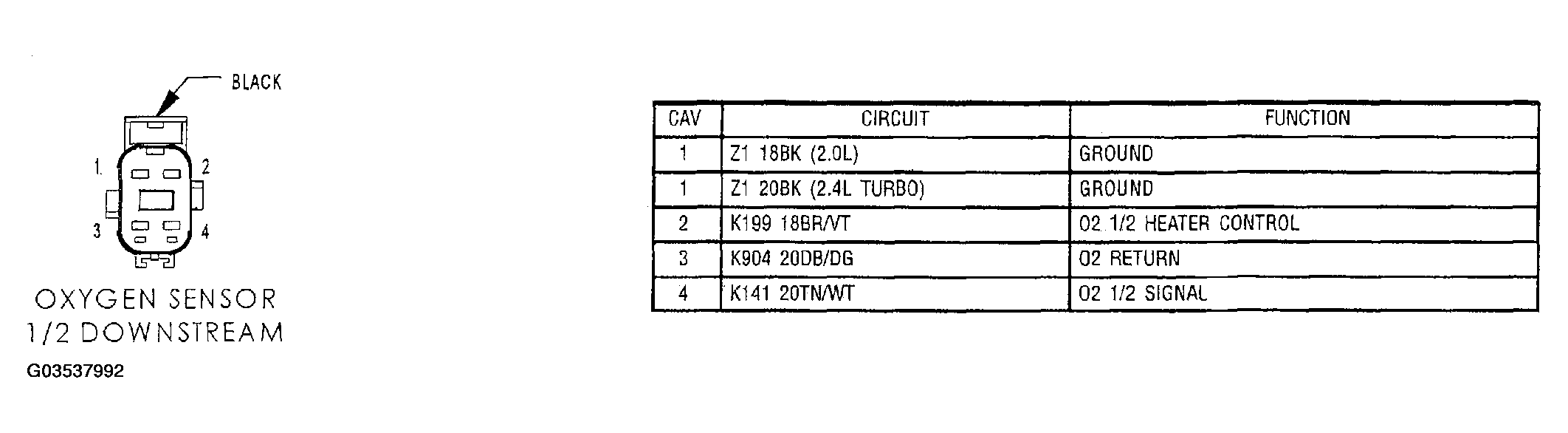

Fig 1: 1/2 HO2S Connector End View
G03537992Courtesy of CHRYSLER GROUP, LLC


Fig 1: 1/2 HO2S Connector End View
G00030269Courtesy of CHRYSLER GROUP, LLC
