Radio (Except Base) Connector End View (C1)

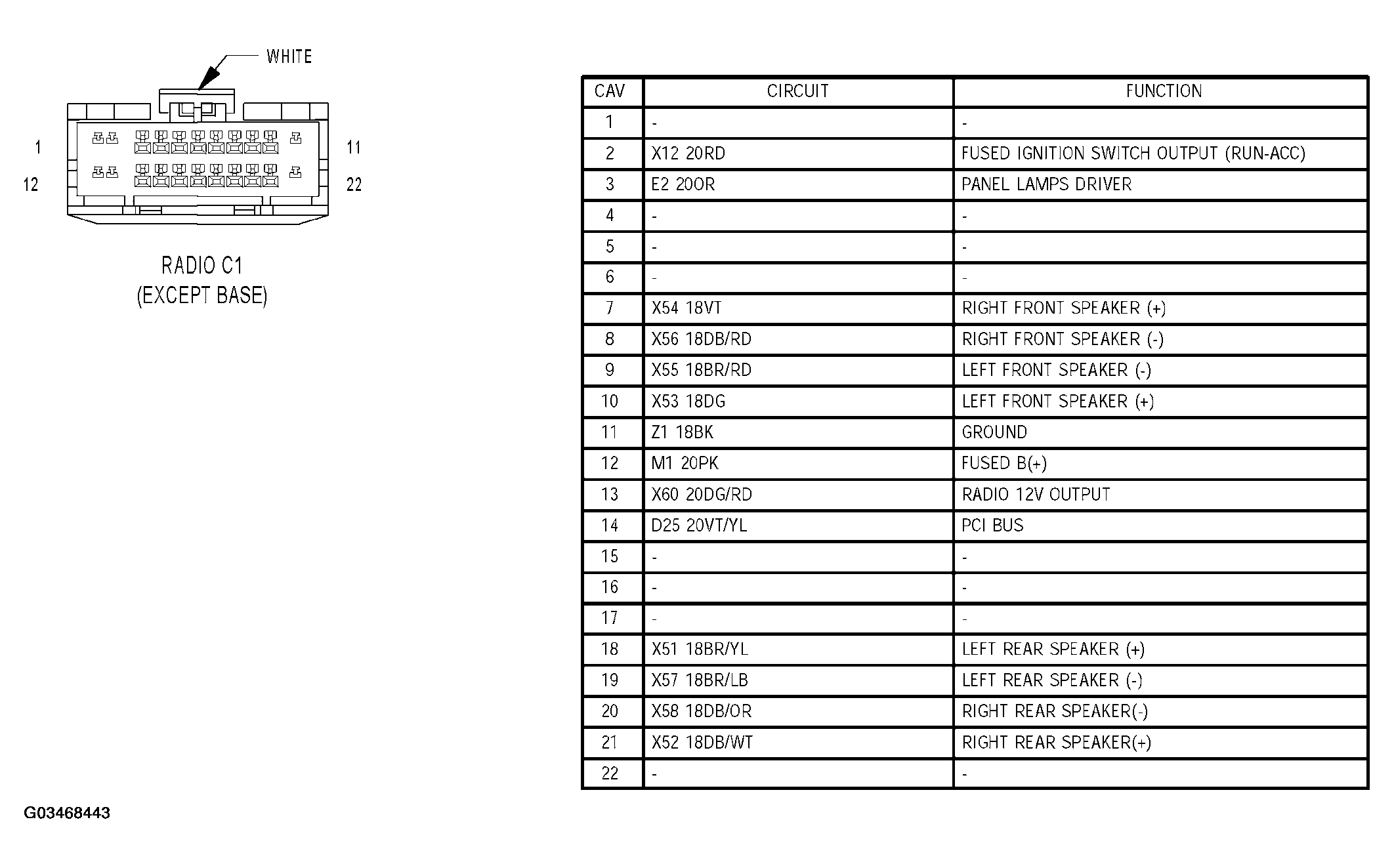

Fig 1: Radio (Except Base) Connector End View (C1)

G03468443

Courtesy of CHRYSLER GROUP, LLC
