Radiator Fan Motor 2 (Except 2.7L Base) Connector End View

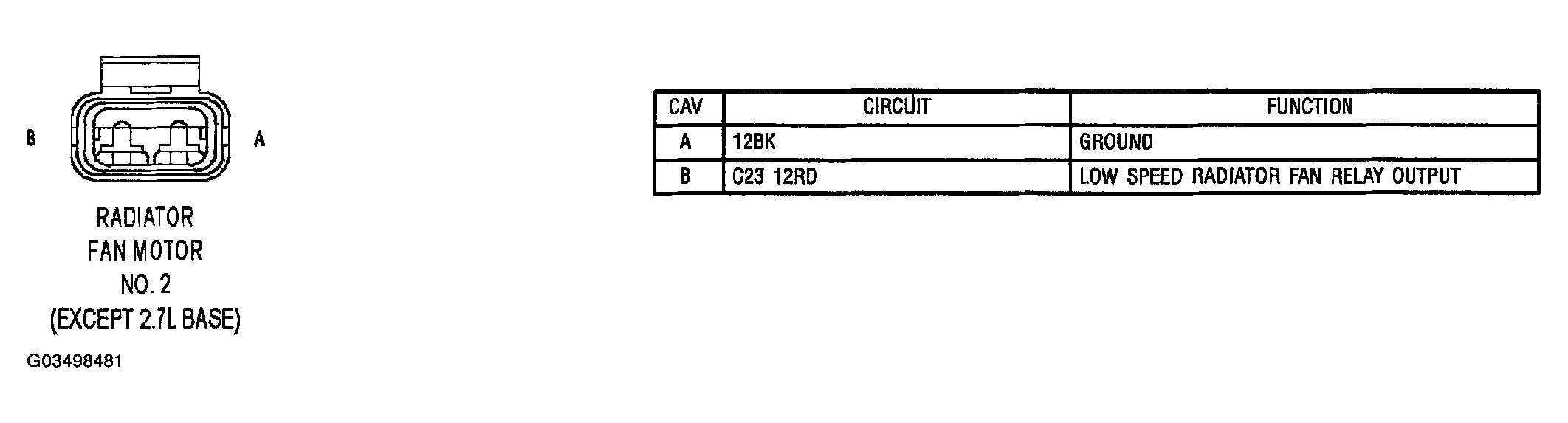

Fig 1: Radiator Fan Motor 2 (Except 2.7L Base) Connector End View

G03498481

Courtesy of CHRYSLER GROUP, LLC
