Front Wiper Motor Connector End View

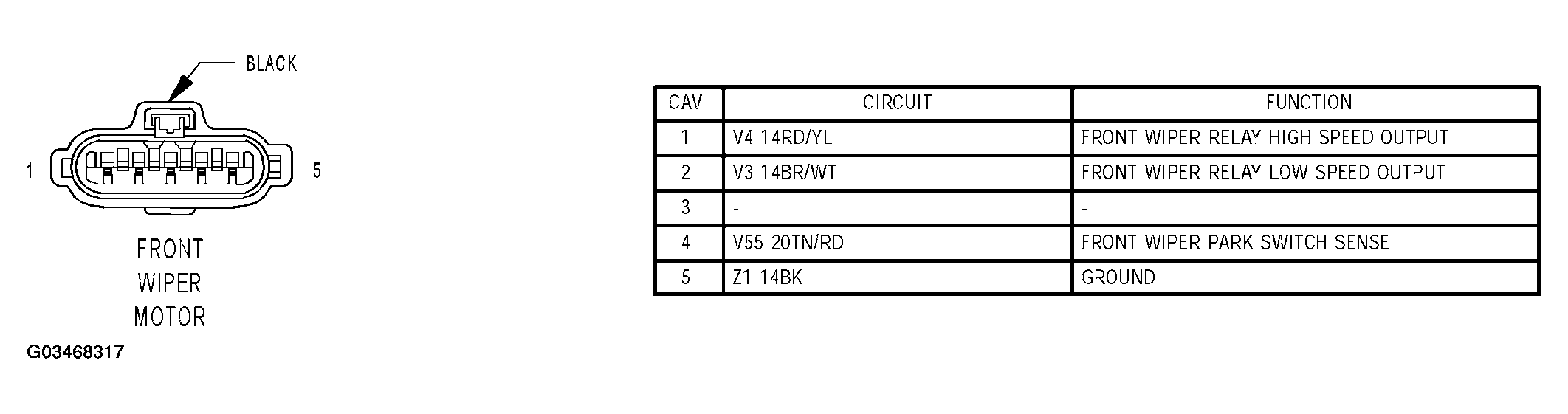

Fig 1: Front Wiper Motor Connector End View

G03468317

Courtesy of CHRYSLER GROUP, LLC
