CD Changer Radio Connector End View (C2)

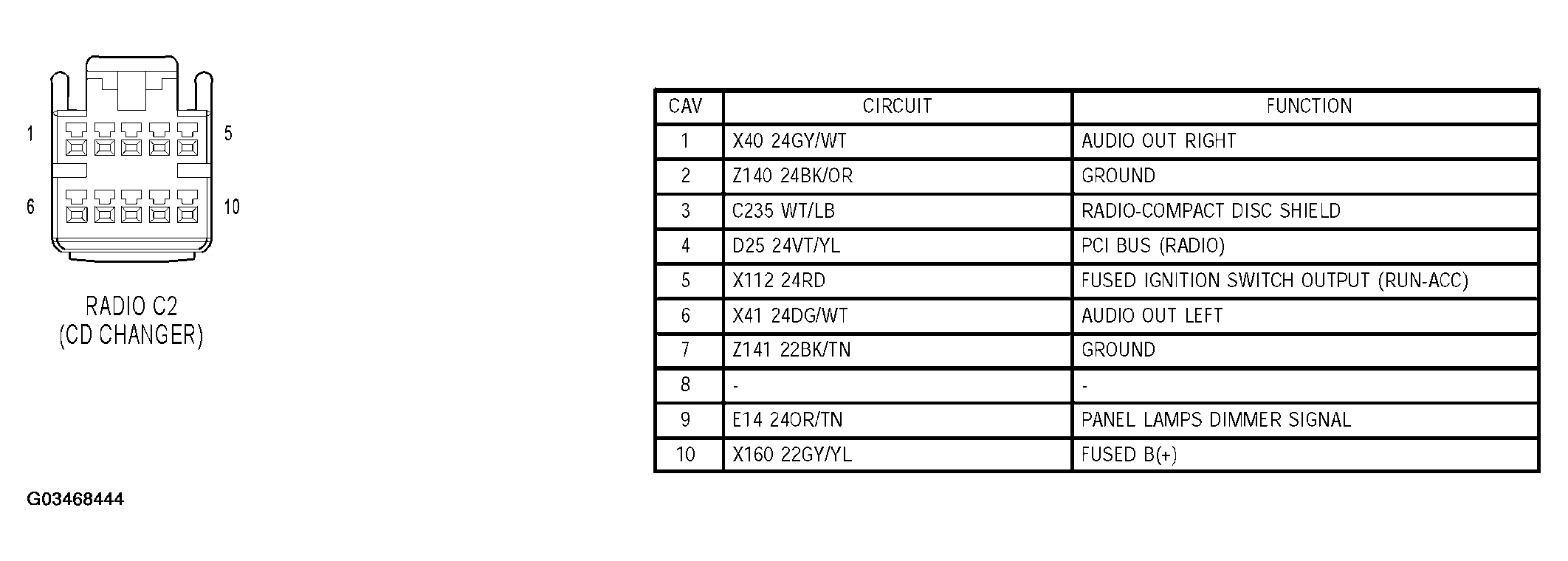

Fig 1: CD Changer Radio Connector End View (C2)

G03468444

Courtesy of CHRYSLER GROUP, LLC
