Possible Causes

Conditions For Operation Of The Decklid Release
Fuse Block Fuse No. 3 Open
Fuse No. 3 Battery Positive Input Open
Fused Battery Positive Circuit From Fuse No. 3 Open
Decklid Release Relay
Fused Battery Positive Circuit Open
Decklid Release Switch
Decklid Release Switch Output Circuit Open
Decklid Release Relay Output Circuit Open
Ground Circuit Open
Decklid Release Solenoid/Ajar Switch Open
Body Control Module

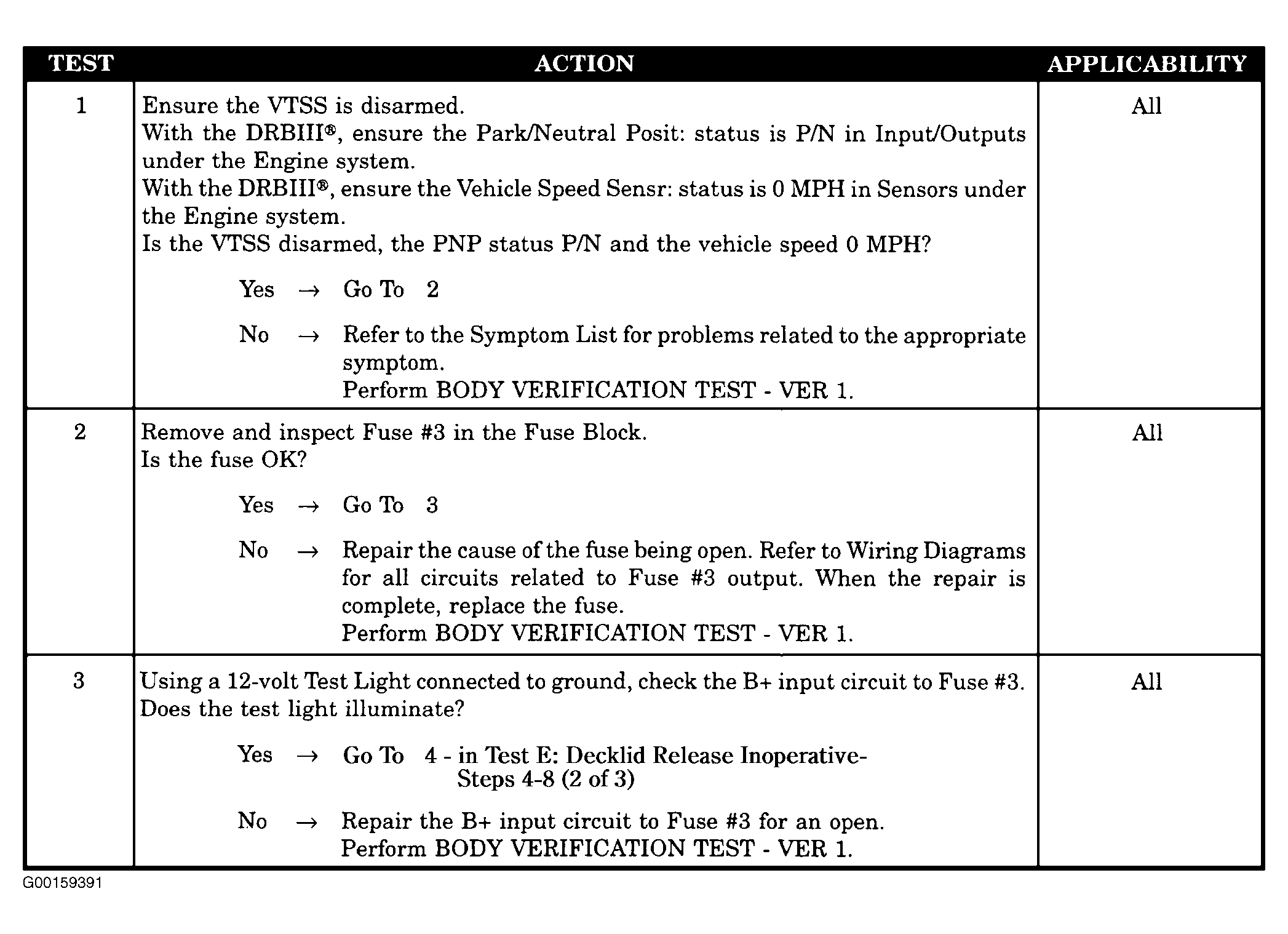

Fig 1: Test E: Decklid Release Inoperative - Steps 1-3 (1 Of 3)

G00159391

Courtesy of CHRYSLER CORP.

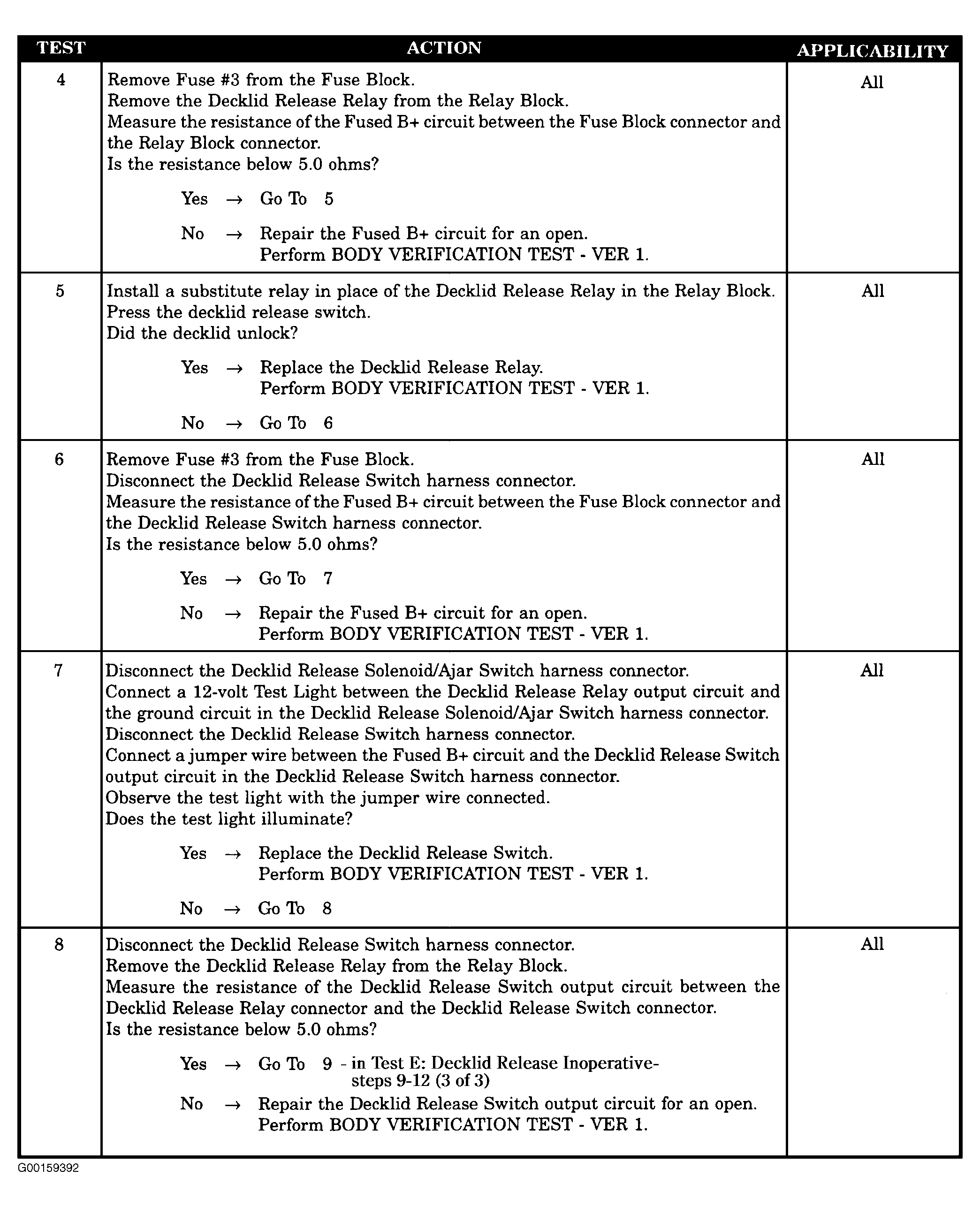

Fig 2: Test E: Decklid Release Inoperative - Steps 4-8 (2 Of 3)

G00159392

Courtesy of CHRYSLER CORP.

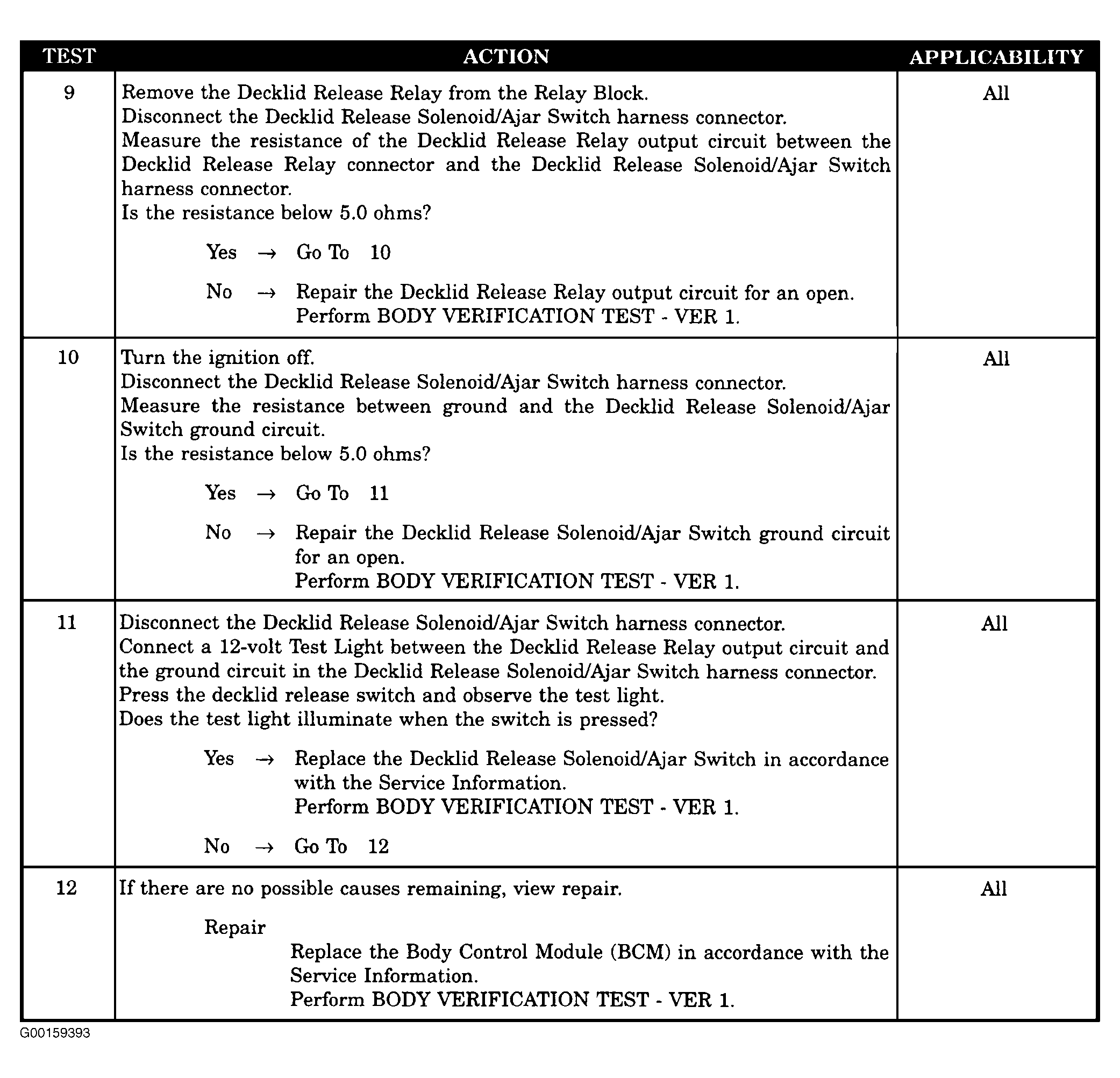

Fig 3: Test E: Decklid Release Inoperative - Steps 9-12 (3 Of 3)

G00159393

Courtesy of CHRYSLER CORP.
