Test D: Both Doors Fail To Lock/Unlock From One Switch: Notes

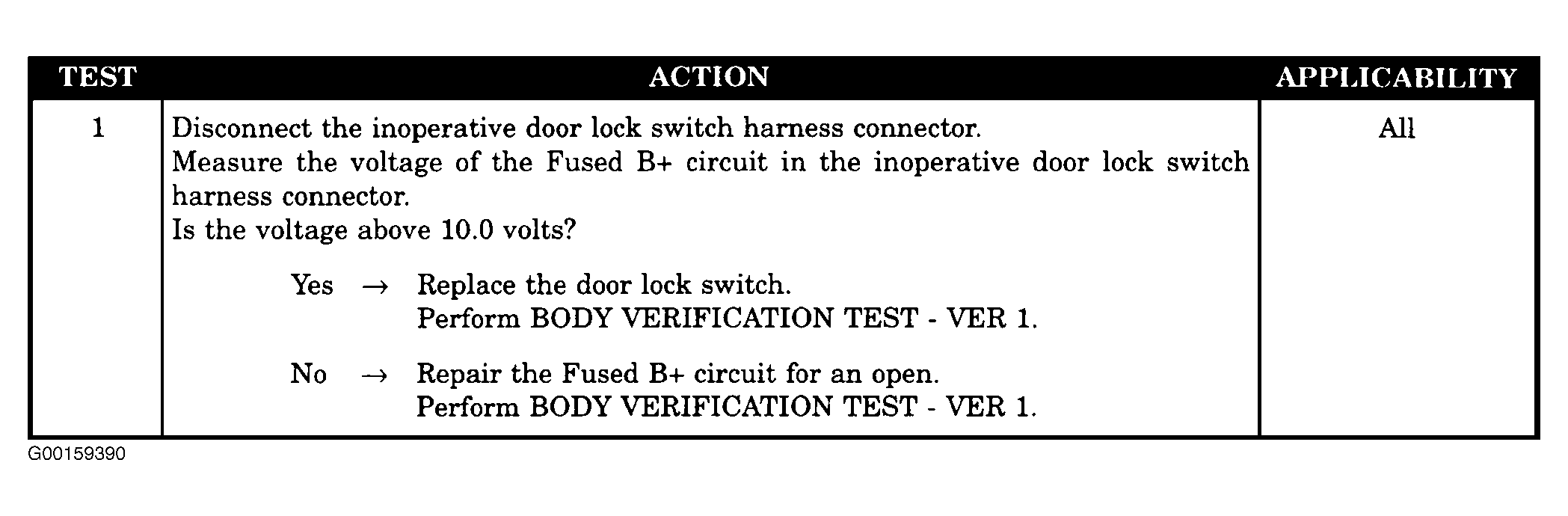

For both doors fail to lock/unlock from one switch diagnostic procedures, see Figure. For component location, see COMPONENT LOCATIONS . For connector terminal identification, see CONNECTOR IDENTIFICATION . For circuit and wiring diagrams, see WIRING DIAGRAMS .
