Front Wiper On/Off Relay

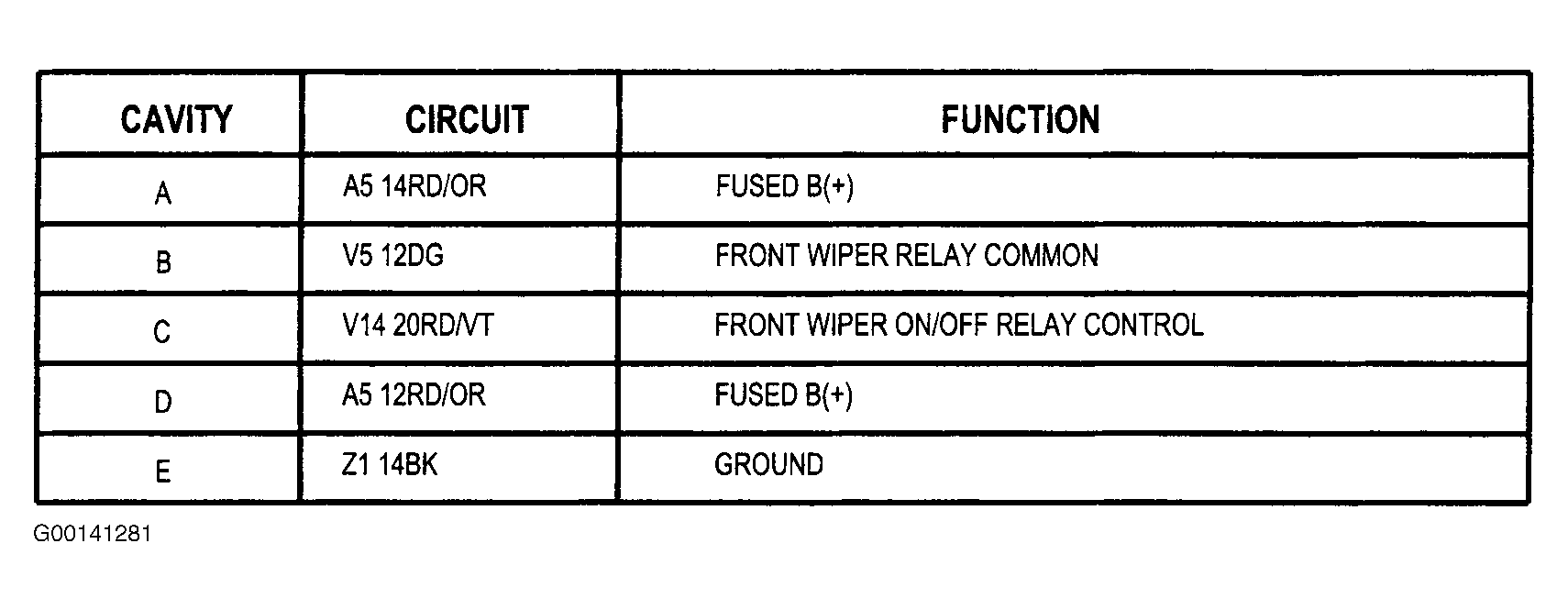

Fig 1: Identifying Front Wiper On/Off Relay Terminals

G00141281

Courtesy of CHRYSLER CORP.
