Engine Starter Motor Relay

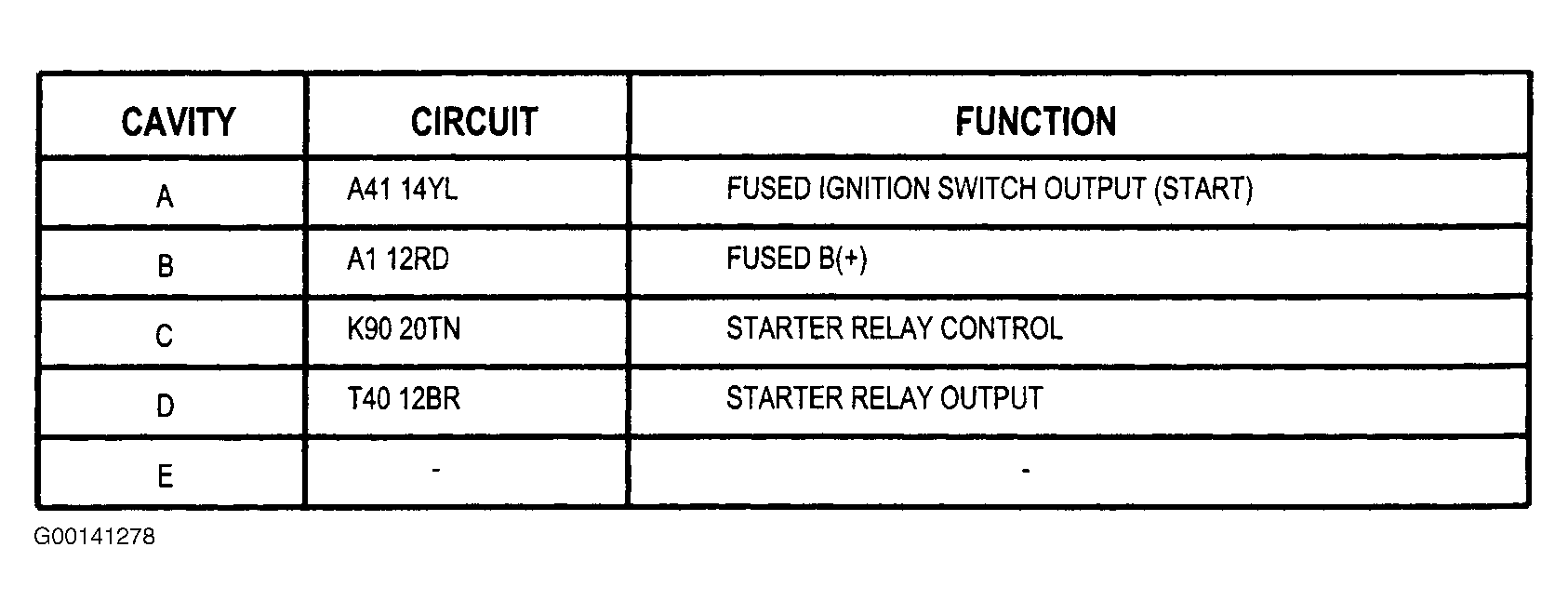

Fig 1: Identifying Starter Motor Relay Terminals

G00141278

Courtesy of CHRYSLER CORP.
