Body Control Module Interconnect Relay

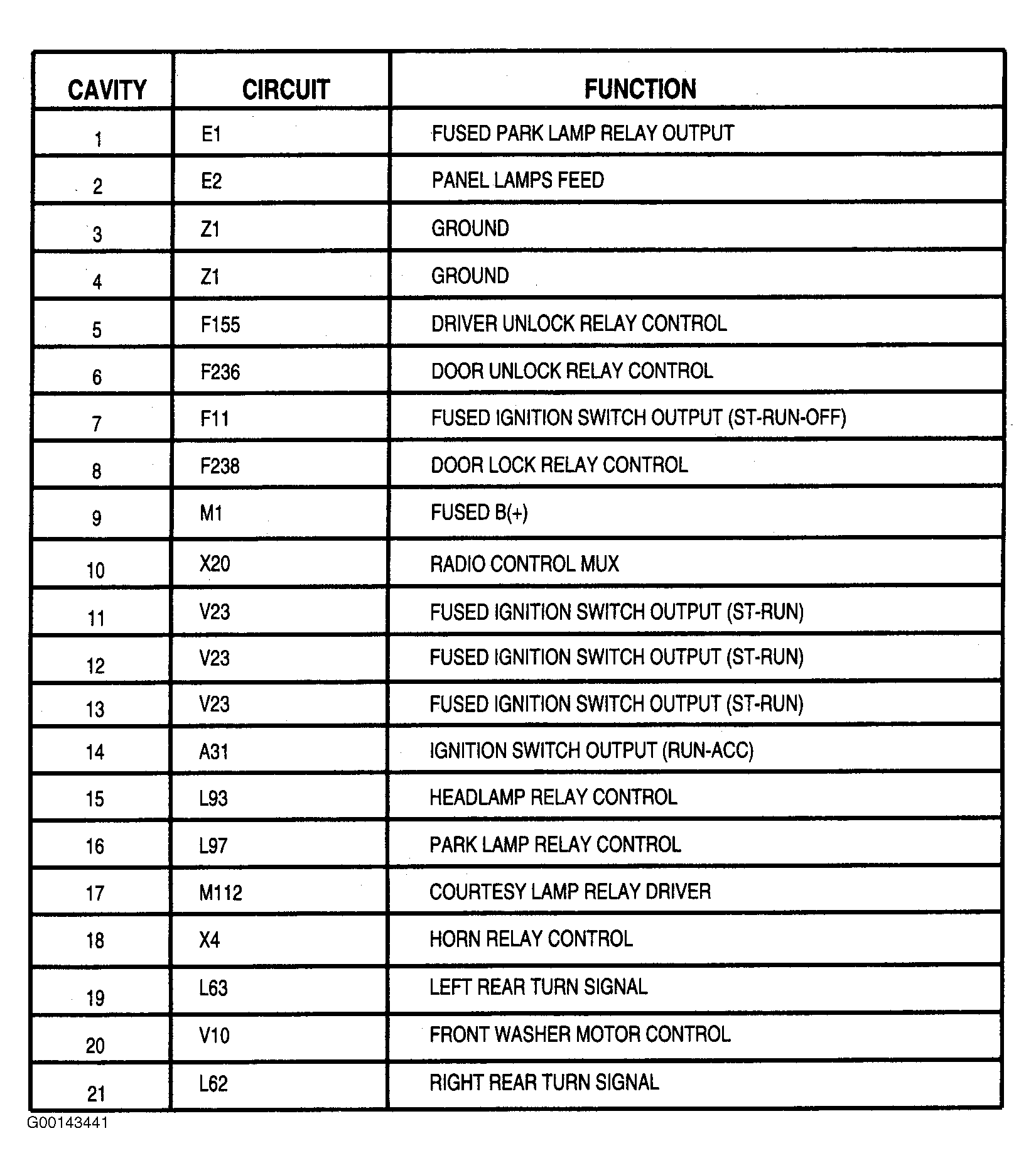

Fig 1: Identifying Body Control Interconnect Relay Terminals

G00143441

Courtesy of CHRYSLER CORP.
