Intake Manifold: Installation

Clean and inspect mating surfaces. Gaskets can be reused if free from cuts or tears. Ensure fuel injectors and wiring harnesses are out of way. Tighten all bolts to specification and in correct sequence. See TORQUE SPECIFICATIONS . See Fig 2 and Fig 3 . To complete installation, reverse removal procedures.

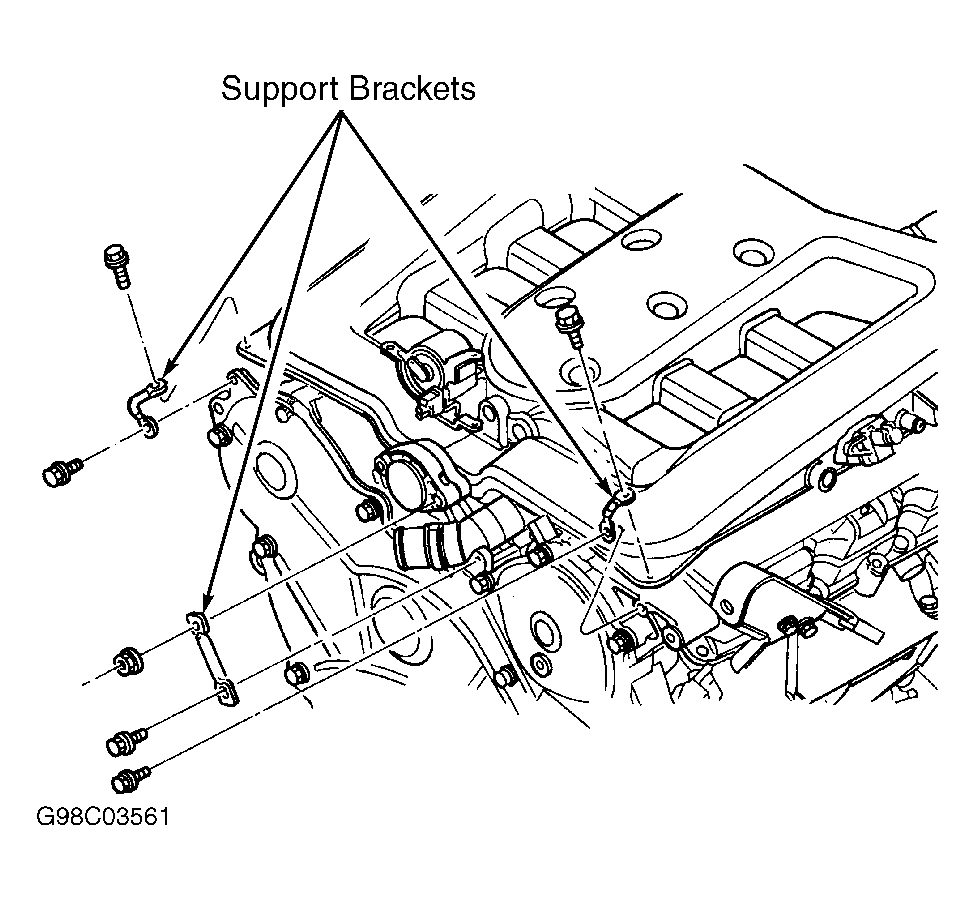

Fig 1: Removing Support Brackets At Intake Manifold Front Corners & MTV

Courtesy of CHRYSLER CORP.

Fig 2: Upper Intake Manifold Bolt Tightening Sequence

Courtesy of CHRYSLER CORP.

Fig 3: Lower Intake Manifold Bolt Tightening Sequence

Courtesy of CHRYSLER CORP.
