Park/Turn Signal Lamp: Installation: Intrepid

WARNING: This page is about a different car, the 2004 Dodge Intrepid, 2004 Chrysler Intrepid, 2004 Chrysler Concorde, and 2004 Chrysler 300M. However, it is still accessible from the selected car via links, so may be relevant.

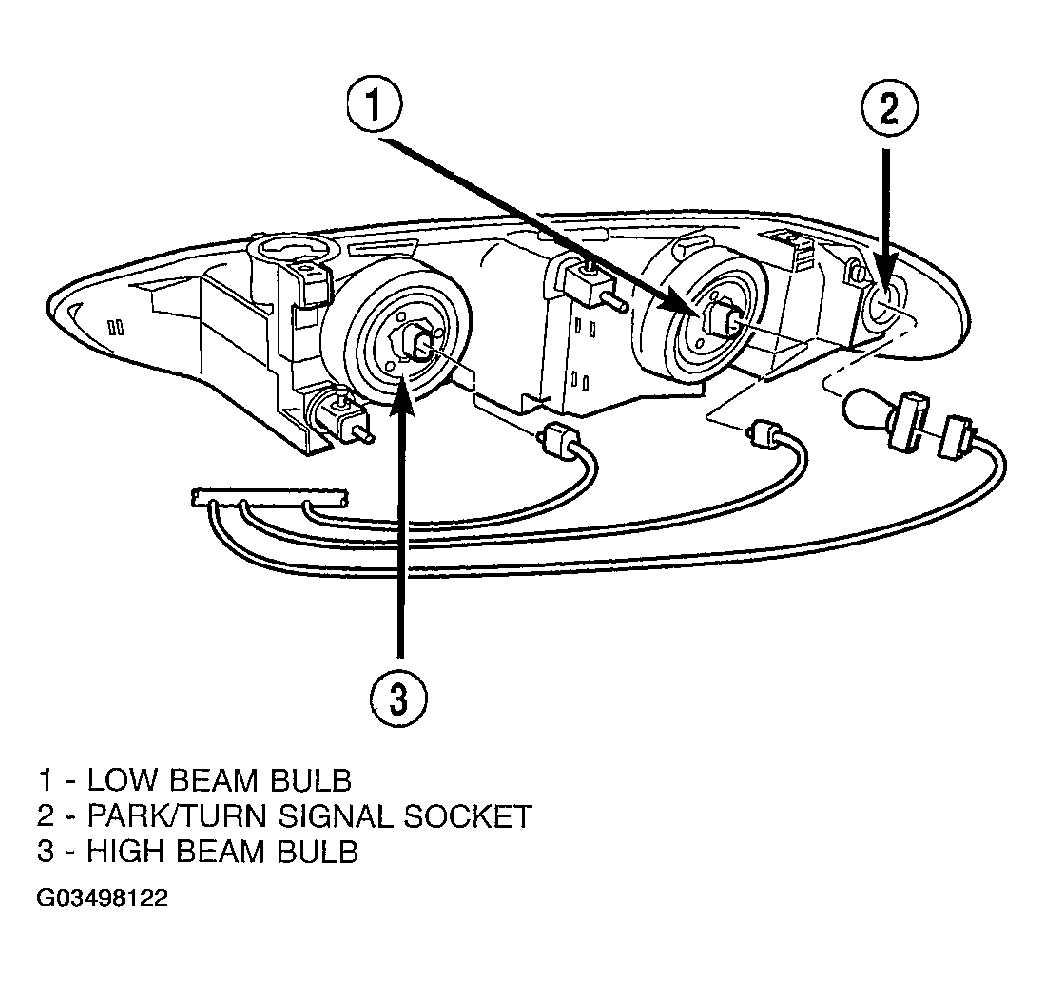

  1. Push bulb into socket (Figure).
  2. Install the lamp socket into lamp housing.
  3. Install the lamp housing.
  4. Install the jack screws attaching headlamp to crossmember.
  5. Connect the negative battery cable and close hood.
