Headlamp Leveling Switch - Export: Description

WARNING: This page is about a different car, the 2004 Dodge Intrepid, 2004 Chrysler Intrepid, 2004 Chrysler Concorde, and 2004 Chrysler 300M. However, it is still accessible from the selected car via links, so may be relevant.

The Headlamp Leveling Switch is located next to the headlamp switch (Fig 1) and is the primary controller of the headlamp leveling system. The leveling switch has three settings 0-2, "0" being the lowest, "2" being the highest headlight beam vertical setting.

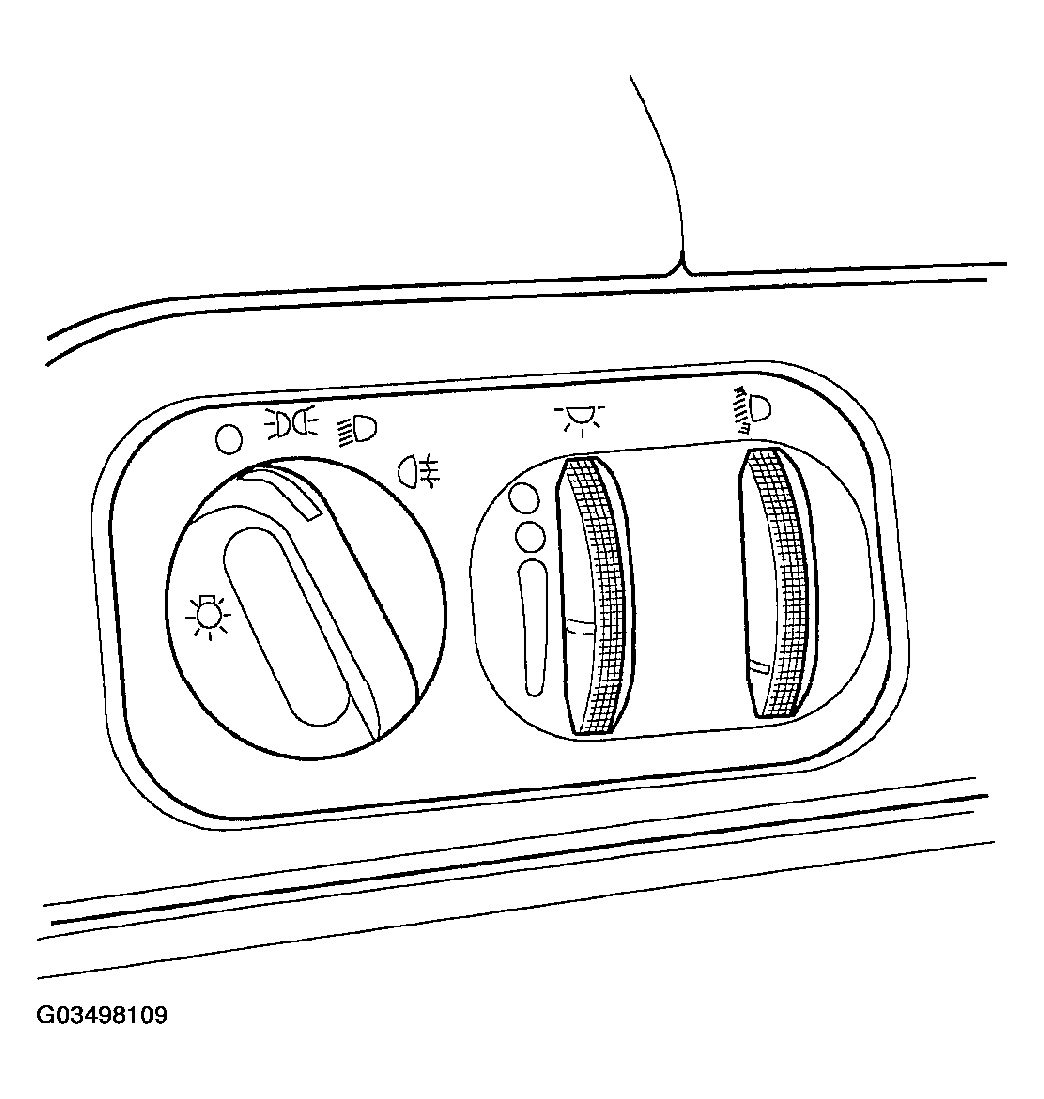

Fig 1: Headlamp Leveling Switch - Export
G03498109Courtesy of DAIMLERCHRYSLER CORP.
