Standard Procedure - Engine Oil Level Check

WARNING: This page is about a different car, the 2004 Dodge Intrepid, 2004 Chrysler Intrepid, 2004 Chrysler Concorde, and 2004 Chrysler 300M. However, it is still accessible from the selected car via links, so may be relevant.

The best time to check engine oil level is after it has sat overnight, or if the engine has been running, allow the engine to be shut off for at least 5 minutes before checking oil level.

Checking the oil while the vehicle is on level ground will improve the accuracy of the oil level reading (Fig 1 ). Add only when the level is at or below the ADD mark.

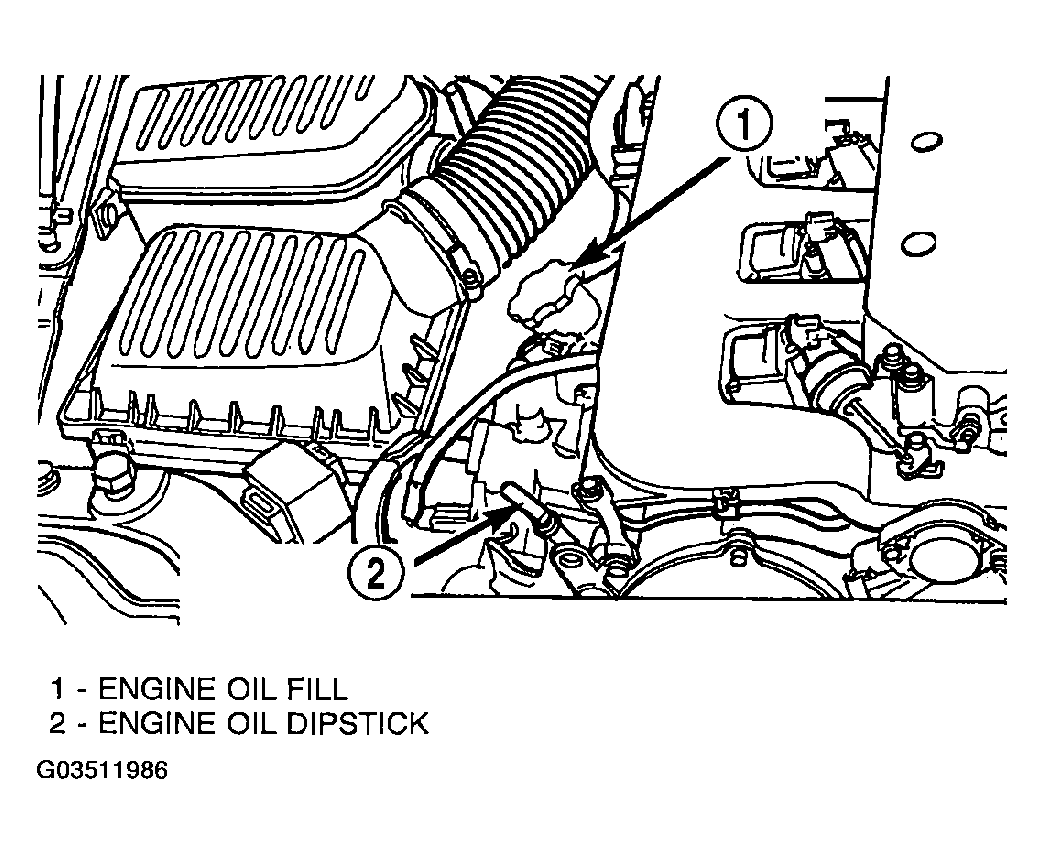

Fig 1: Engine Oil Fill And Dipstick Locations
G03511986Courtesy of DAIMLERCHRYSLER CORP.
