Load Leveler Menu

  1. In order to perform load leveling system tests using DRB-II, DRB-II must be in LOAD LEVELER MENU. At LOAD LEVELER MENU, DRB-II test functions can be accessed.
  2. To reach LOAD LEVELER MENU, turn ignition off. Connect DRB-II CCD data link connector. CCD data link connector is located under left side of dash. See Fig 1. Turn ignition switch to RUN position.
    NOTE: DO NOT touch DRB-II keypad during DRB-II power-up sequence or an error message will result.
  3. All DRB-II character positions will illuminate and copyright information will appear on screen for a few seconds. If DRB-II screen is blank or any error messages appear, see BODY CONTROL COMPUTER INTRODUCTION article in ENGINE PERFORMANCE.
  4. After a few seconds DRB-II menu will appear. At DRB-II menu, press "4" (SELECT SYSTEM) key. Press ENTER key. At SELECT SYSTEM menu, press "4" (SUSPENSION) key. Press ENTER key.
  5. SUSPENSION TYPE menu will appear. Press "1" (LOAD LEVELER). BUS TEST IN PROGRESS (BUS OPERATIONAL) will appear on screen for a few seconds. Then DRB-II display will change to LOAD LEVEL MENU.
  6. At LOAD LEVEL MENU, specific test functions programmed into DRB-II can be performed. The following DRB-II modes can be accessed: SYSTEM TESTS, STATE DISPLAY and ACTUATOR TESTS.
NOTE: For more information on DRB-II test functions, see DRB-II TEST FUNCTIONS in SELF-DIAGNOSTICS INTRODUCTION - EXCEPT LASER & TALON article in ENGINE PERFORMANCE.

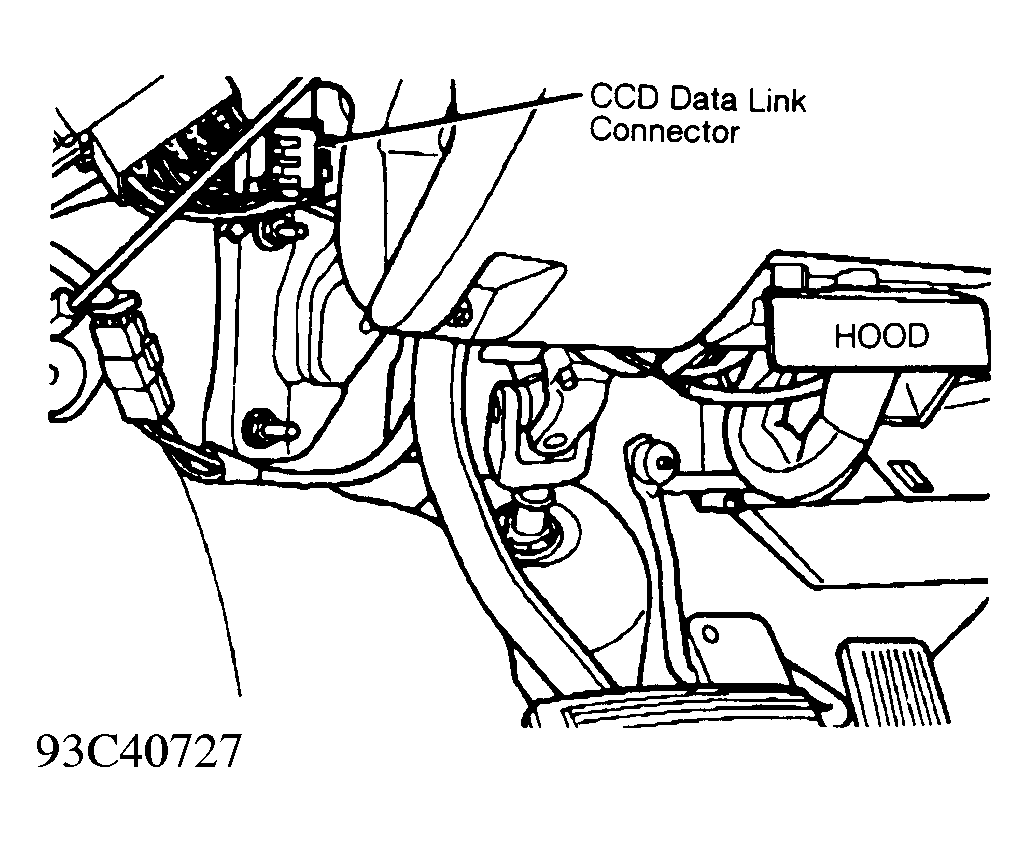

Fig 1: Locating Chrysler Collision Detection (CCD) Data Link Connector
G93C40727Courtesy of CHRYSLER CORP.
