CLOCKSPRING R & I: Installation

  1. Position clockspring onto steering shaft with horn wire at top and air bag module wire at bottom. See Figure. Snap clockspring tabs onto steering column housing.
  2. If clockspring is not centered as per illustration, adjustment is required before installing steering wheel. See CLOCKSPRING CENTERING  under ADJUSTMENTS. Connect wiring connector to rear of clockspring.

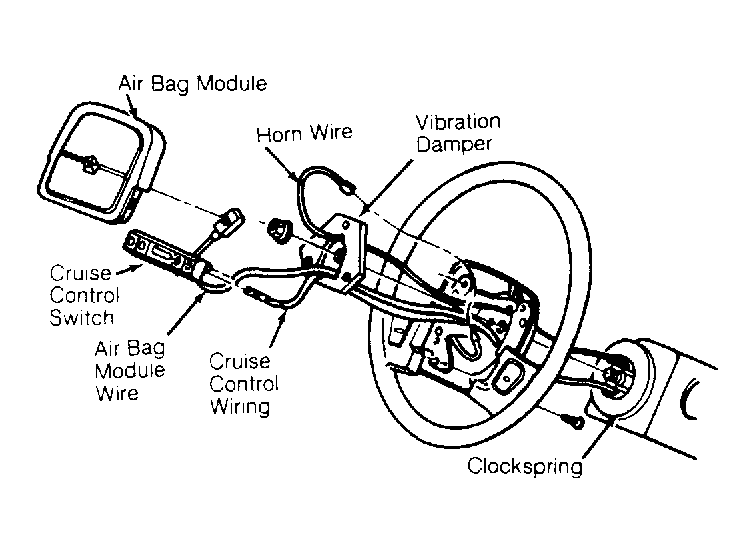

  3. Position steering wheel to shaft. Pull horn wire through small upper hole in steering wheel. Pull air bag module and cruise control wires through larger bottom hole in steering wheel. See Figure.
  4. To complete installation, see STEERING WHEEL & HORN PAD R & I . Connect Yellow 2-pin clockspring harness connector. Install all steering column covers. See SYSTEM OPERATION CHECK .
