Test 75B: Headlight Time Delay Will Not Work

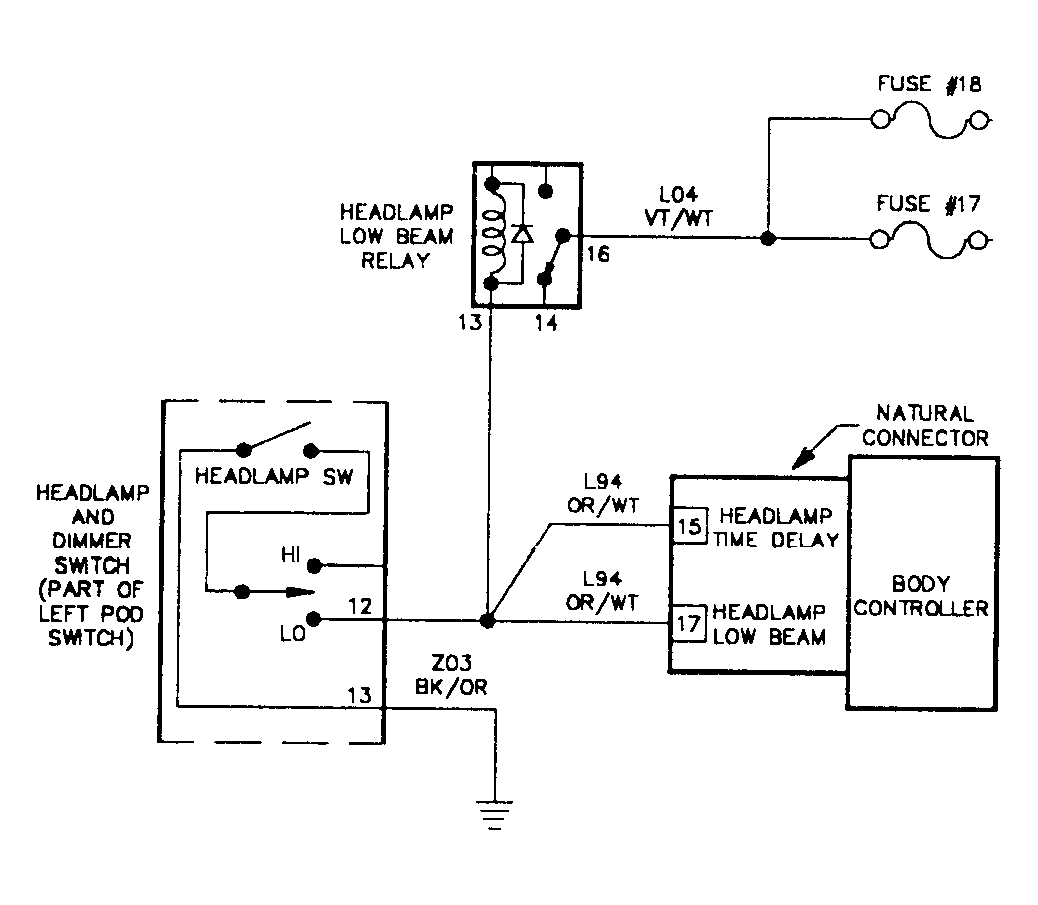

Fig 1: Test 75B: Circuit Diagram

G91I11468

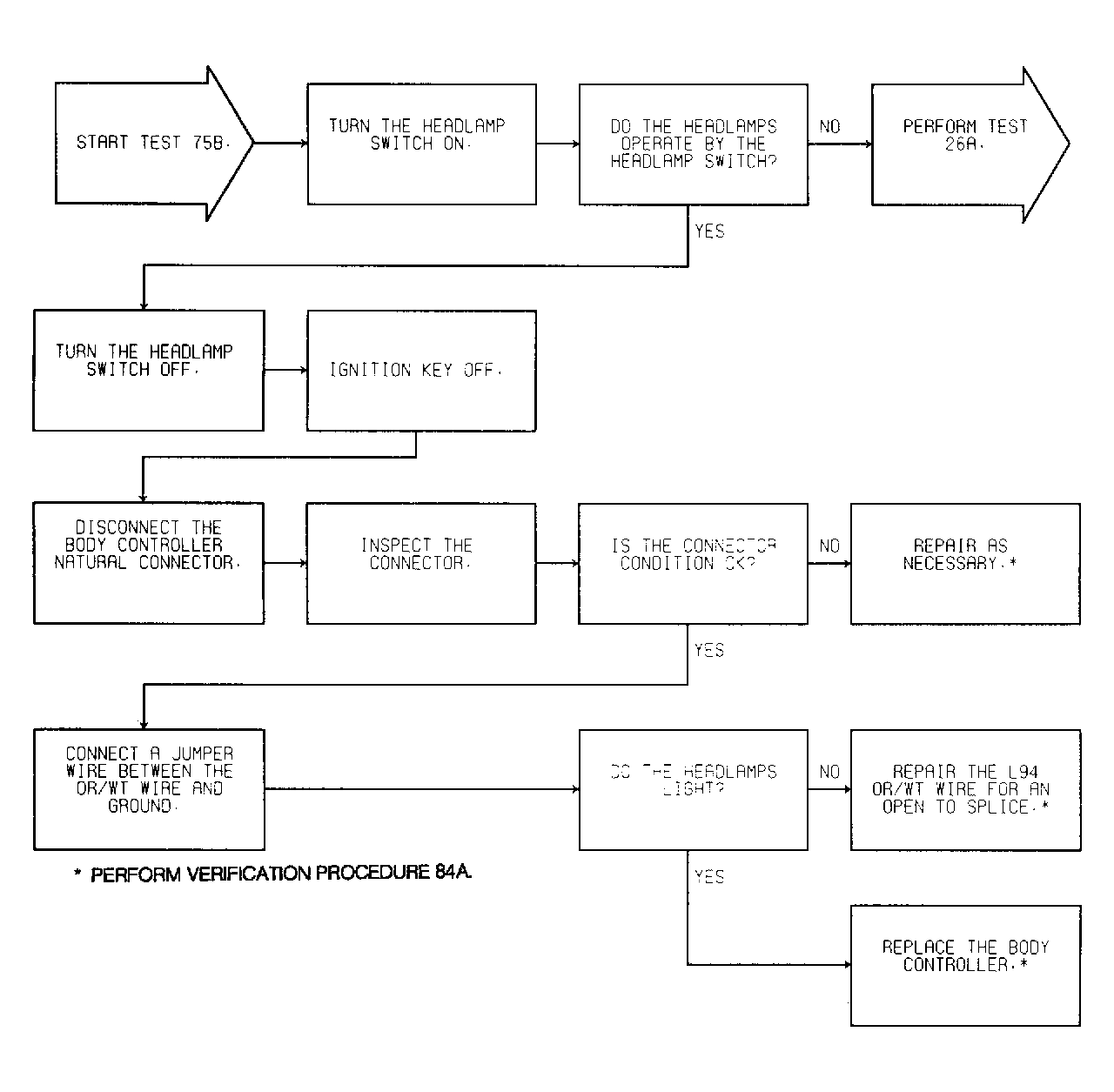

Fig 2: Test 75B: Headlight Time Delay Will Not Work

G91D11596
