Test 38A: Repairing Seat Belt Warning Light Problem

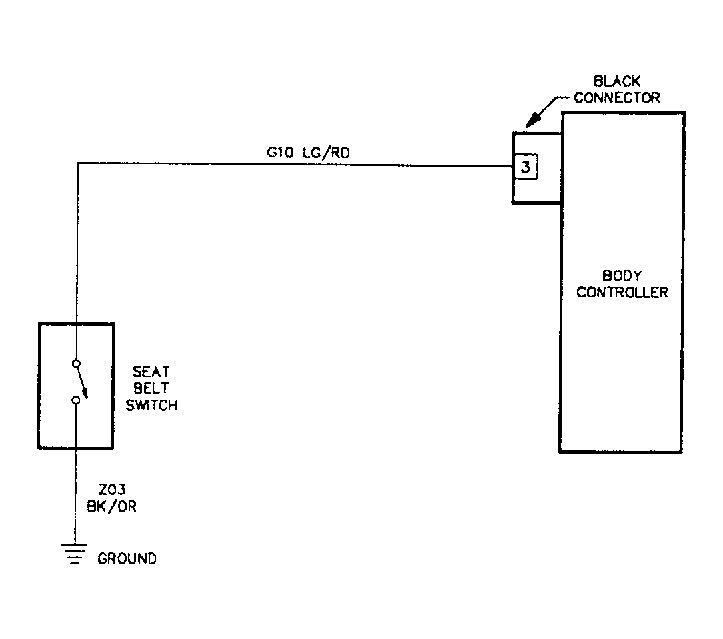

Fig 1: Test 38A: Circuit Diagram

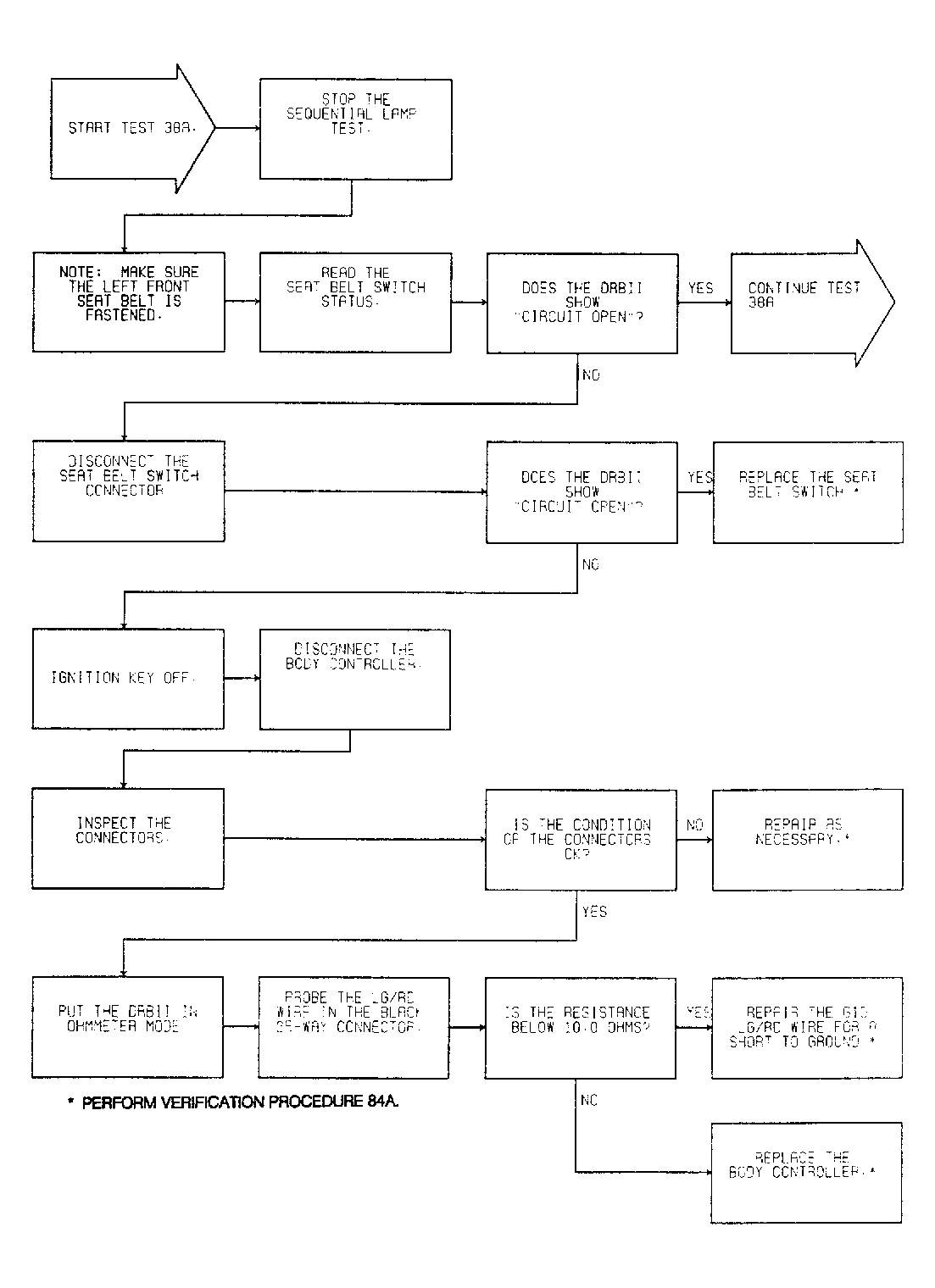

Fig 2: Test 38A: Seat Belt Warning Light Problem (1 of 2)

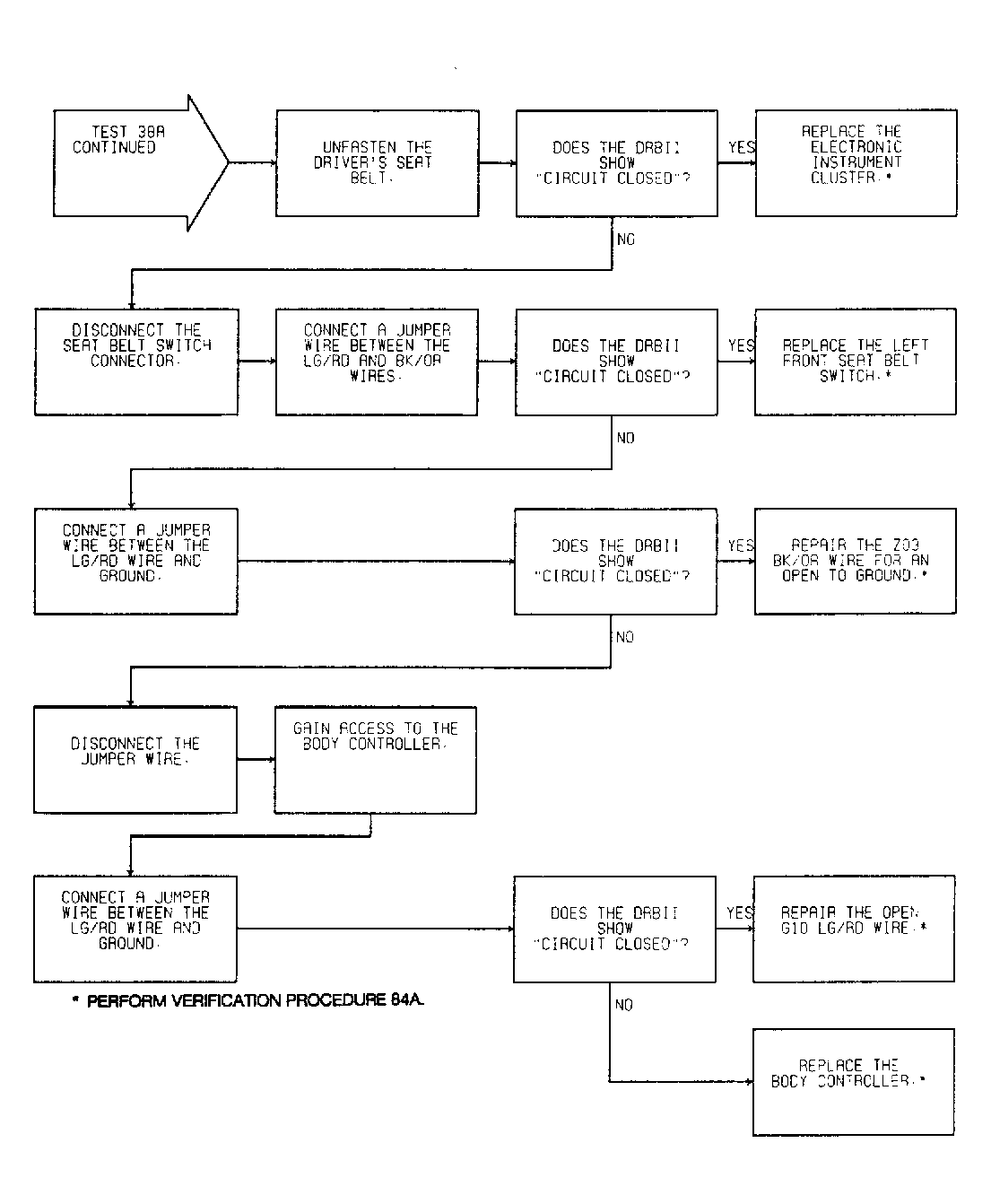

Fig 3: Test 38A: Seat Belt Warning Light Problem (2 of 2)
