Test 39A: Bus (-) Open

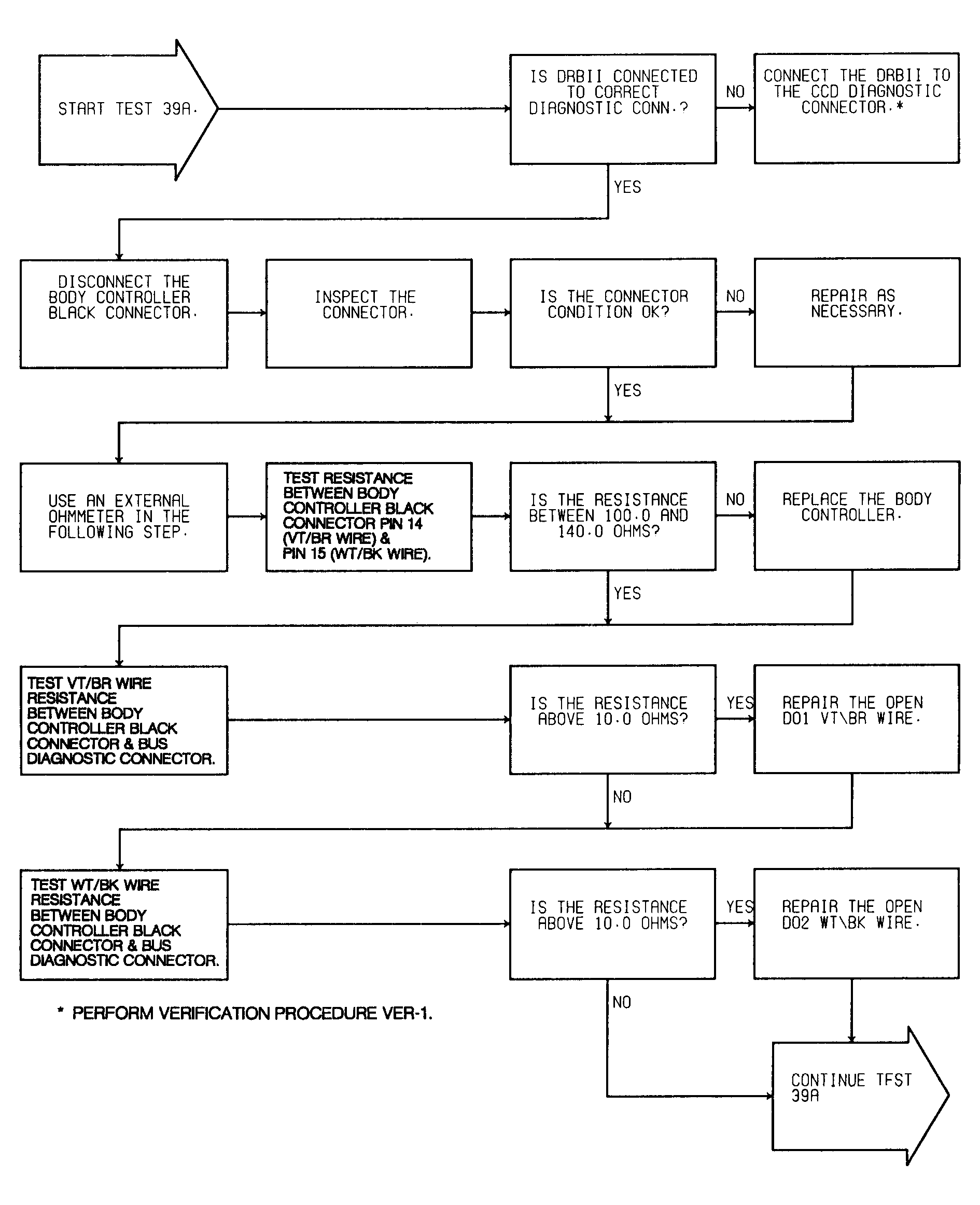

Fig 1: Test 39A: Bus (-) Open (1 of 2)

G91B11693

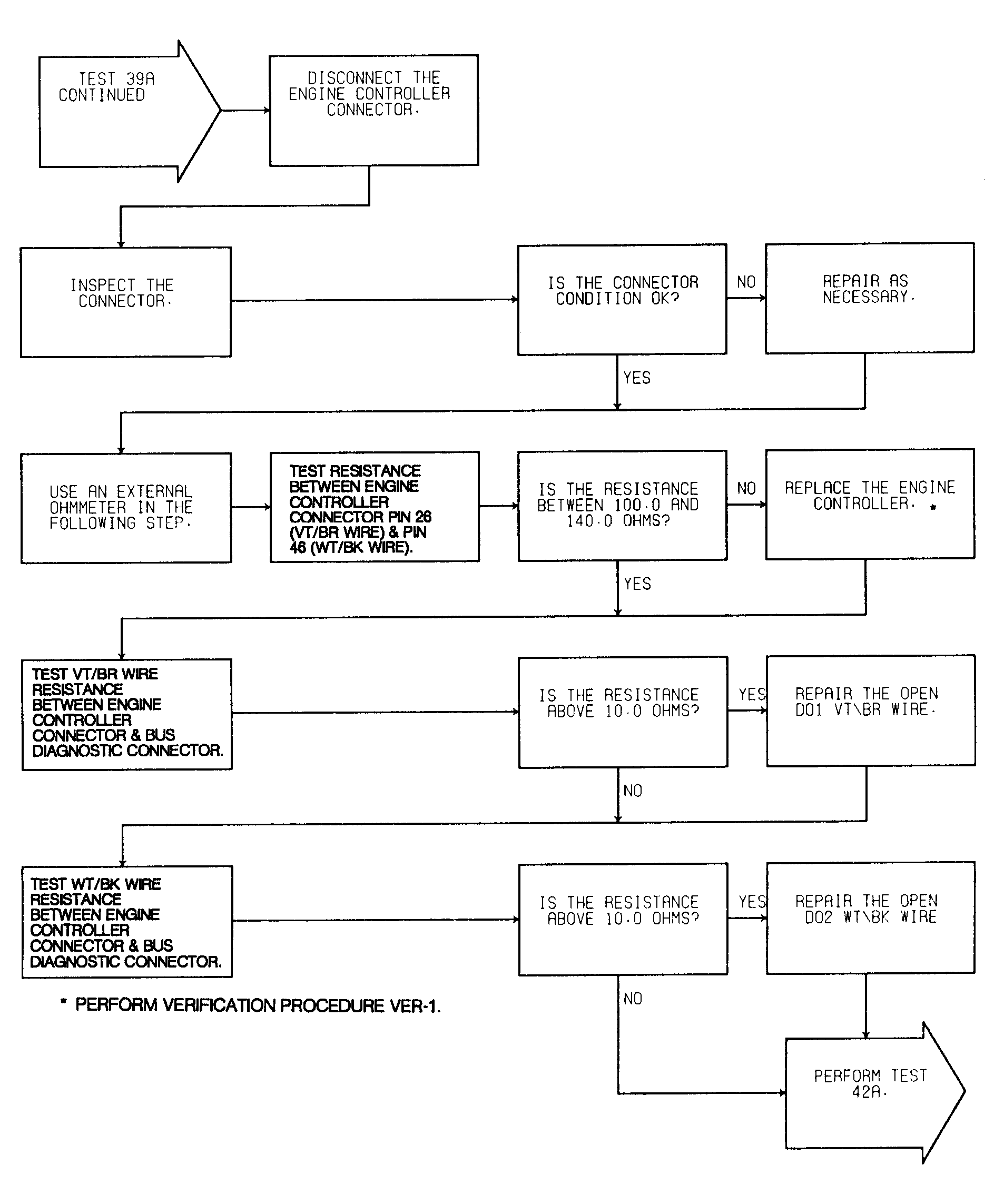

Fig 2: Test 39A: Bus (-) Open (2 of 2)

G91C11694
