Test 32A: Short To Ground On Bus
Test 32A: Short To Ground On Bus

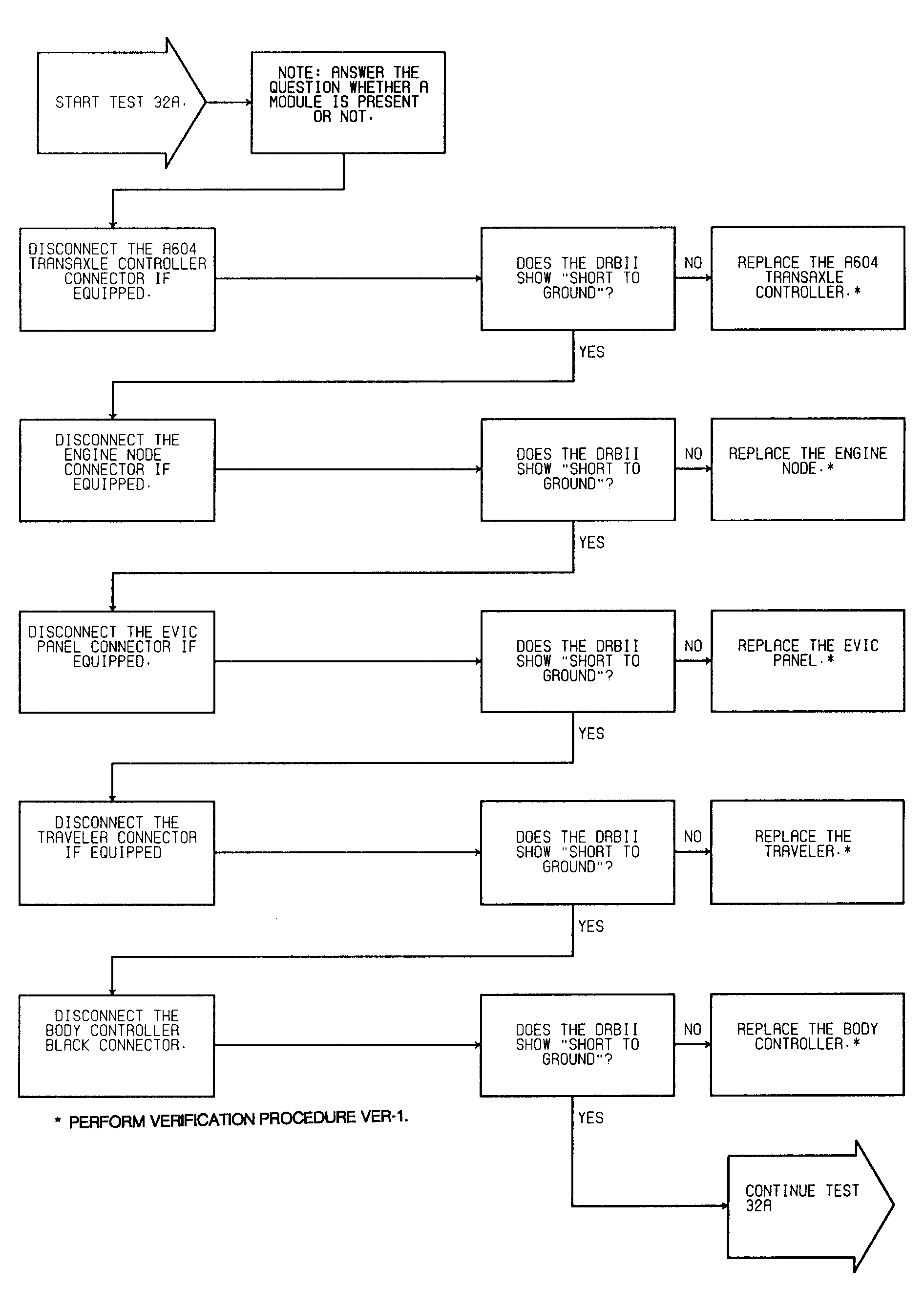

Fig 1: Test 32A: Short to Ground on Bus (1 of 2)

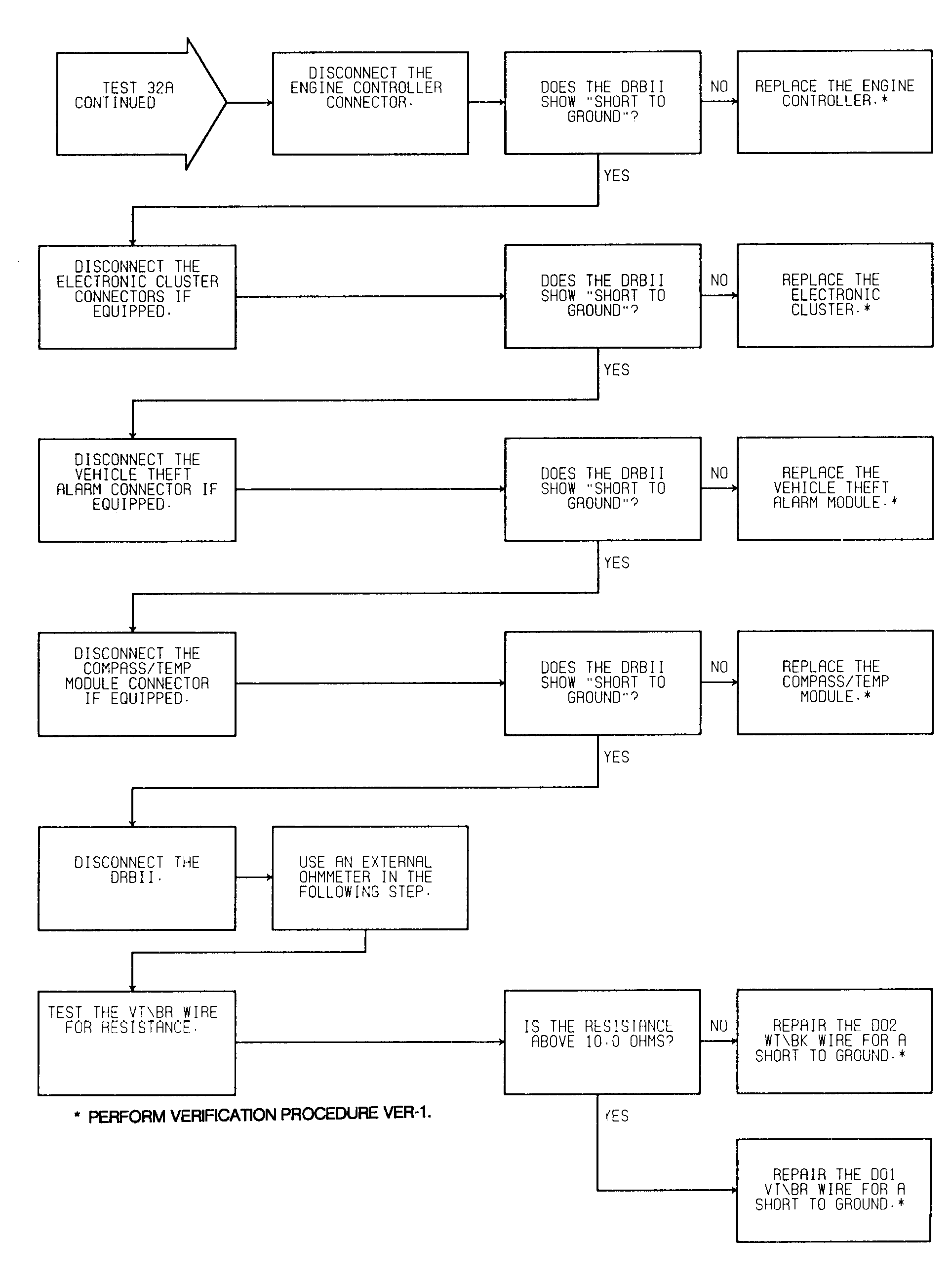

Fig 2: Test 32A: Short to Ground on Bus (2 of 2)
