Test 30A: Short To Battery On Bus

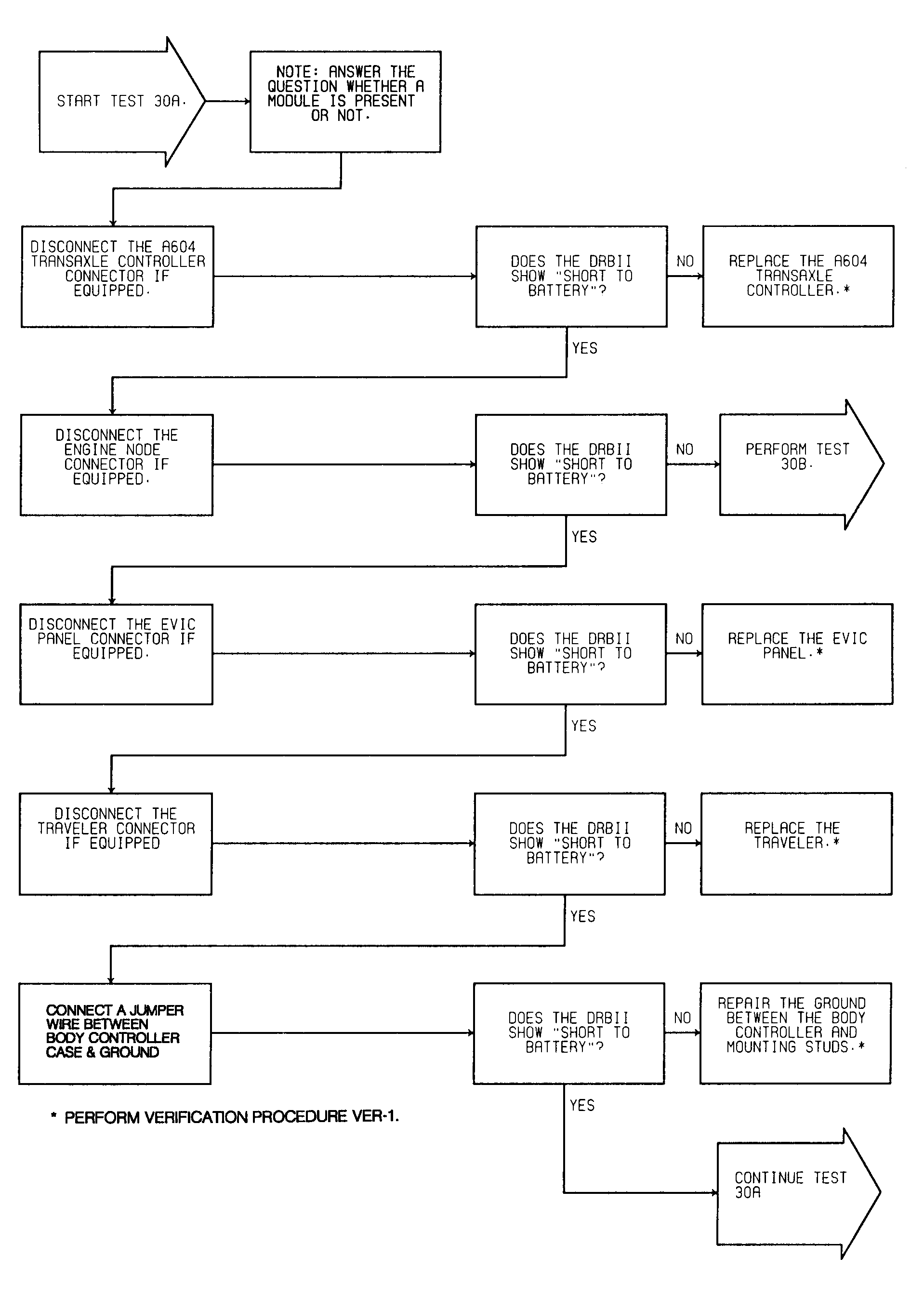

Fig 1: Test 30A: Short to Battery on Bus (1 of 3)

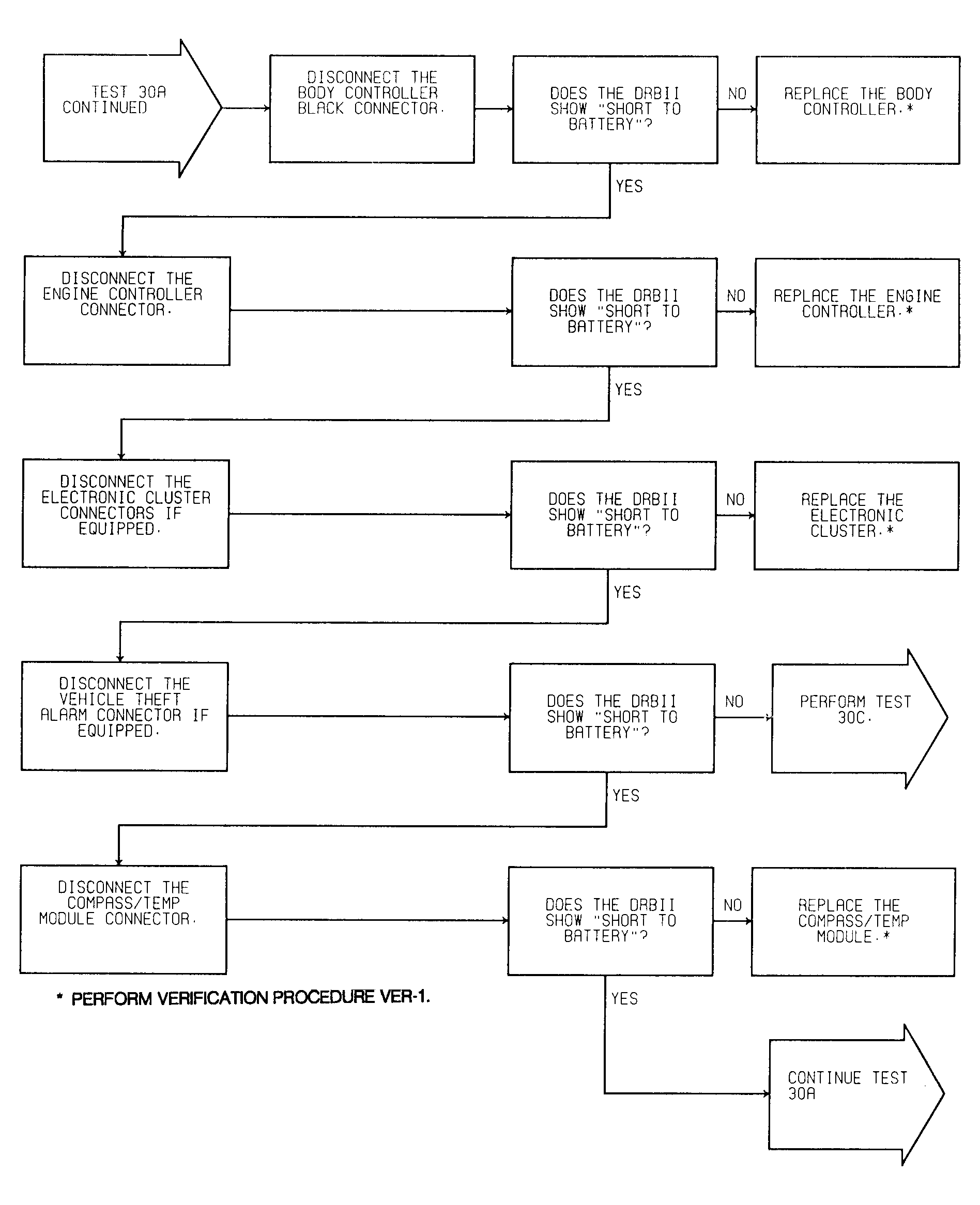

Fig 2: Test 30A: Short to Battery on Bus (2 of 3)

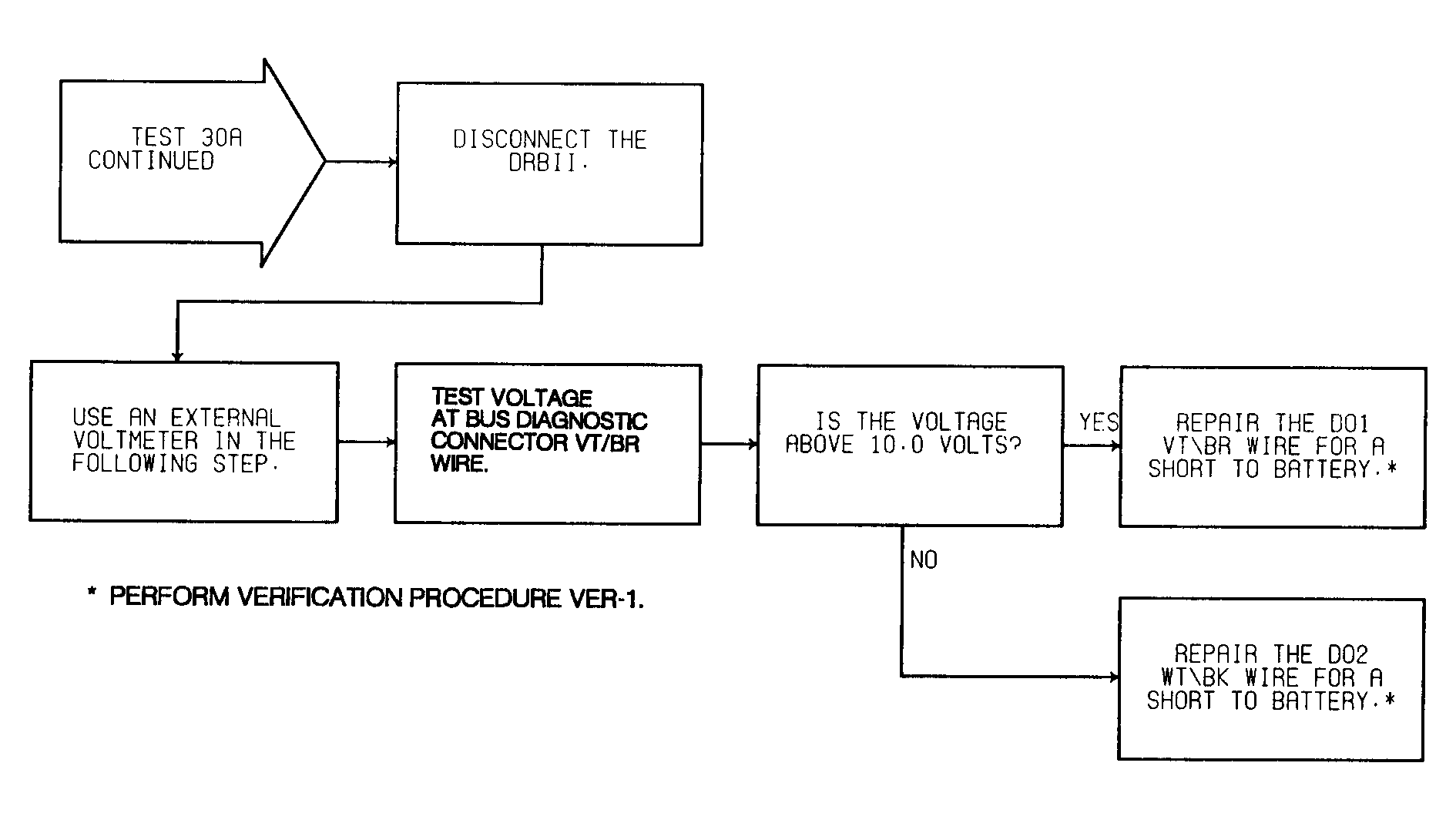

Fig 3: Test 30A: Short to Battery on Bus (3 of 3)
