Test 60A: Checking Wiper Motor & Controls

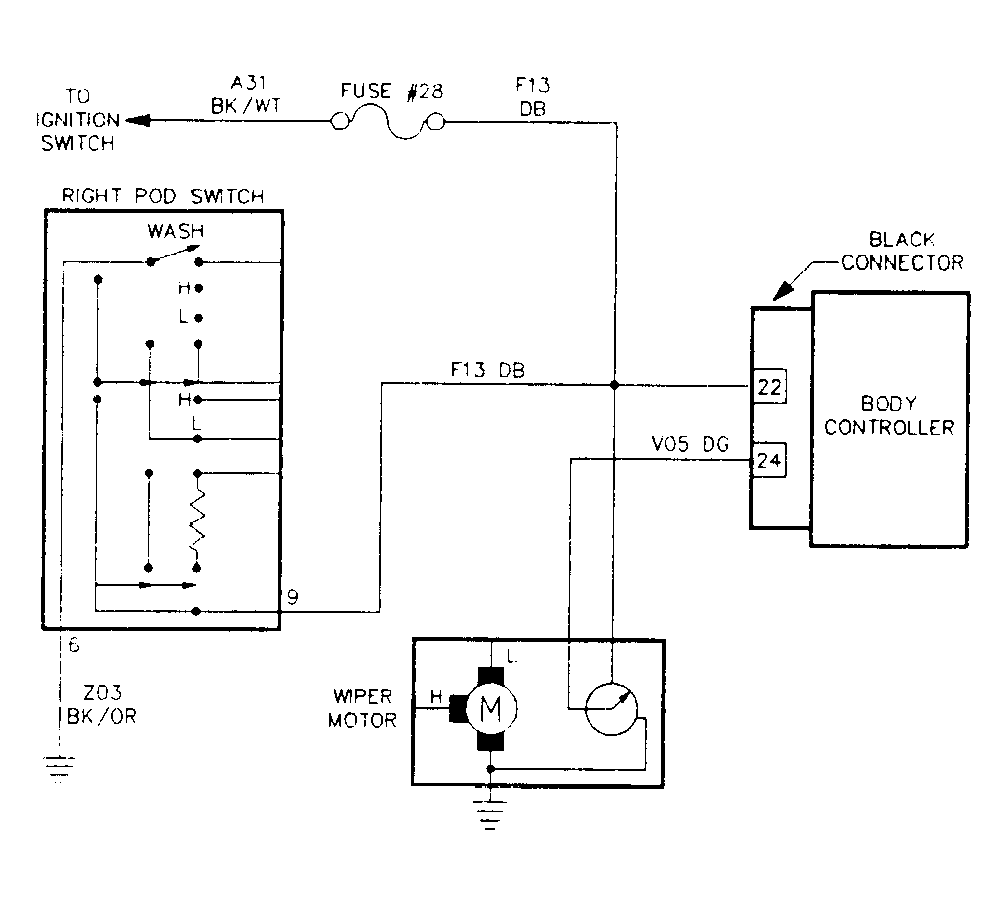

Fig 1: Test 60A: Circuit Diagram

G91G11466

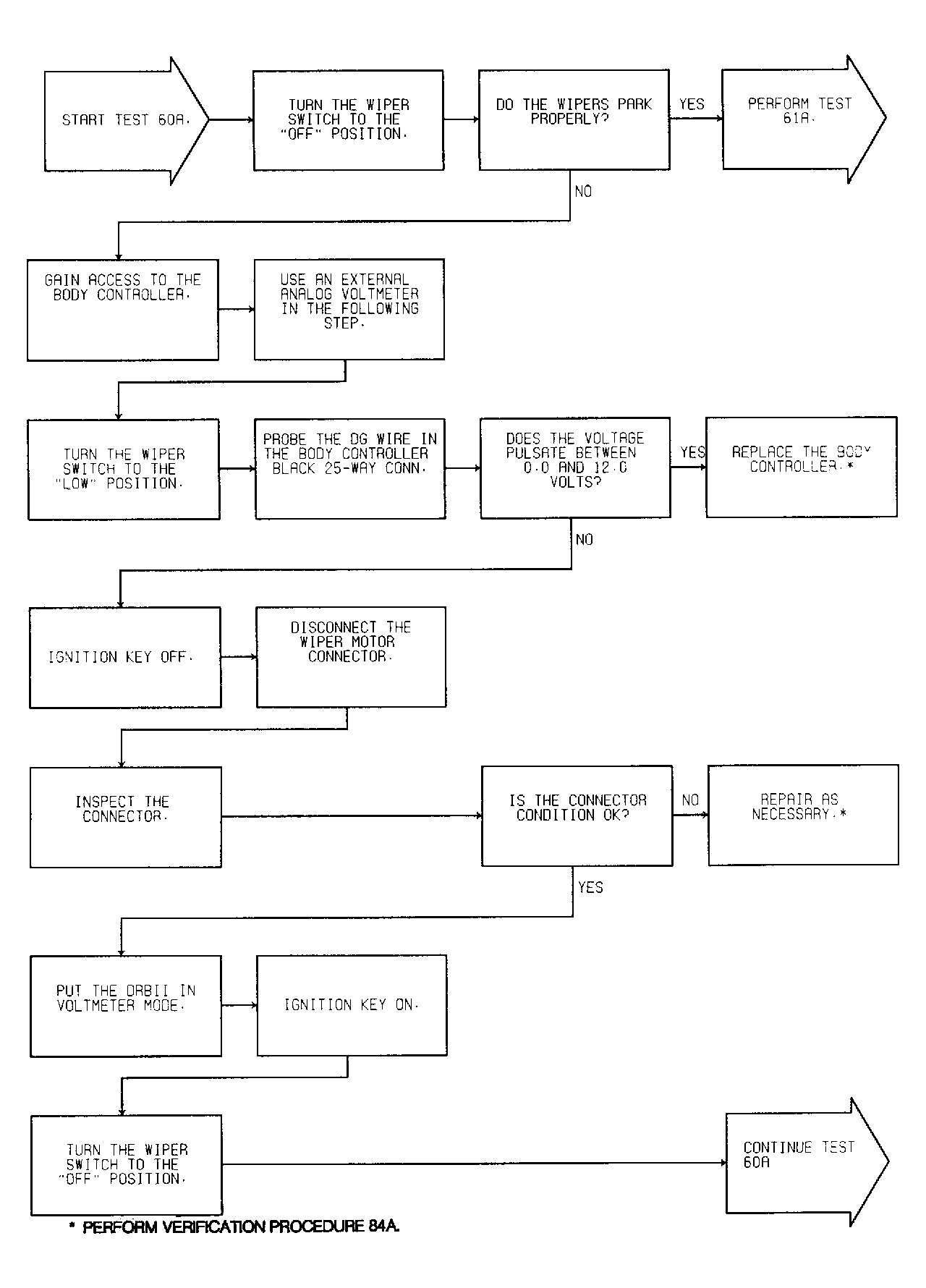

Fig 2: Test 60A: Checking Wiper Motor & Controls (1 of 2)

G91I11591

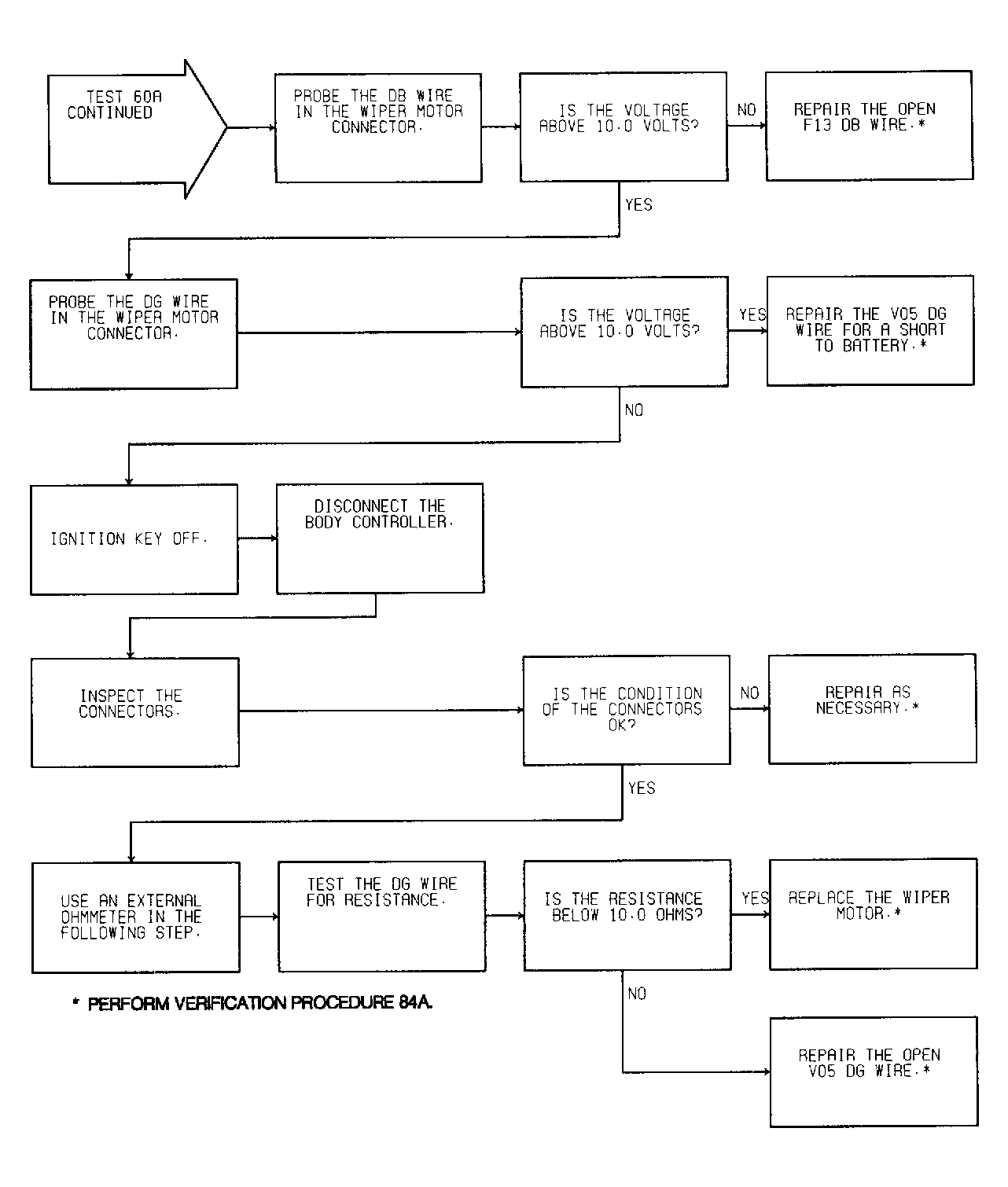

Fig 3: Test 60A: Checking Wiper Motor & Controls (2 of 2)

G91J11592
