Test 53A: Checking Body Controller Output & Power Supply

Fig 1: Test 53A: Circuit Diagram

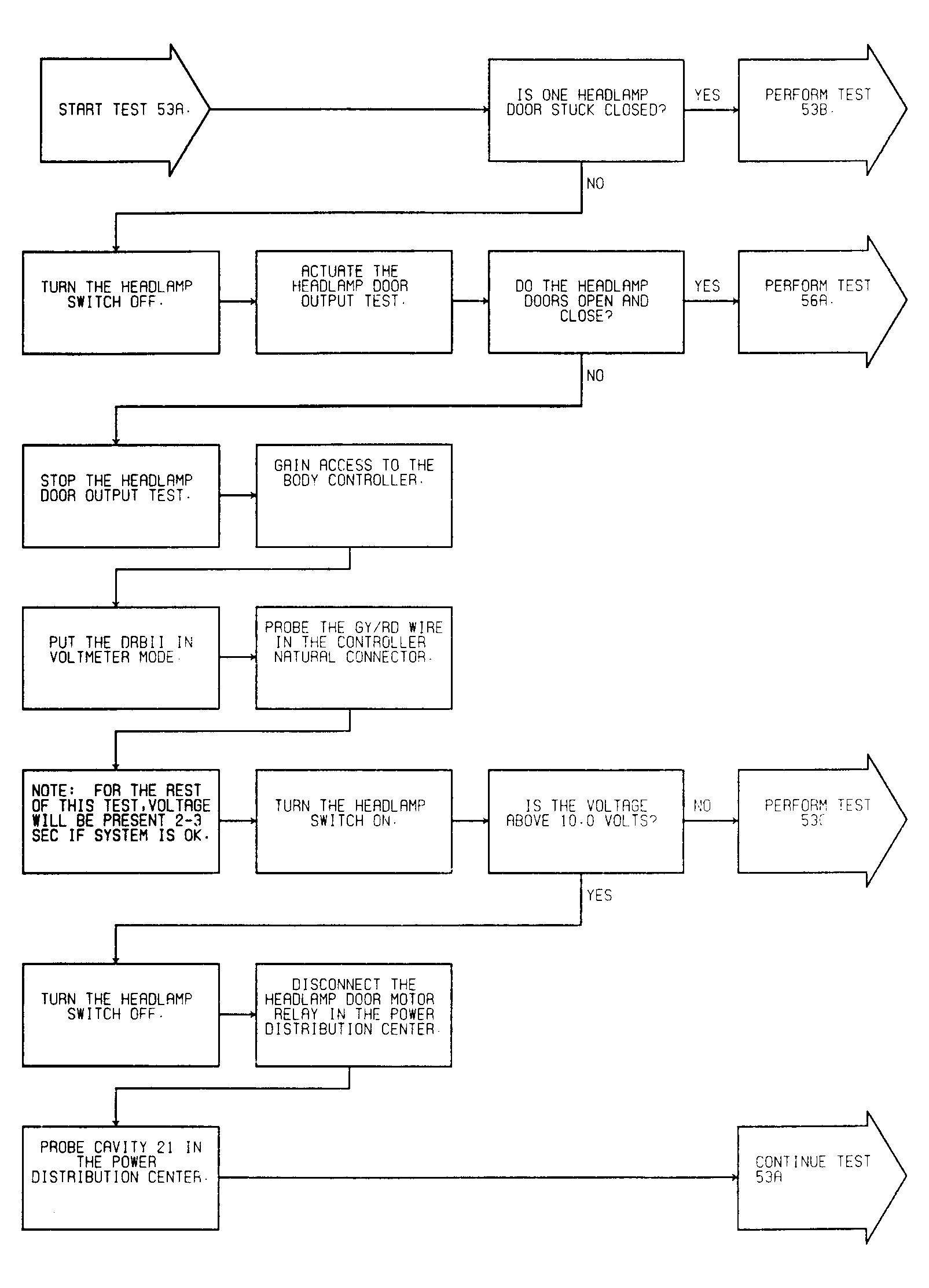

Fig 2: Test 53A: Body Controller Output & Power Supply (1 of 4)

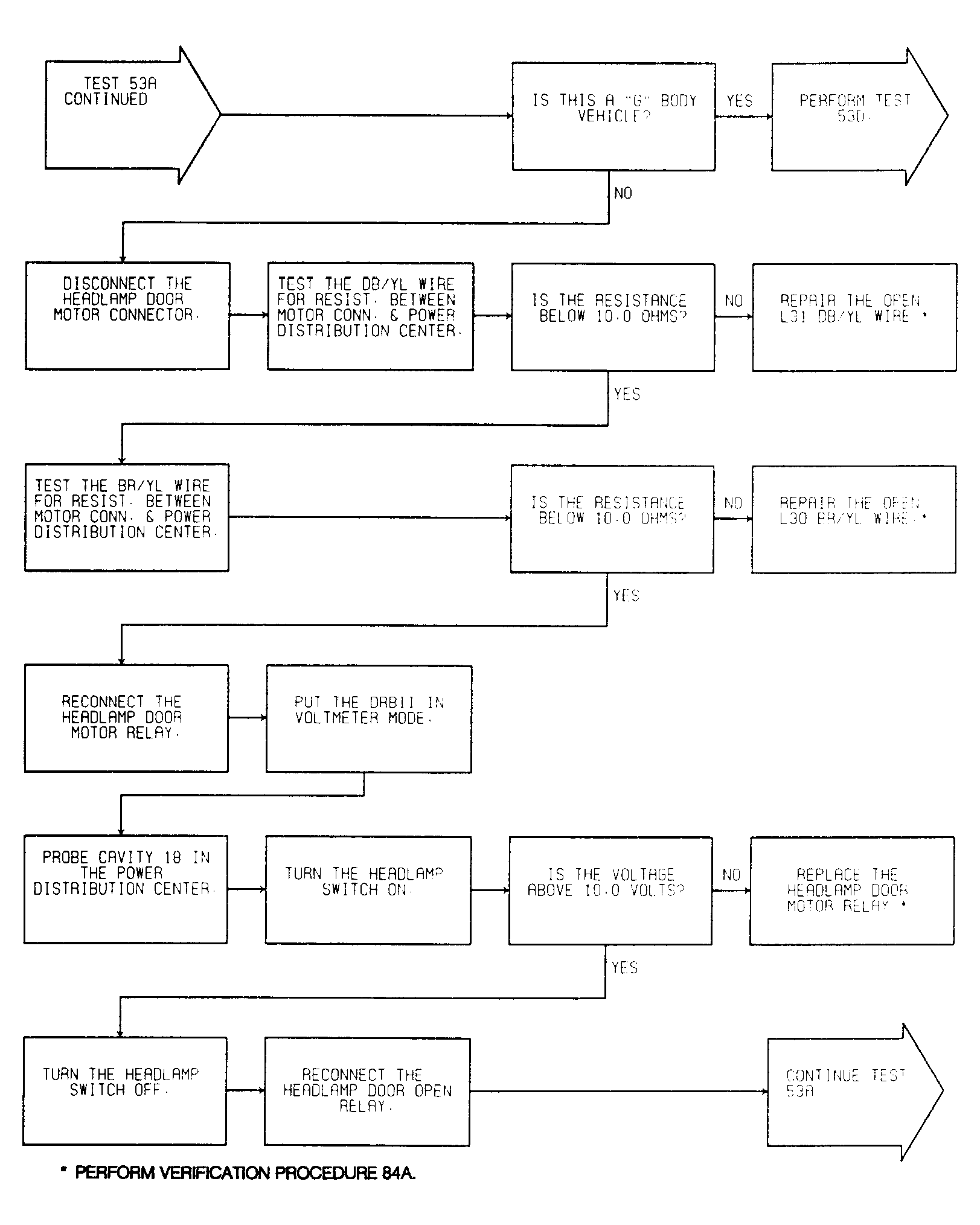

Fig 3: Test 53A: Body Controller Output & Power Supply (2 of 4)

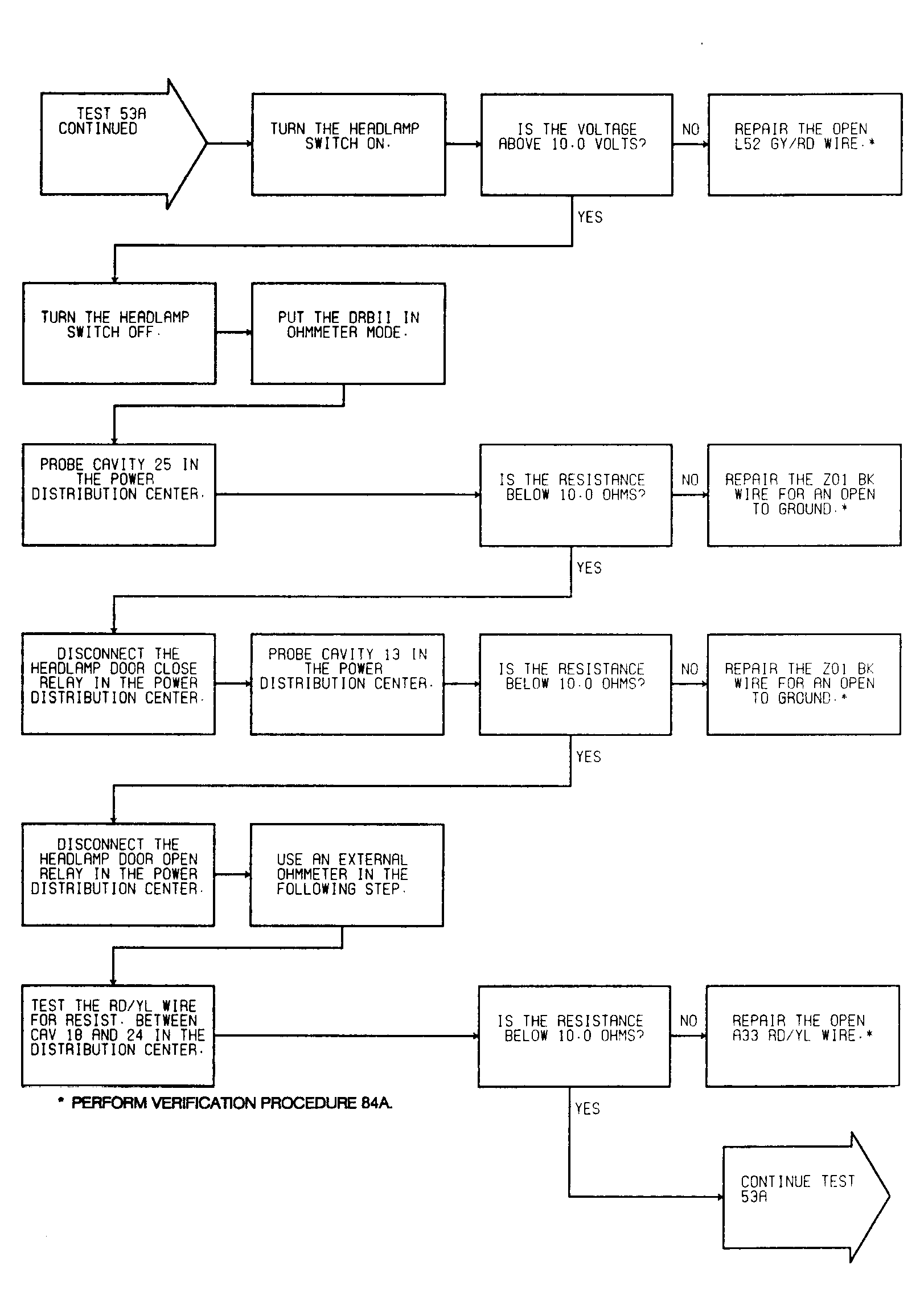

Fig 4: Test 53A: Body Controller Output & Power Supply (3 of 4)

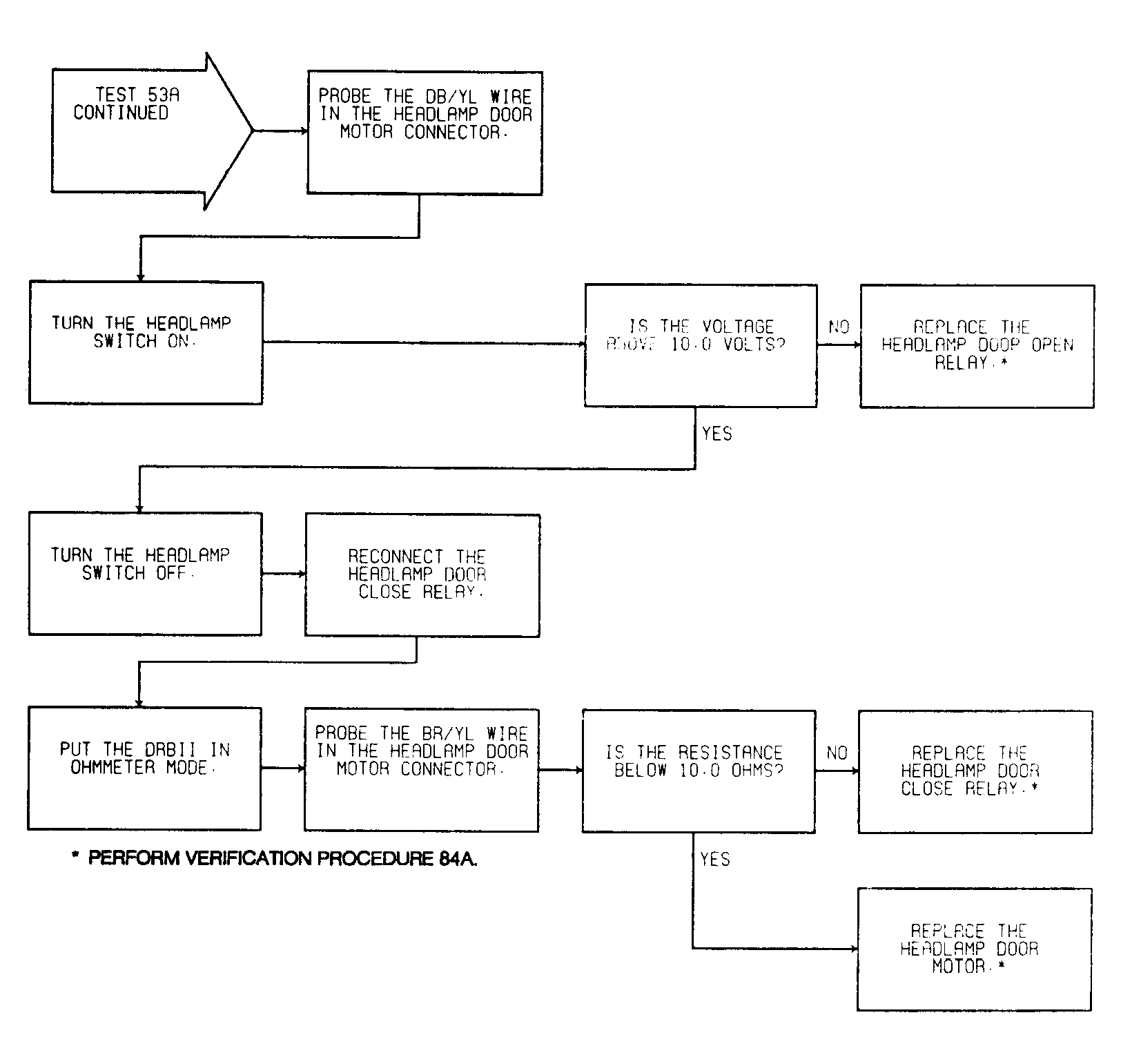

Fig 5: Test 53A: Body Controller Output & Power Supply (4 of 4)
