Home >> Chrysler >> 1991 >> LeBaron Base, 2D Convertible, 3.0 3, Standard >> Repair and Diagnosis >> Engine Performance >> System >> Engine Controls - Tests W/Codes - Body Control Computer >> Trouble Shooting Charts >> Test 41B: Diagnosing Theft Alarm Unarm Function

Test 41B: Diagnosing Theft Alarm Unarm Function

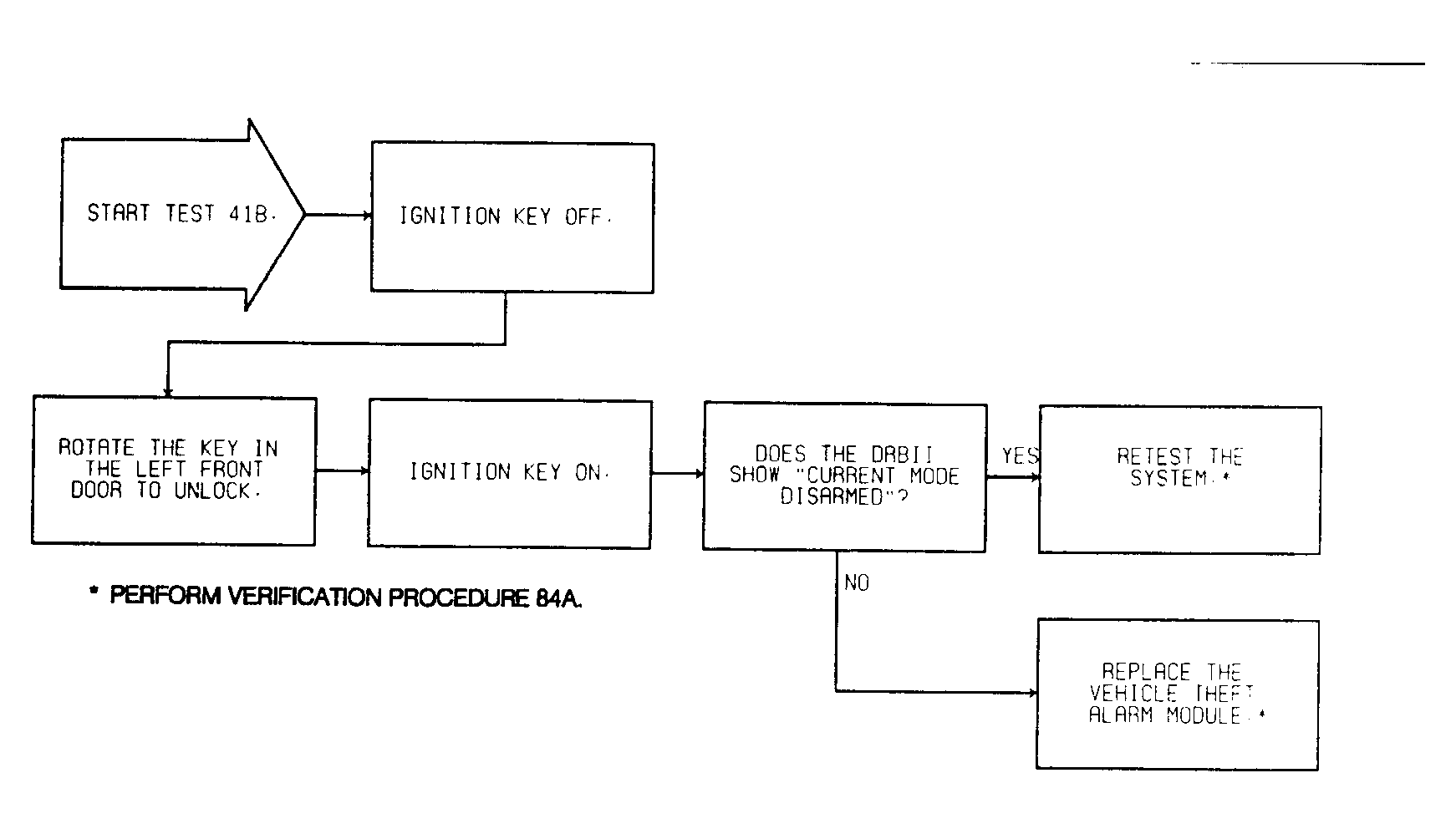

Fig 1: Test 41B: Diagnosing Theft Alarm Unarm Function

G91H11541
