Test 37B: Repairing Faulty Warning Light Condition

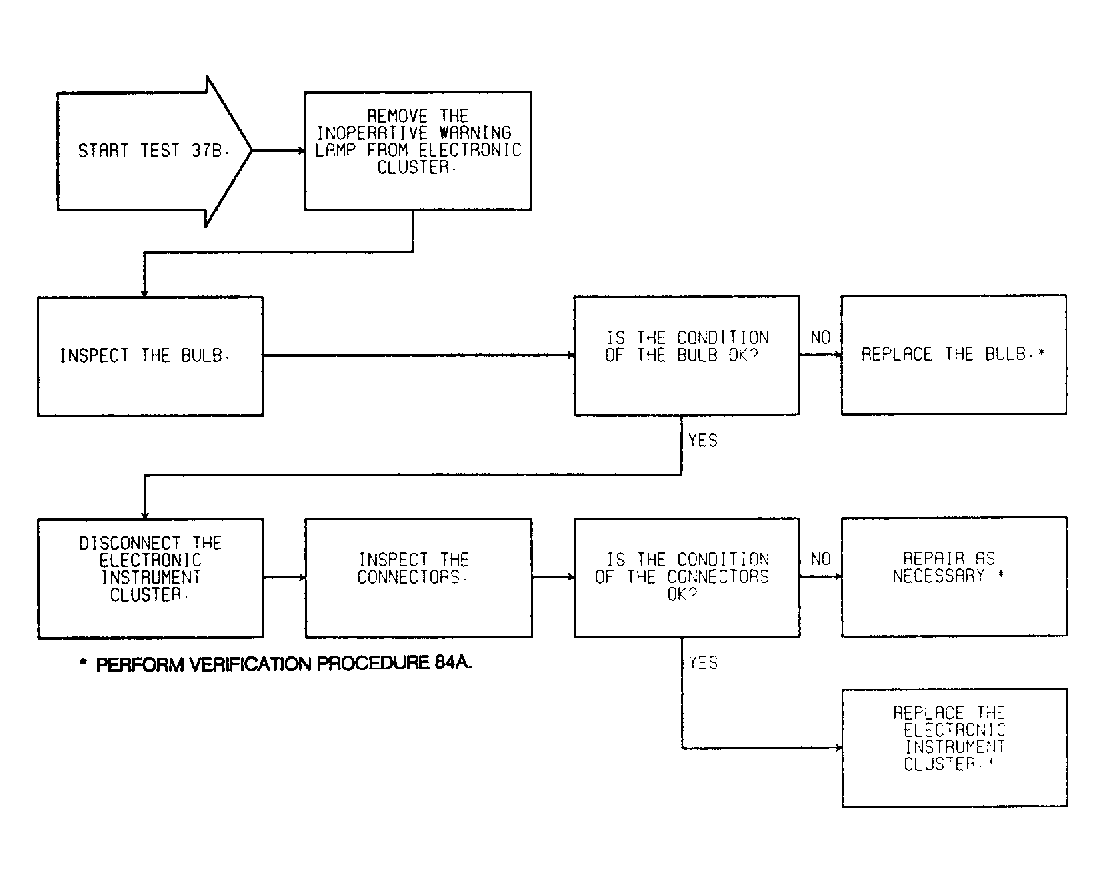

Fig 1: Test 37B: Repairing Faulty Warning Light Condition

G91H11491
