Test 32B: Repairing Electronic Cluster Power-Up Upon Entry

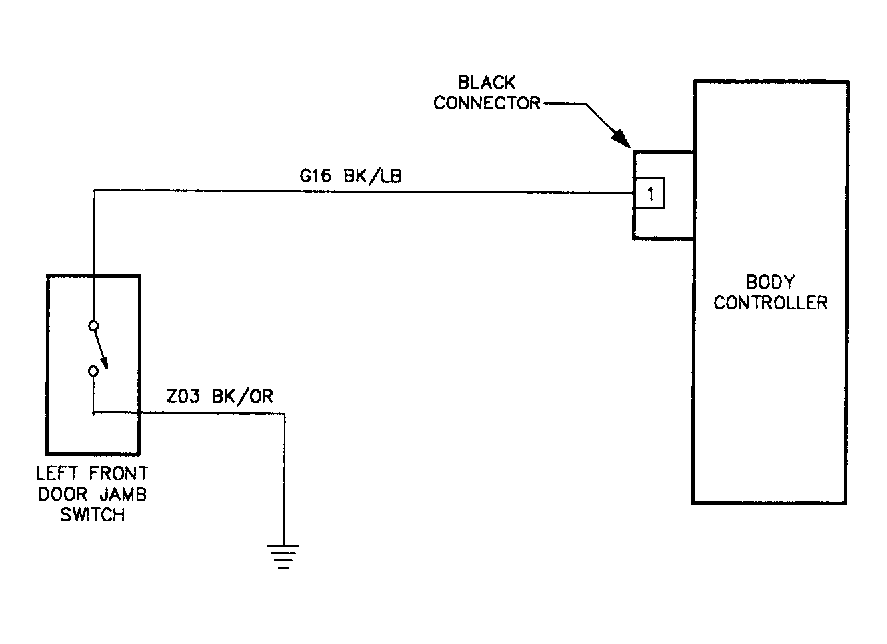

Fig 1: Test 32B: Circuit Diagram

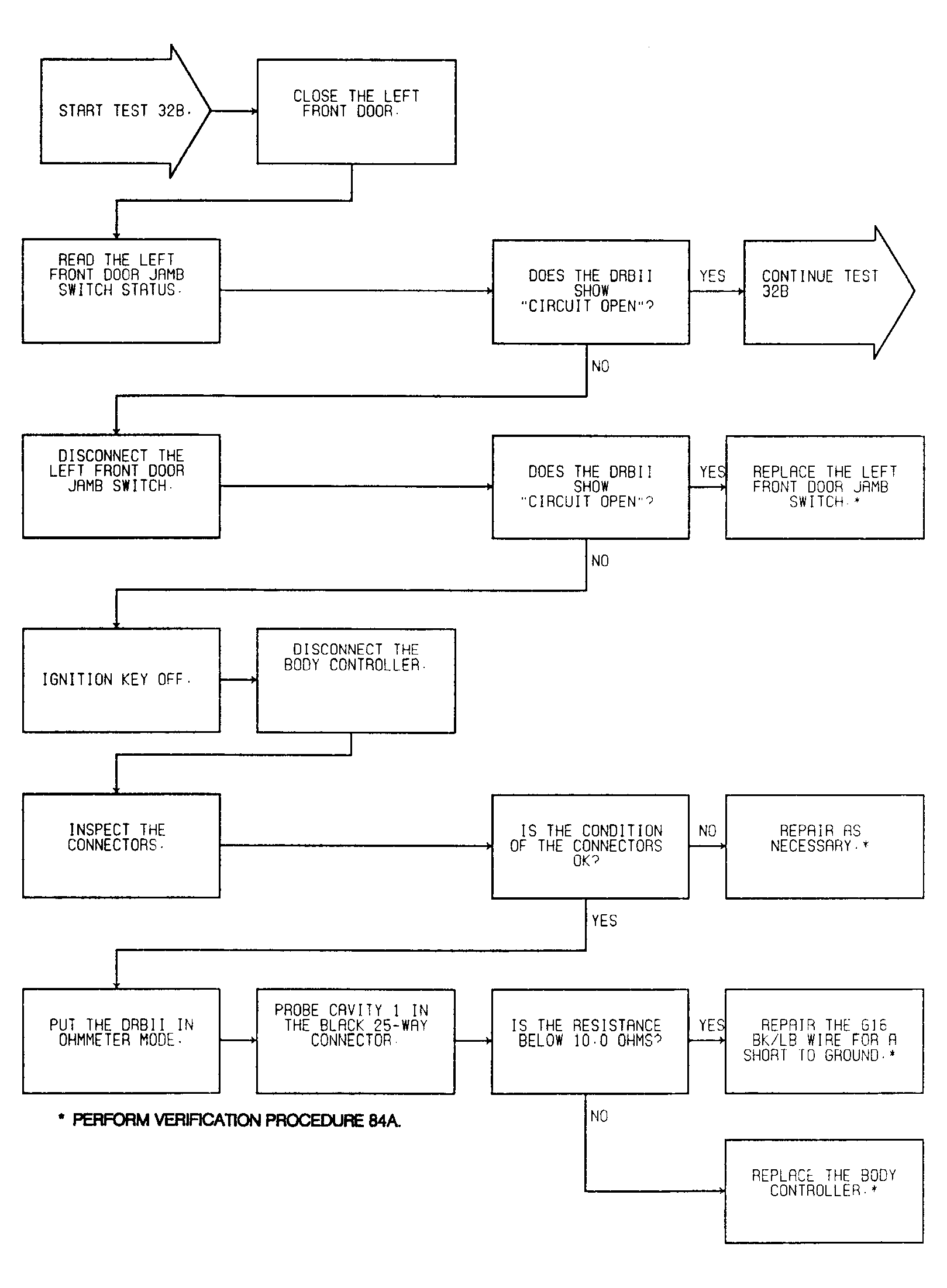

Fig 2: Test 32B: Repairing Cluster Power-Up Upon Entry (1 of 2)

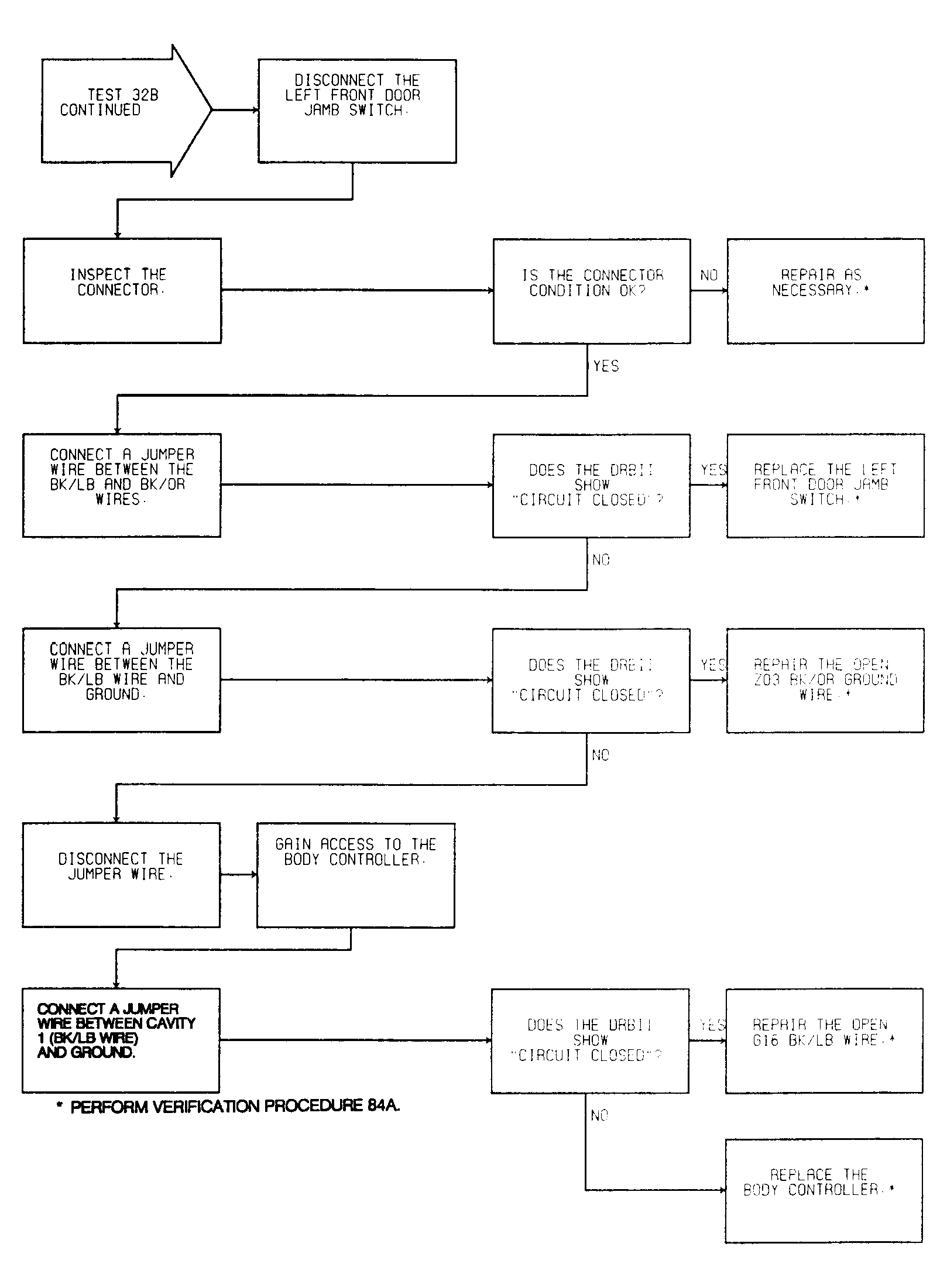

Fig 3: Test 32B: Repairing Cluster Power-Up Upon Entry (2 of 2)
