Test 52A: Blank DRB-II Message Screen

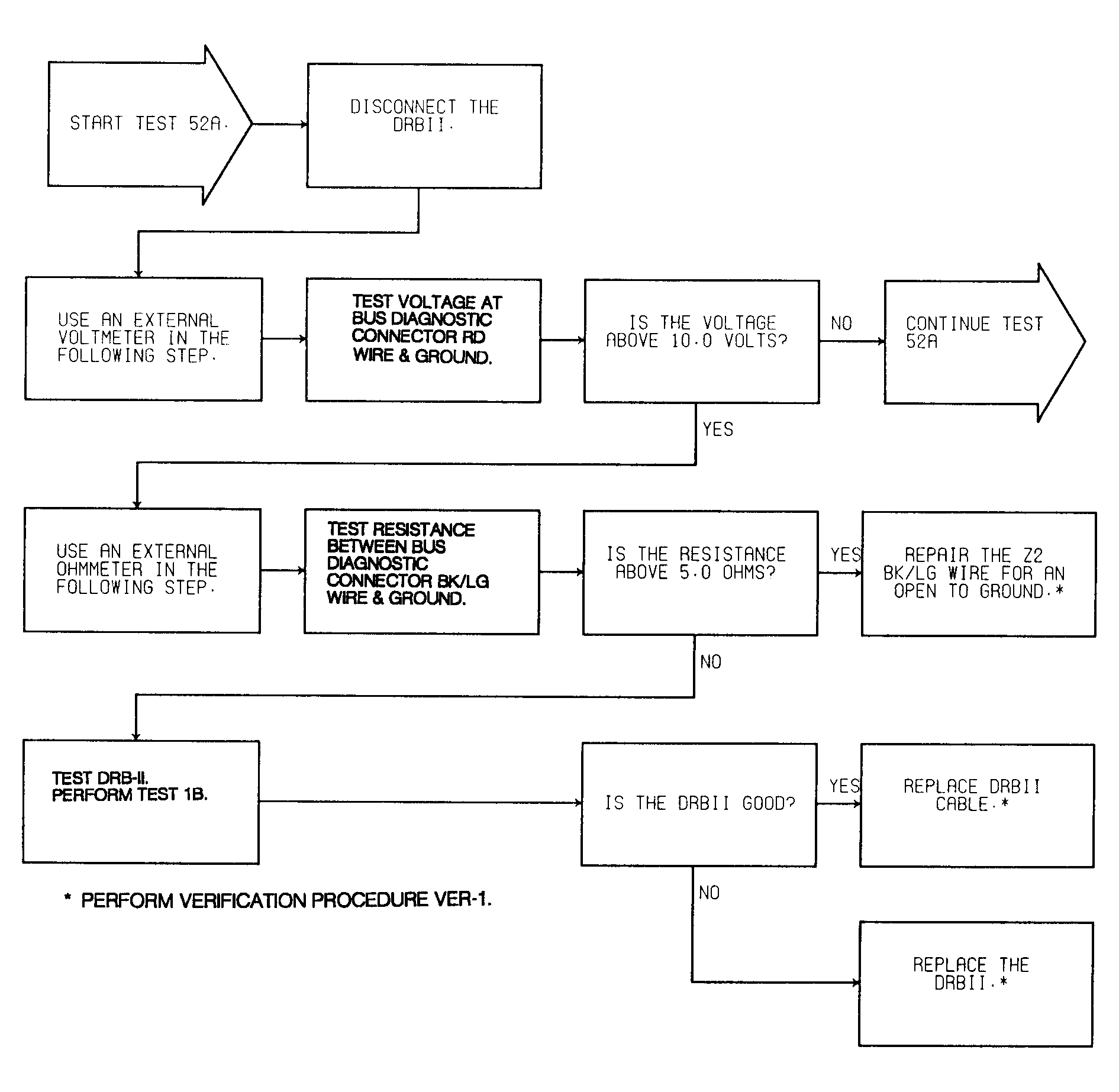

Fig 1: Test 52A: Blank DRB-II Message Screen (1 of 2)

G91H11715

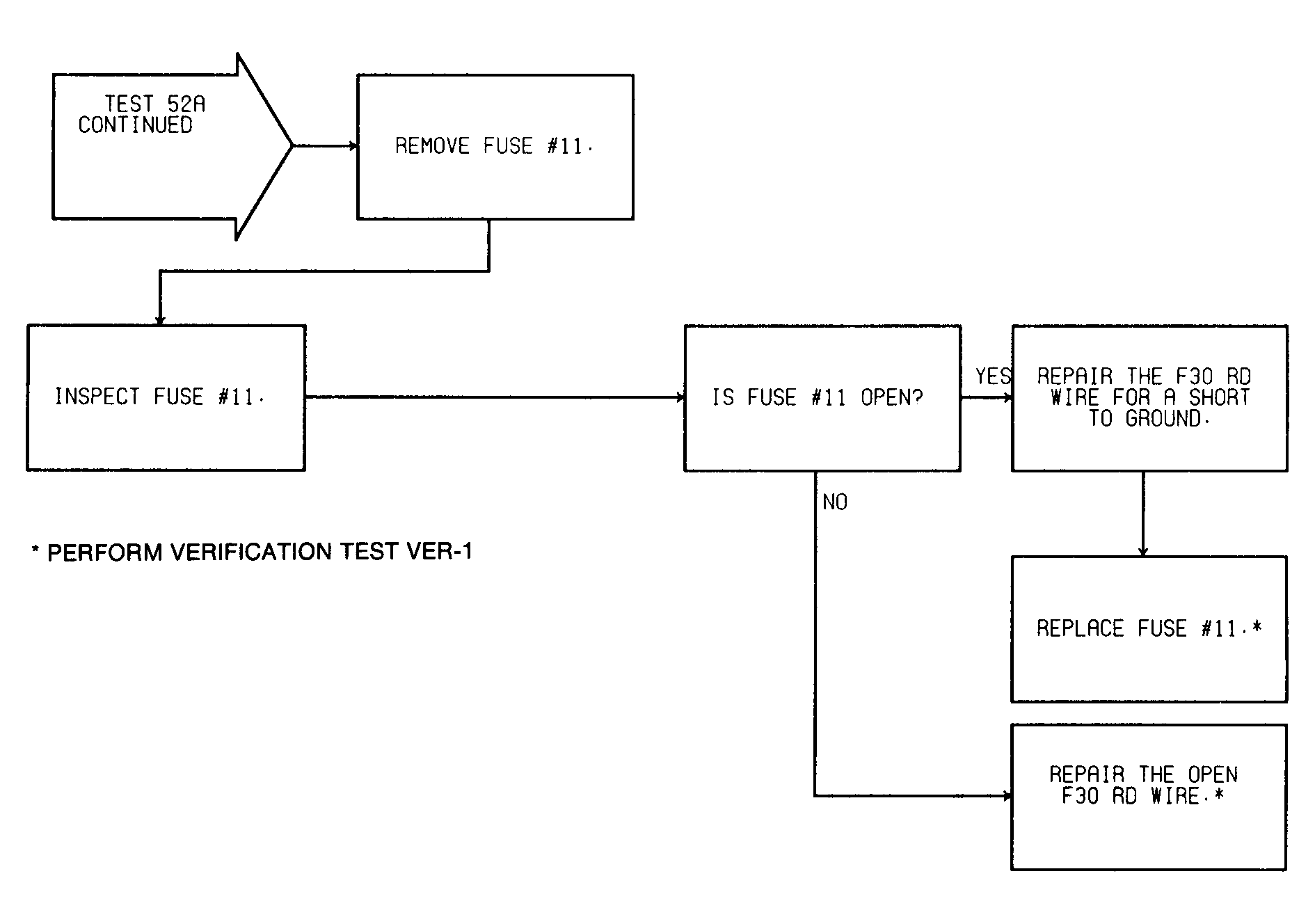

Fig 2: Test 52A: Blank DRB-II Message Screen (2 of 2)

G91I11716
