Test 82A: Repairing Faulty Fuel Level
Fig 1: Test 82A: Circuit Diagram

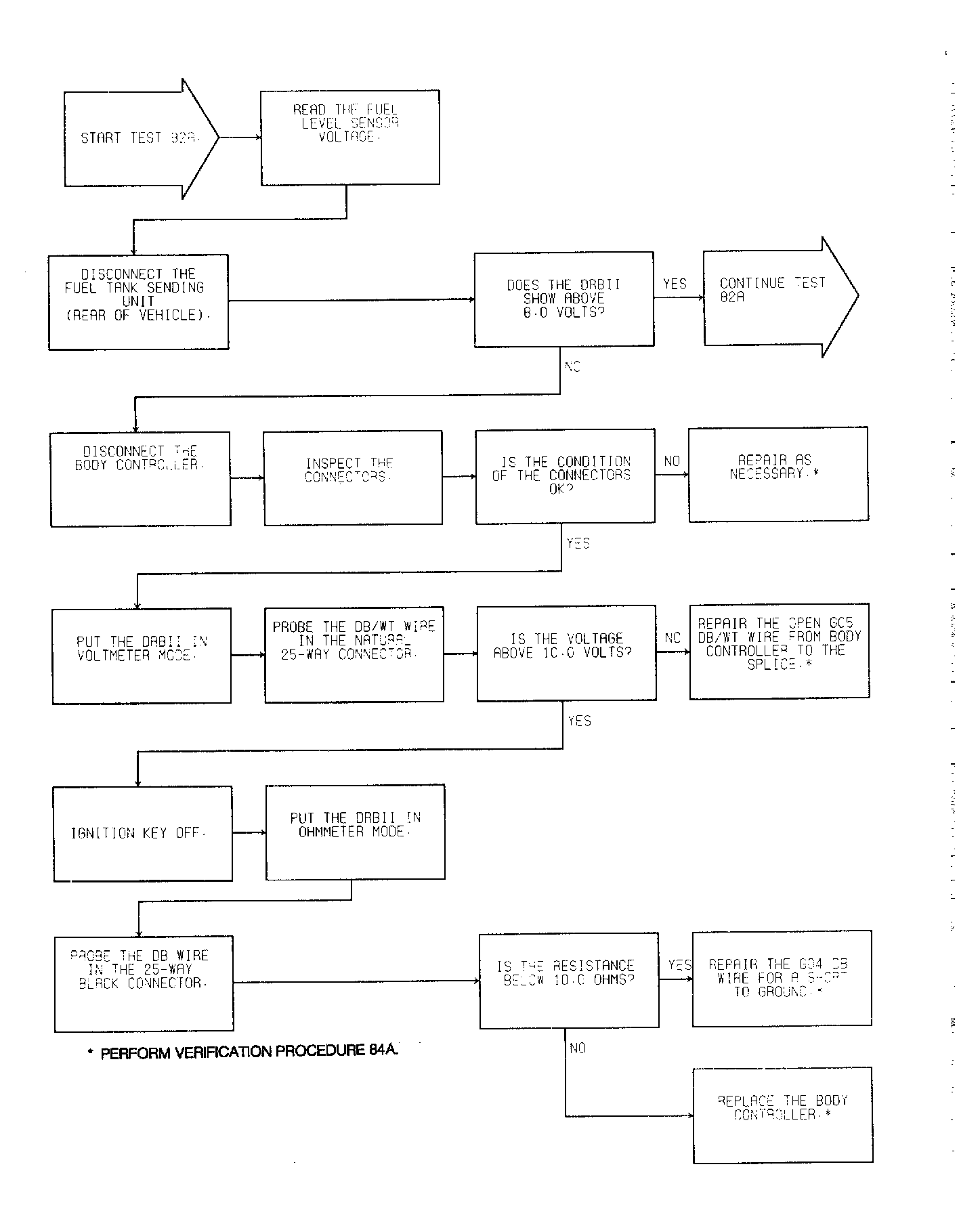

Fig 2: Test 82A: Repairing Faulty Fuel Level (1 of 2)

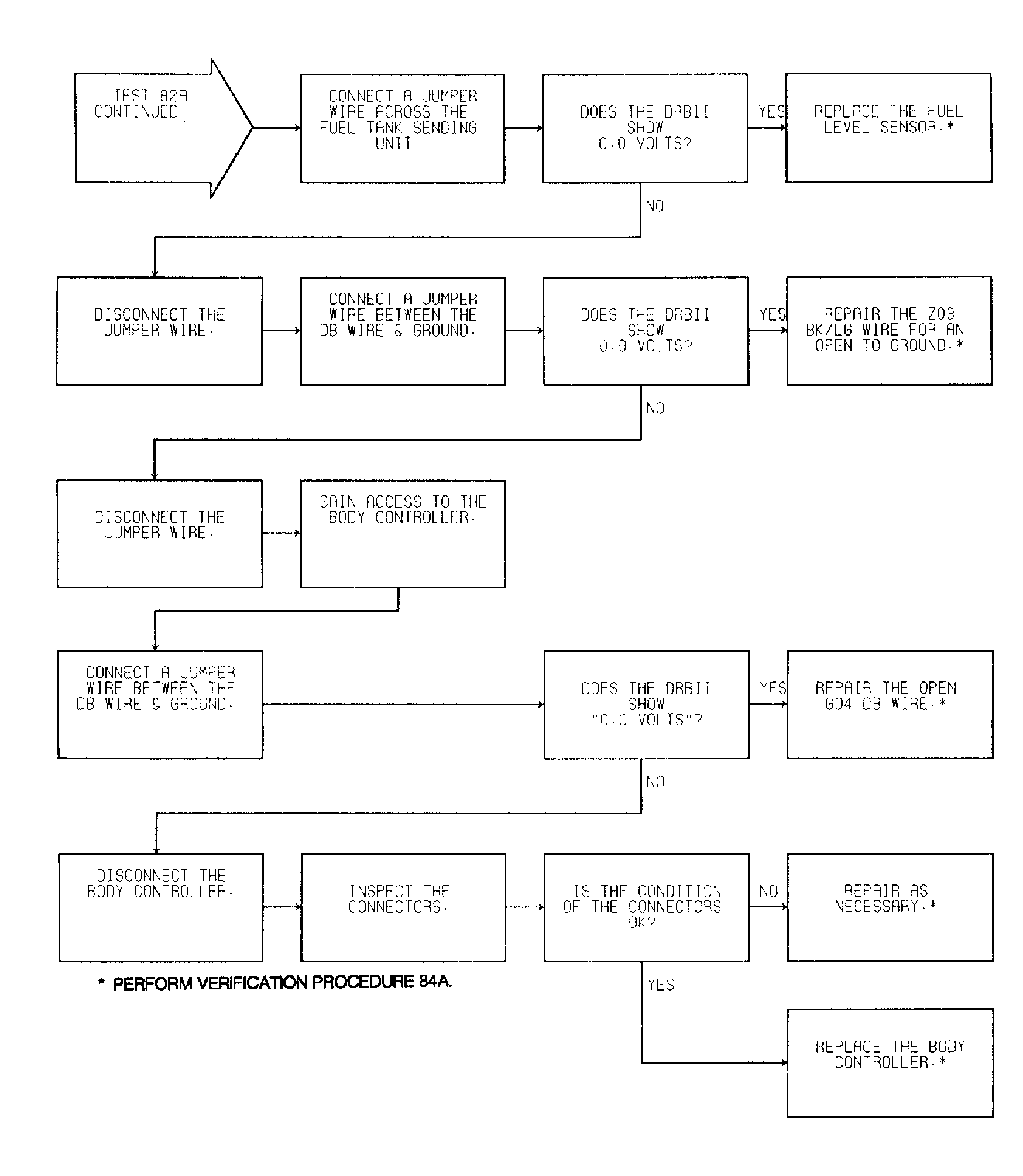

Fig 3: Test 82A: Repairing Faulty Fuel Level (2 of 2)
