Test 61A: Testing Pod Switch & Washer's Function

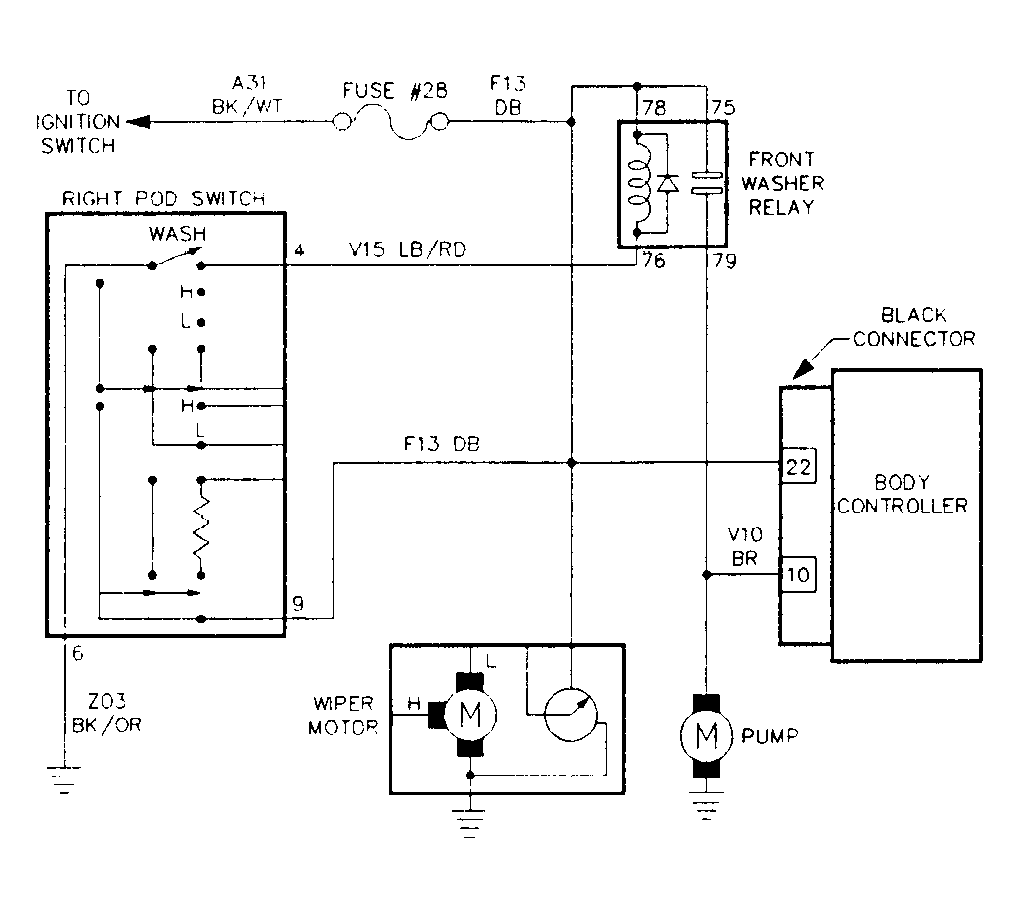

Fig 1: Test 61A: Circuit Diagram

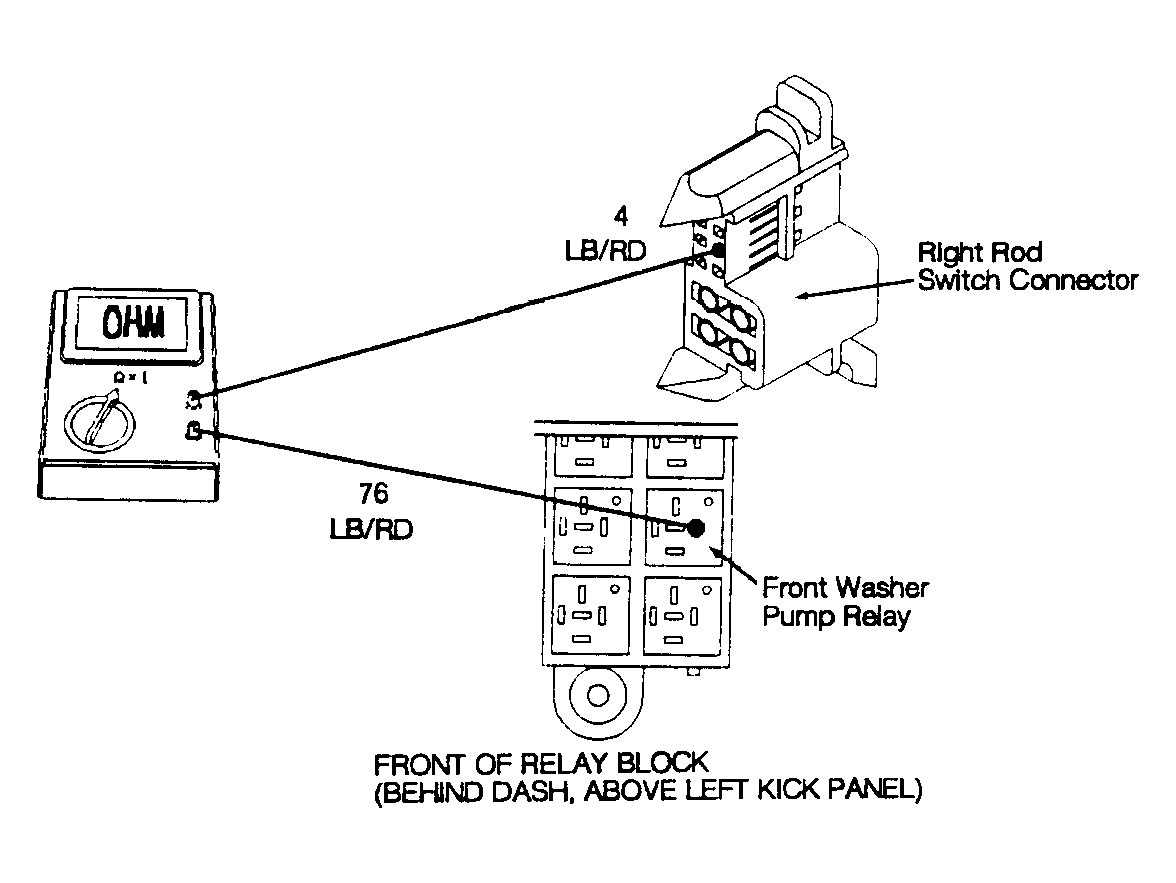

Fig 2: Test 61A: Relay Testing Locations

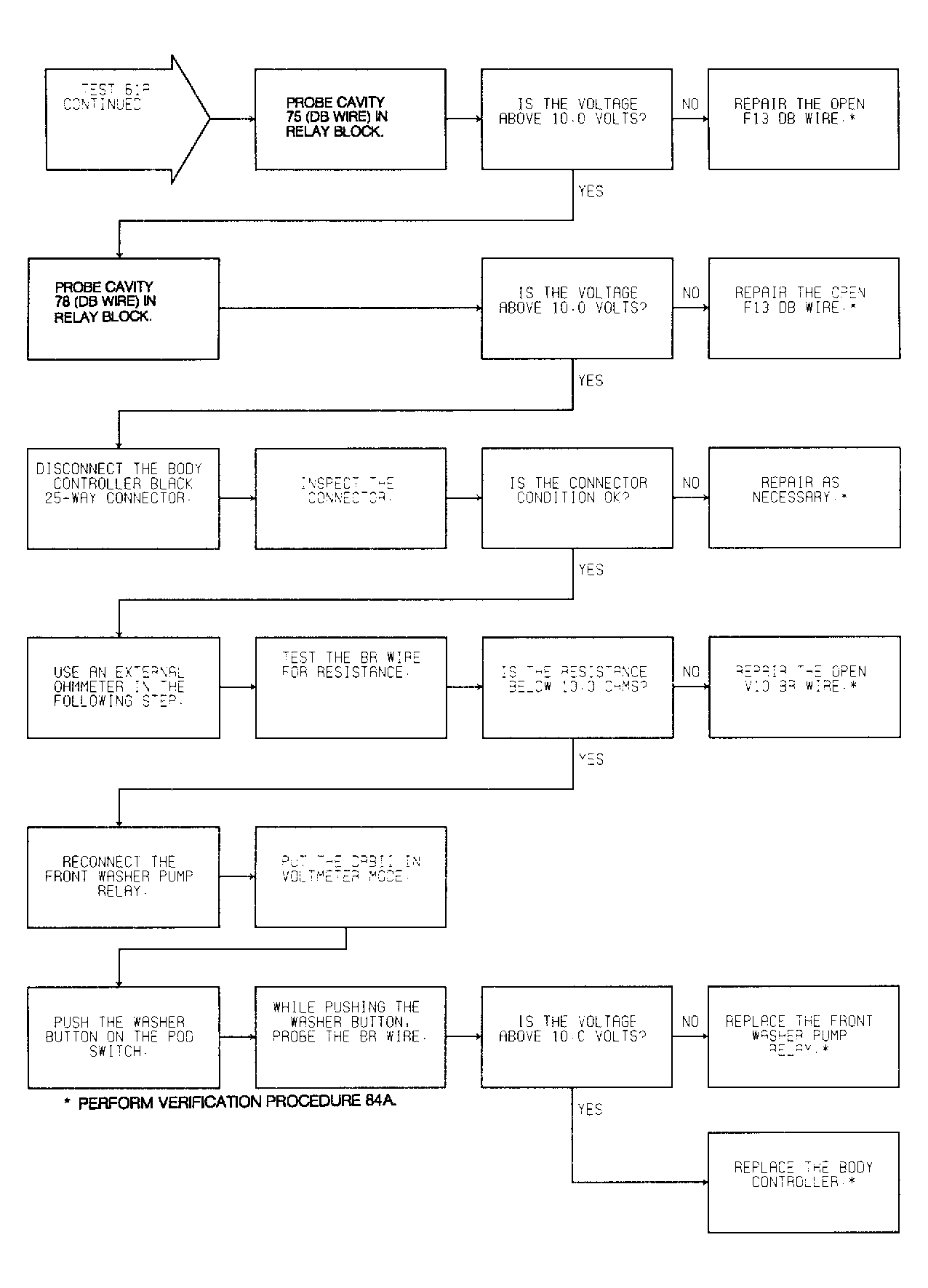

Fig 3: Test 61A: Testing Pod Switch & Washer's Function (1 of 2)

Fig 4: Test 61A: Testing Pod Switch & Washer's Function (2 of 2)
