Test 48A: Theft Alarm Module Power Door Unlock Switch

Fig 1: Test 48A: Circuit Diagram.

G91C11173

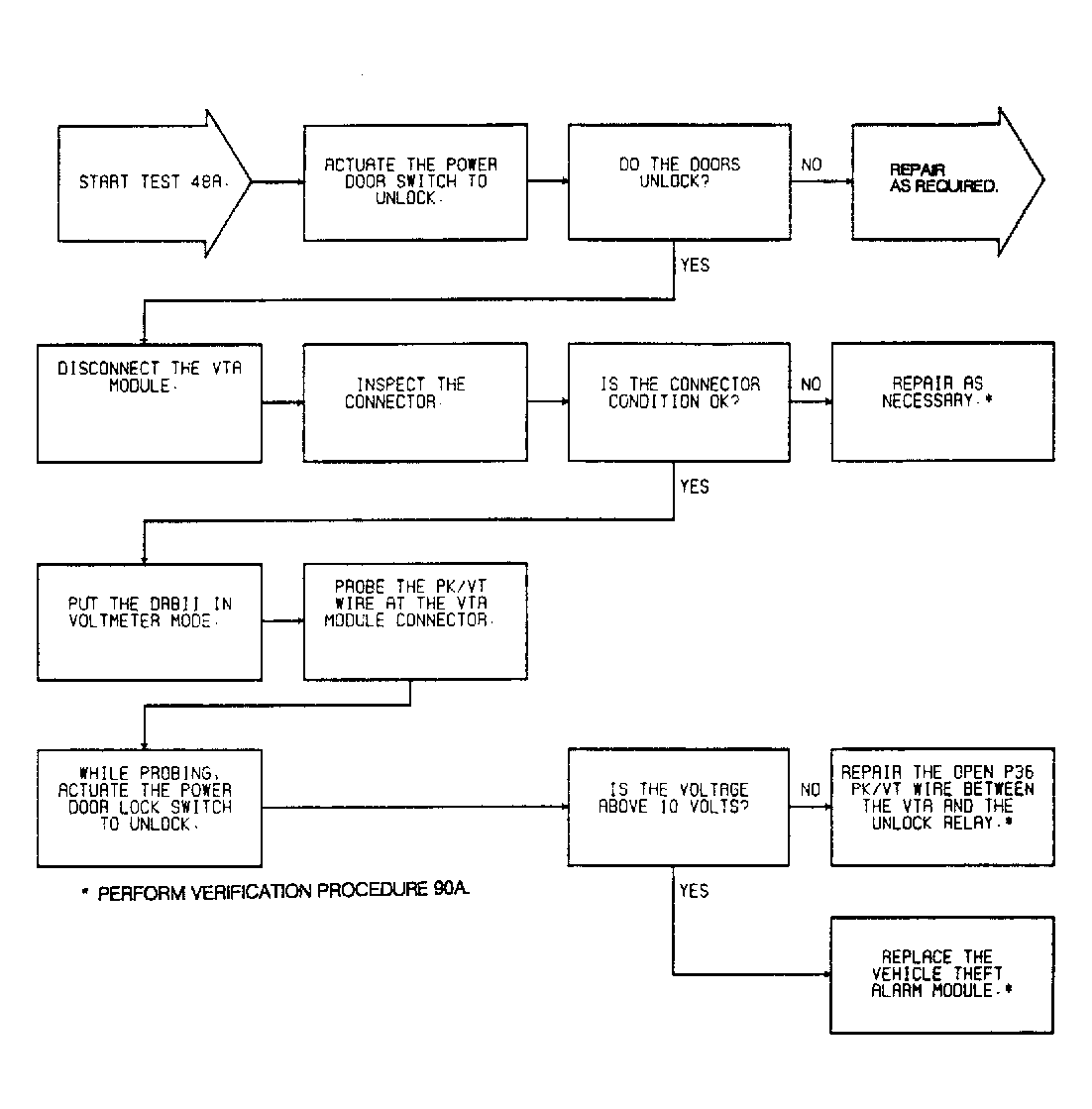

Fig 2: Test 48A: Theft Alarm Power Door Unlock Switch

G91D11380
