Test 44B: Theft Alarm Module Indicator Light Circuit

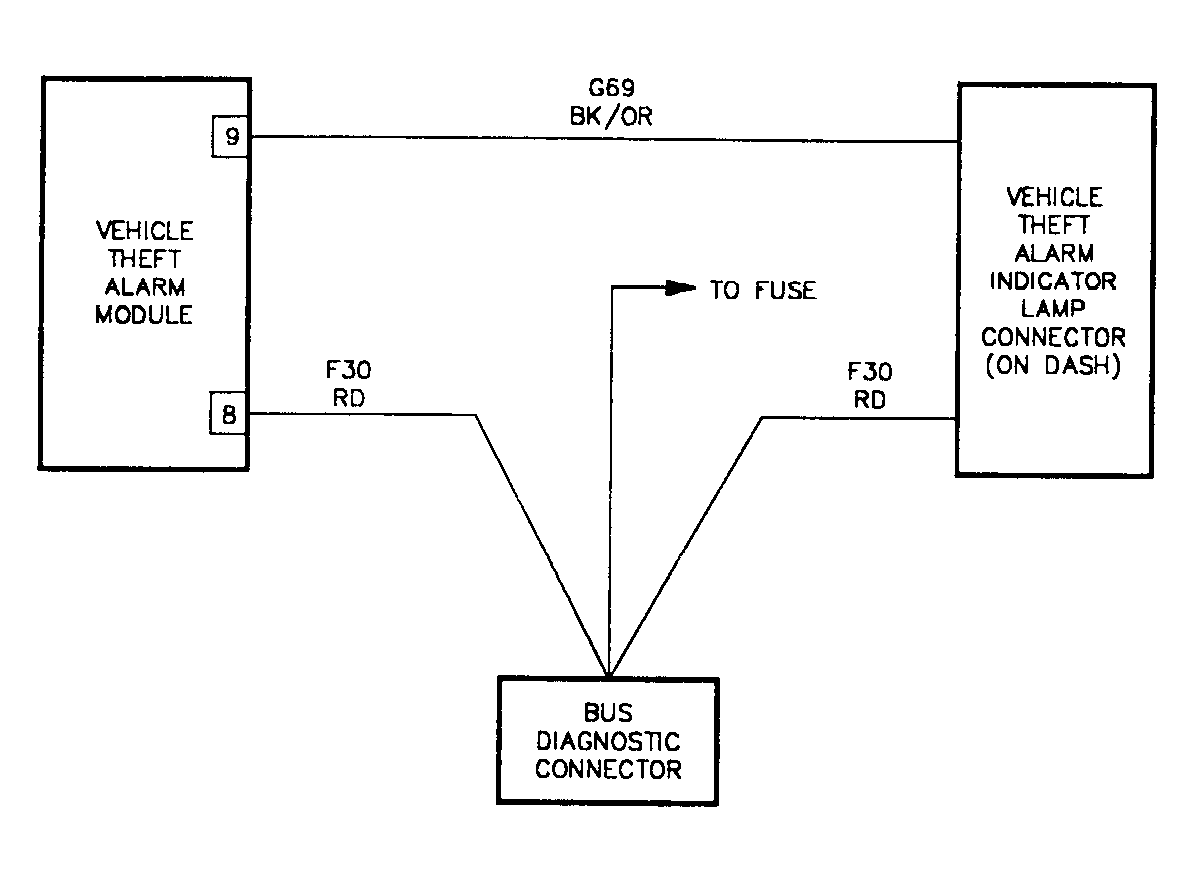

Fig 1: Test 44B: Circuit Diagram.

G91G11169

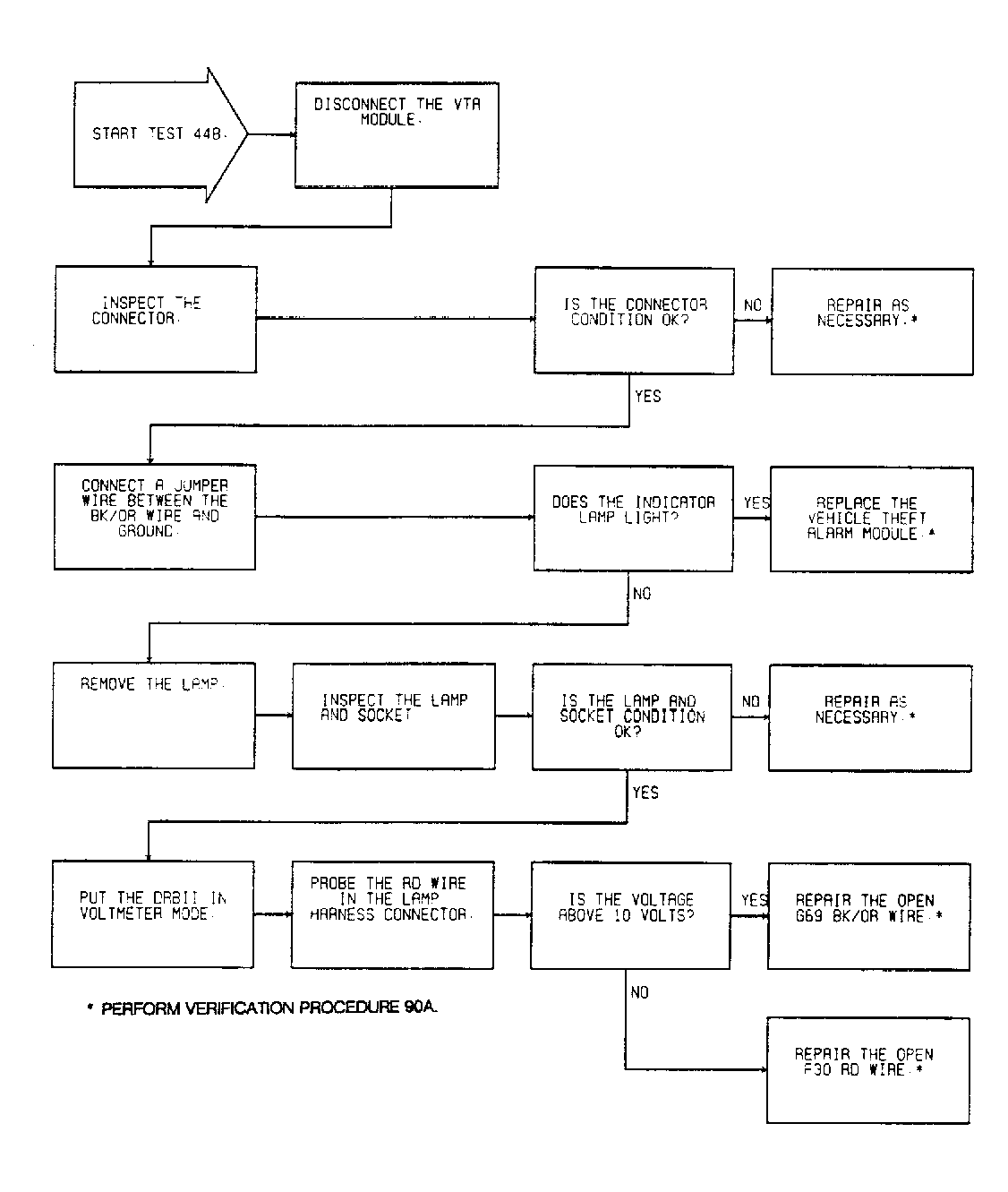

Fig 2: Test 44B: Theft Alarm Indicator Light Circuit

G91G11375
